CPU boards Parts

B&R

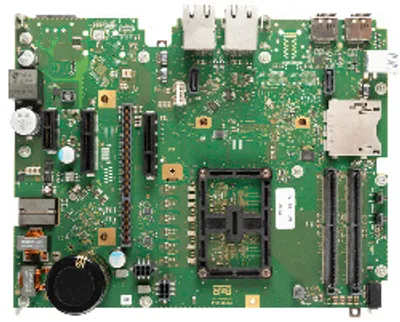

CPU board Intel Celeron 6600HLE, Dual core, HM570E chipset

B&R

CPU board Intel Core i5 11500HE, Hexa core, RM590E chipset

B&R

CPU board Intel Xeon 11155MRE, Quad core, RM590E chipset

B&R

CPU board Intel Core i3 11100HE, Quad core, RM590E chipset

B&R

CPU board Intel Xeon 11865MRE, Octa core, RM590E chipset

Compare CPU boards

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Processor – Type	Processor – Clock frequency	Processor – Total number of cores	Processor – Number of threads	Processor – Max. turbo frequency
5APC4100.TGL0-000	Intel Celeron 6600HLE	2100 MHz	2	2	-
5APC4100.TGL2-000	Intel Core i5-11500HE	2600 MHz	6	12	4500 MHz
5APC4100.TGL3-000	Intel Xeon W-11155MRE	2400 MHz	4	8	4400 MHz
5APC4100.TGL1-000	Intel Core i3-11100HE	2400 MHz	4	8	4400 MHz
5APC4100.TGL4-000	Intel Xeon W-11865MRE	2600 MHz	8	16	4700 MHz

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Processor – Architecture	10 nmSF
Processor – Intel 64 architecture	Yes
Processor – Intel Virtualization Technology (VT-x)	Yes
Processor – Intel Virtualization Technology for Directed I/O (VT-d)	Yes
