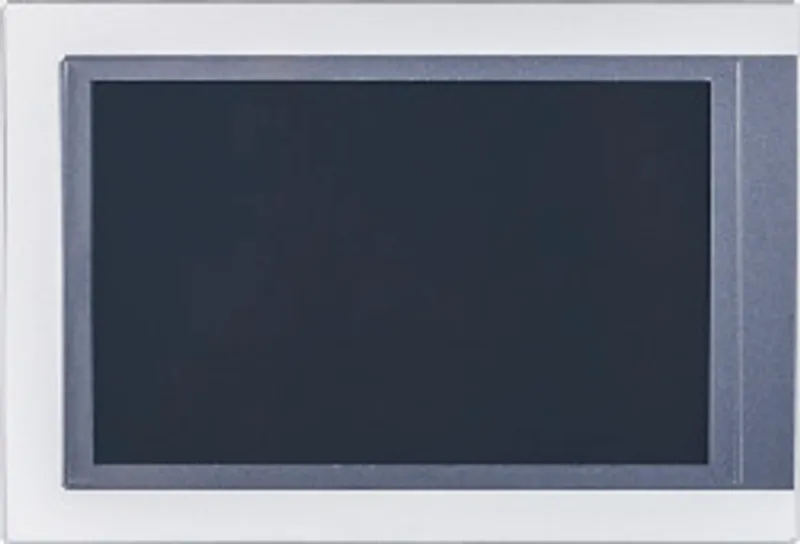

B&R 5AP1120.101E-000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panels |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1900 kg |
Shipping & availability
When can 5AP1120.101E-000 be shipped?
5AP1120.101E-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP1120.101E-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP1120.101E-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP1120.101E-000, subject to availability and destination.
Panel for AP1000, PPC2100, PPC2200 or PPC310010.1" TFT WXGA color displaySingle-touch (analog resistive)Control cabinet installation Automation Panel 10.1" WXGA TFT - 1280 x 800 pixels (16:10) - Single-touch (analog resistive) - Control cabinet installation - Landscape format - For PPC2100 / PPC3x00 / PPC2200 / link modules
Specifications
Specifications
| B&R ID code | 0xE93D |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cULus E115267 Industrial control equipment |
| HazLoc | cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD, T4 |
| Type | LED |
| Diagonal | 10.1" |
| Colors | 16.7 million |
| Resolution | WXGA, 1280 x 800 pixels |
| Contrast | 800:1 |
| Horizontal | Direction R = 85° / Direction L = 85° |
| Vertical | Direction U = 85° / Direction D = 85° |
| Brightness (dimmable) | Typ. 100 to 1000 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Analog, resistive |
| Controller | B&R, serial, 12-bit |
| Transmittance | 81% ±3% |
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65 Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
| Frame | Aluminum, coated |
| Material | Polyester |
| Light background color | RAL 9006 |
| Dark border color around display | RAL 7024 |
| Gasket | 3 mm fixed gasket |
| Width | 279 mm |
| Height | 191 mm |
| Weight | 1900 g |
