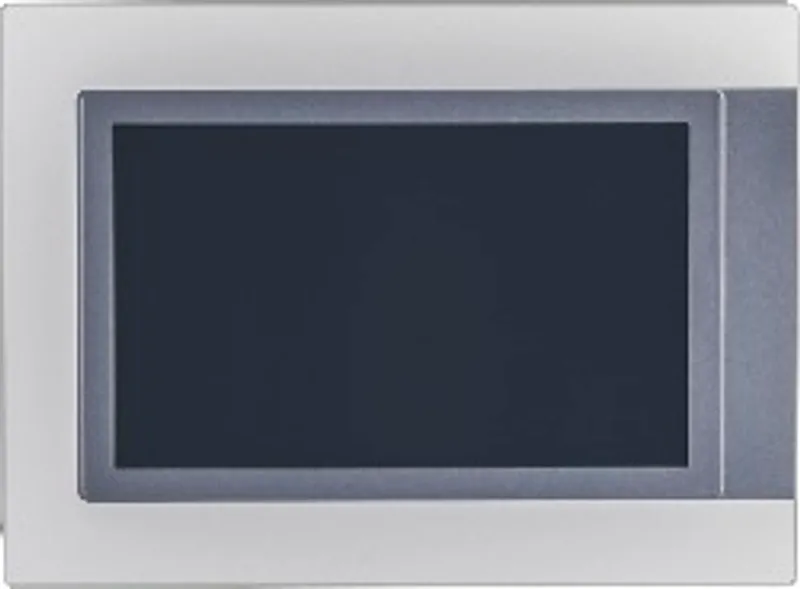

B&R 5AP1120.0702-000
Panel for AP1000, PPC2100 or PPC2200; 7.0" TFT WVGA color display; Single-touch (analog resistive)
- MPN
- 5AP1120.0702-000
- Category
- Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP1120.0702-000?
Panel for AP1000, PPC2100 or PPC2200
7.0" TFT WVGA color display
Single-touch (analog resistive)
Control cabinet installation
Automation Panel 7" WVGA TFT - 800 x 480 pixels (16:10) - Single-touch (analog resistive) - Control cabinet installation - Landscape format - For PPC2x00 / link modules - Compatible with 5PP520.0702-00
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| B&R ID code | 0xE7AC |
Display
| Viewing angles – Horizontal | Direction R = 70° / Direction L = 70° |
| Viewing angles – Vertical | Direction U = 50° / Direction D = 60° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 80 to 500 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Technology | Analog, resistive (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Controller | B&R, serial, 12-bit (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Transmittance | 81% ±3% (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Type | TFT color |
| Diagonal | 7.0" |
| Colors | 16.7 million |
| Resolution | WVGA, 800 x 480 pixels |
| Contrast | 550:1 |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65; Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Mechanical properties
| Front – Material | Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Light background color | RAL 9006 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Dark border color around display | RAL 7024 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Frame | Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Gasket | 3 mm fixed gasket (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 212 mm |
| Dimensions – Height | 156 mm |
| Weight | 900 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AP1120.0702-000: frequently asked questions
When can 5AP1120.0702-000 be shipped?
5AP1120.0702-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AP1120.0702-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AP1120.0702-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AP1120.0702-000, subject to availability and destination.
