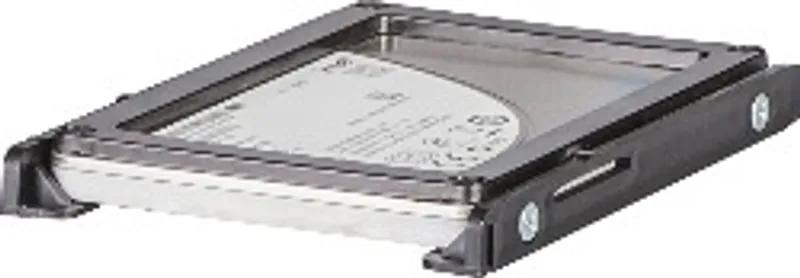

What is the B&R 5AC901.CSSD-02?
180 GB solid-state drive
MLC flash memory
S.M.A.R.T. support
Slide-in compact
Compatible with SATA 3.0
This 180 GB slide-in compact solid-state drive (SSD) is based on multi-level cell (MLC) technology and is SATA 3.0 compatible. The slide-in compact drive can be used in APC910 system units.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – CCS | Yes |
| Certifications – ABS | Yes |
Solid-state drive
| IOPS – Typical | 60,000 (note: IOPS: Random read and write input/output operations per second) |
| IOPS – Maximum | 80,000 (note: IOPS: Random read and write input/output operations per second) |
| IOPS – 4k read | 50,000 (note: IOPS: Random read and write input/output operations per second) |
| Capacity | 180 GB |
| Data reliability | <1 unrecoverable error per 10 16 bits read |
| MTBF | 1,200,000 hours |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Servicing | None |
| Continuous reading | Max. 550 MB/s, with SATA 6 Gbit/s; Max. 280 MB/s, with SATA 3 Gbit/s |
| Continuous writing | Max. 520 MB/s, with SATA 6 Gbit/s; Max. 260 MB/s, with SATA 3 Gbit/s |
Endurance
| MLC flash memory | Yes |
| Compatibility | SATA 3.0 compliant; ACS-2; SSD Enhanced SMART ATA feature set; Native Command Queuing (NCQ) |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | 0 to 70°C |
| Temperature – Storage | -55 to 95°C |
| Temperature – Transport | -55 to 95°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 5 to 700 Hz: 2.17 g |
| Vibration – Storage | 5 to 800 Hz: 3.13 g |
| Vibration – Transport | 5 to 800 Hz: 3.13 g |
| Shock – Operation | 1500 g, 0.5 ms |
| Shock – Storage | 1500 g, 0.5 ms |
| Shock – Transport | 1500 g, 0.5 ms |
| Elevation – Operation | -300 to 12,192 m |
| Elevation – Storage | -300 to 12,192 m |
| Elevation – Transport | -300 to 12,192 m |
Mechanical properties
| Dimensions – Width | 13 mm |
| Dimensions – Height | 98 mm |
| Dimensions – Depth | 105 mm |
| Installation | Permanent (note: Slide-in compact installation.) |
| Weight | 118 g |
Vendor information
| Manufacturer | Intel |
| Manufacturer's product ID | SSDSC2CW180A3 |
Accessories
Optional accessories (1)
| 5MMSSD.0180-00 | Drives — Replacement for 5AC801.SSDI-02 or 5AC901.CSSD-02 SSD drives; Accessory for the APC510 (optional SSD for I/O board) This 180 GB solid-state… |
