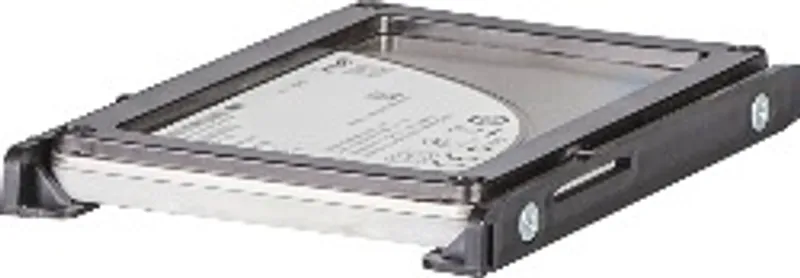

What is the B&R 5AC901.CSSD-00?
32 GB solid-state drive
SLC flash memory
S.M.A.R.T. support
Slide-in compact
SATA 2.6 compatible
This 32 GB slide-in compact solid-state drive (SSD) is based on single-level cell (SLC) technology and is SATA 2.6 compatible. The slide-in compact drive can be used in APC910 system units.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – CCS | Yes |
| Certifications – ABS | Yes |
Solid-state drive
| IOPS – 4k read | 45,000 (note: IOPS: Random read and write input/output operations per second) |
| IOPS – 4k write | 5,500 (note: IOPS: Random read and write input/output operations per second) |
| Capacity | 32 GB |
| Data reliability | <1 unrecoverable error per 10 16 bits read |
| MTBF | 2,000,000 hours |
| Power-on cycles | 50,000 |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Servicing | None |
| Continuous reading | Max. 250 MB/s |
| Continuous writing | Max. 195 MB/s |
Endurance
| Guaranteed data volume – Guaranteed | 700 TB |
| Guaranteed data volume – Results for 5 years | 350 GB/day |
| SLC flash memory | Yes |
| Wear leveling | Static |
| Error-correcting code (ECC) | Yes |
| Compatibility | SATA revision 2.6 compliant, compatible with SATA 1.5 Gbit/s and 3 Gbit/s interface rates; ATA/ATAPI-7; SSD Enhanced SMART ATA feature set; Native Command Queuing (NCQ) |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | 0 to 70°C |
| Temperature – Storage | -55 to 95°C |
| Temperature – Transport | -55 to 95°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 5 to 700 Hz: 2.17 g |
| Vibration – Storage | 5 to 800 Hz: 3.13 g |
| Vibration – Transport | 5 to 800 Hz: 3.13 g |
| Shock – Operation | 1500 g, 0.5 ms |
| Shock – Storage | 1500 g, 0.5 ms |
| Shock – Transport | 1500 g, 0.5 ms |
| Elevation – Operation | -300 to 12,192 m |
| Elevation – Storage | -300 to 12,192 m |
| Elevation – Transport | -300 to 12,192 m |
Mechanical properties
| Dimensions – Width | 13 mm |
| Dimensions – Height | 98 mm |
| Dimensions – Depth | 105 mm |
| Installation | Permanent (note: Slide-in compact installation.) |
| Weight | 118 g |
Vendor information
| Manufacturer | Intel |
| Manufacturer's product ID | SSDSA2SH032G201 |
