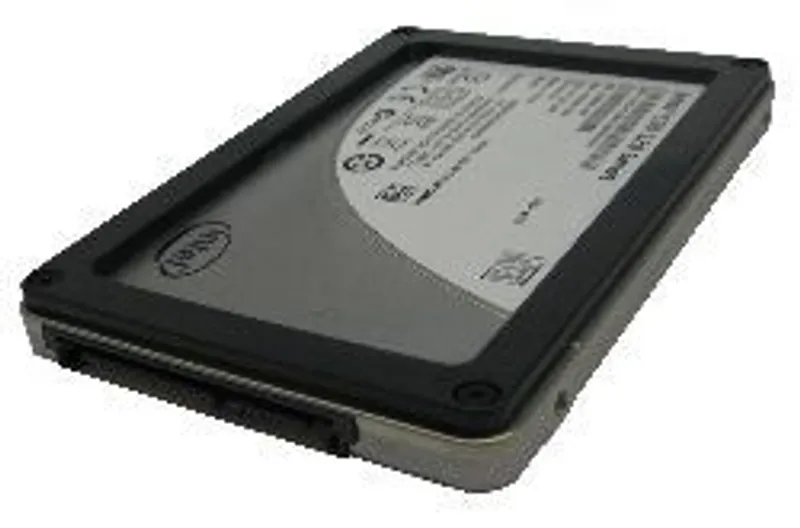

B&R 5MMSSD.0180-00
Replacement for 5AC801.SSDI-02 or 5AC901.CSSD-02 SSD drives
- MPN
- 5MMSSD.0180-00
- Category
- Drives
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5MMSSD.0180-00?
Replacement for 5AC801.SSDI-02 or 5AC901.CSSD-02 SSD drives
Accessory for the APC510 (optional SSD for I/O board)
This 180 GB solid-state drive (SSD) drive can be used as a replacement part or accessory. The SSD is based on Multi Level Cell (MLC) technology.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
Solid-state drive
| IOPS – Typical | 60,000 (note: IOPS: Random read and write input/output operations per second) |
| IOPS – Maximum | 80,000 (note: IOPS: Random read and write input/output operations per second) |
| IOPS – 4k read | 50,000 (note: IOPS: Random read and write input/output operations per second) |
| Capacity | 180 GB |
| Data reliability | <1 unrecoverable error per 10 16 bits read |
| MTBF | 1,200,000 hours |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Servicing | None |
| Continuous reading | Max. 550 MB/s, with SATA 6 Gbit/s; Max. 280 MB/s, with SATA 3 Gbit/s |
| Continuous writing | Max. 520 MB/s, with SATA 6 Gbit/s; Max. 260 MB/s, with SATA 3 Gbit/s |
Endurance
| MLC flash memory | Yes |
| Compatibility | SATA 3.0 compliant; ACS-2; SSD Enhanced SMART ATA feature set; Native Command Queuing (NCQ) |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | 0 to 70°C |
| Temperature – Storage | -55 to 95°C |
| Temperature – Transport | -55 to 95°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 5 to 700 Hz: 2.17 g |
| Vibration – Storage | 5 to 800 Hz: 3.13 g |
| Vibration – Transport | 5 to 800 Hz: 3.13 g |
| Shock – Operation | 1500 g, 0.5 ms |
| Shock – Storage | 1500 g, 0.5 ms |
| Shock – Transport | 1500 g, 0.5 ms |
| Elevation – Operation | -300 to 12,192 m |
| Elevation – Storage | -300 to 12,192 m |
| Elevation – Transport | -300 to 12,192 m |
Mechanical properties
| Dimensions – Width | 9.5 mm |
| Dimensions – Height | 69 mm |
| Dimensions – Depth | 100 mm |
| Weight | 78 g |
Vendor information
| Manufacturer | Intel |
| Manufacturer's product ID | SSDSC2CW180A3 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5MMSSD.0180-00: frequently asked questions
When can 5MMSSD.0180-00 be shipped?
5MMSSD.0180-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5MMSSD.0180-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5MMSSD.0180-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5MMSSD.0180-00, subject to availability and destination.
