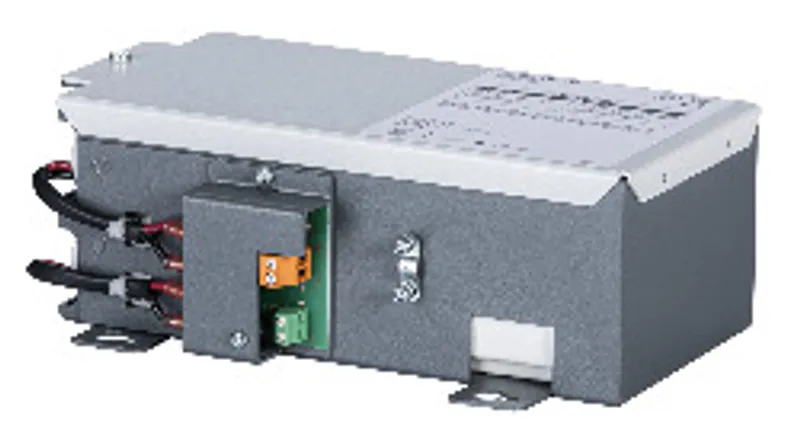

B&R 5AC901.BUPS-00

Battery unit for UPS IF option 5AC901.IUPS-00

MPN: 5AC901.BUPS-00
Category: Uninterruptible power supply

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5AC901.BUPS-00?

Battery unit for UPS IF option 5AC901.IUPS-00

Single-cell rechargeable battery

2 Hawker Cyclon 12 V, 4.5 Ah rechargeable batteries connected in series

Rated voltage 24 V

Capacity 4.5 Ah

Battery unit 4.5 Ah - For UPS 5AC901.IUPS-00

Specifications

General information

Battery – Type	Hawker Cyclon 12 V, 4.5 Ah, two rechargeable batteries connected in series
Battery – Service life	Up to 15 years at 20°C / 10 years at 25°C (note: Depends on the charging and discharging cycles (up to 80% battery capacity).)
Battery – Variant	Single cell (VRLA)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
B&R ID code	0xD82E
Temperature sensor	NTC resistance
Service interval during storage	Charge 1 time every 6 months
Charge duration when battery low	Typ. 7 hours

Electrical properties

Battery charging data – Charging current	Typ. 1 A (note: Maximum charging current.)
Nominal voltage	24 V
Capacity	4.5 Ah
Fuse	Yes

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	-30 to 60°C (note: Battery backing is no longer provided if the temperature undershoots the minimum temperature or overshoots the maximum temperature. The battery is also no longer charged since this can result in damage to the battery.)
Temperature – StorageDischarge time and ambient temperature diagram" in the user documentation.">	-65 to 65°C (note: See also)
Temperature – TransportDischarge time and ambient temperature diagram" in the user documentation.">	-65 to 65°C (note: See also)
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
Elevation – Operation	Max. 3000 m

Mechanical properties

Housing – Material	Rev. D0 and later: Steel, galvanized and coated; Up to Rev. C0: Steel, galvanized
Dimensions – Width	223.2 mm
Dimensions – Height	78.2 mm
Dimensions – Depth	145 mm
Weight	Approx. 4600 g

Accessories

Required accessories (order separately)

5CAUPS.0030-01	Uninterruptible power supplies — The UPS connection cable, which is 3 m long, establishes the connection between the UPS interface option and the battery unit.
5CAUPS.0010-01	Uninterruptible power supplies — The UPS connection cable, which is 1 m long, establishes the connection between the UPS interface option and the battery unit.
5CAUPS.0005-01	Uninterruptible power supplies — The UPS connection cable, which is 0.5 m long, establishes the connection between the UPS interface option and the battery unit.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 5AC901.BUPS-00ZIP · 225 KB · 1.00 (10/22/2013)
