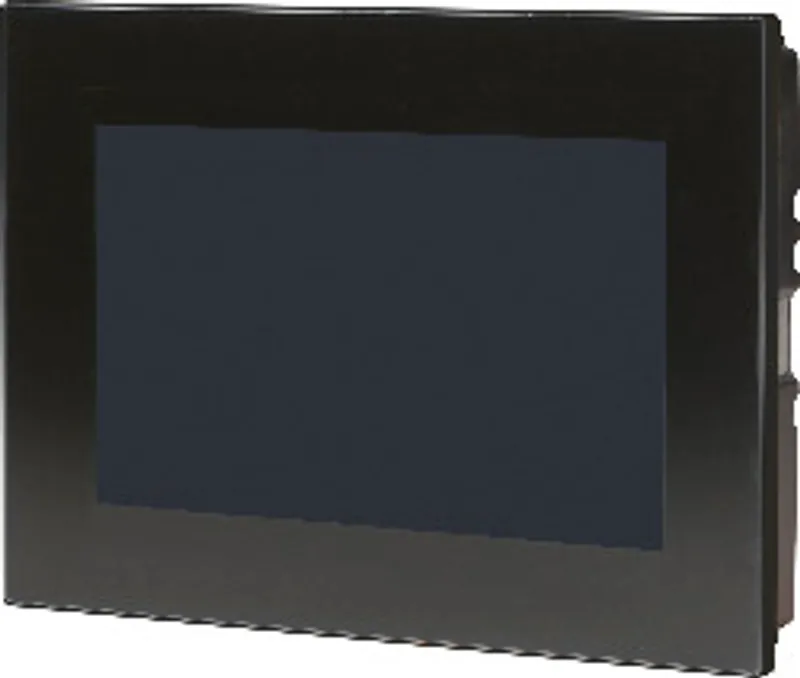

B&R 4PPC50.0702-11A
Power Panel C50, 7.0", glass front (anti-glare)
- MPN
- 4PPC50.0702-11A
- Category
- Power Panel C50
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 4PPC50.0702-11A?
Power Panel C50, 7.0", glass front (anti-glare), controller with mapp View HMI unit, fieldbus interfaces: 2x CAN bus. CPU and memory of the controller: 766 MHz (ARM Cortex-A9), 512 MB DRAM, 64 kB FRAM, 2 GB onboard flash drive. CPU and memory of the terminal: 800 MHz (ARM Cortex-A9), 1 GB DRAM. Display and touch screen: 7.0", 800 x 480 (WVGA) resolution, projected capacitive touch screen, multi-touch support, anti-glare glass front with black frame, landscape and portrait format configurable with software. Interfaces: 1x POWERLINK, 1x Ethernet 10/100 Mbit/s, 1x X2X Link, 2x USB 2.0, 2x CAN bus.
Specifications
General information
| System requirements – Automation Studio | 4.7.3 |
| System requirements – Automation Runtime | 4.73 |
| Support – mapp View | Yes (note: Due to the performance of the Power Panel, the following widget classes are fully supported: A, B.) |
| Support – Controller redundancy | No |
| Support – ACOPOS support | Yes |
| Support – Visual Components support | Yes (note: Requirements: - Controller supports VC4/VNC server starting with hardware upgrade 1.1.6.0. - Terminal operation as VNC client for VC4/VNC server is supported starting with terminal OS 1.1.2.) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xF5E2 |
| Cooling | Passive |
| Power button | No |
| Reset button | Yes |
| Status indicators | Operating state, license violation, overtemperature shutdown, interface status |
| Buzzer | Yes |
Controller
| Processor – Data code | 32 kB |
| Processor – Program code | 32 kB |
| Processor – Type | ARM Cortex-A9 |
| Processor – Clock frequency | 2x 766 MHz |
| Processor – L2 cache | 512 kB |
| Application memory – Guaranteed | 40 TB |
| Application memory – Results for 5 years | 21.9 GB/day |
| Application memory – Type | 2 GB eMMC flash memory |
| Application memory – Data retention | 10 years |
| Application memory – Guaranteed erase/write cycles | 20,000 |
| Application memory – Error-correcting code (ECC) | Yes |
| Application memory – Storage health data support | Yes, AR 4.90 and later |
| Real-time clock | Nonvolatile, resolution 1 s, -25 to 37 ppm accuracy at 25°C (note: The real-time clock is backed up for approx. 1000 hours @ 25°C by a gold foil capacitor. The gold foil capacitor is completely charged after 3 continuous hours of operation.) |
| Floating point unit (FPU) | Yes |
| Mode/Node switches | No |
| Remanent variables | 64 kB FRAM, retention >10 years (note: The memory size for remanent variables is configurable in Automation Studio.) |
| DRAM | 512 MB |
| Shortest task class cycle time | 0.4 ms |
| Typical instruction cycle time | 0.01 µs |
| Temperature cutoff | Yes |
Terminal
| Processor – Data code | 32 kB |
| Processor – Program code | 32 kB |
| Processor – Type | ARM Cortex-A9 |
| Processor – Clock frequency | 2x 800 MHz |
| Processor – L2 cache | 512 kB |
| Application memory – Guaranteed | 40 TB |
| Application memory – Results for 5 years | 21.9 GB/day |
| Application memory – Type | 2 GB eMMC flash memory |
| Application memory – Data retention | 10 years |
| Application memory – Guaranteed erase/write cycles | 20,000 |
| Application memory – Error-correcting code (ECC) | Yes |
| DRAM | 1 GB |
Display
| Viewing angles – Horizontal | Direction L / Direction R = Typ. 70° |
| Viewing angles – Vertical | Rev. ≥ H3: Direction U / Direction D = Typ. 50°; Rev. < H3: Direction U / Direction D = Typ. 60° |
| Backlight – Type | LED |
| Backlight – Brightness | Typ. 500 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can typically increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | Multi-touch |
| Touch screen – Technology | PCT (projected capacitive touch) |
| Touch screen – Surface | Glass, chemically hardened (6H), anti-glare |
| Type | TFT color |
| Diagonal | 7.0" |
| Colors | 16.7 million (RGB, 8 bits per channel) |
| Resolution | WVGA, 800 x 480 pixels |
| Contrast | Rev. ≥ H3: Typ. 550:1; Rev. < H3: Typ. 600:1 |
| Screen rotation | Yes |
Interfaces
| Interface IF1 – Physical layer | 100BASE-TX |
| Interface IF1 – Half-duplex | Yes |
| Interface IF1 – Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
| Interface IF1 – Autonegotiation | Yes |
| Interface IF1 – Auto-MDI/MDIX | Yes |
| Interface IF1 – Fieldbus | POWERLINK V2 managing or controlled node |
| Interface IF1 – Type | Type 6Communication → POWERLINK → General information → Hardware - IF/LS" in Automation Help"> (note: See section) |
| Interface IF1 – Variant | 1x RJ45 shielded |
| Interface IF1 – Line length | Max. 100 m between 2 nodes (segment length) |
| Interface IF1 – Max. transfer rate | 100 Mbit/s |
| Interface IF2 – Physical layer | 10BASE-T/100BASE-TX/1000BASE-T |
| Interface IF2 – Half-duplex | Yes |
| Interface IF2 – Full-duplex | Yes |
| Interface IF2 – Autonegotiation | Yes |
| Interface IF2 – Auto-MDI/MDIX | Yes |
| Interface IF2 – Type | Ethernet |
| Interface IF2 – Variant | 1x RJ45 shielded |
| Interface IF2 – Line length | Max. 100 m between 2 nodes (segment length) |
| Interface IF2 – Max. transfer rate | 10/100/1000 Mbit/s |
| Interface IF3 – Type | USB 2.0 |
| Interface IF3 – Variant | Type A |
| Interface IF3 – Current-carrying capacity | 0.5 A |
| Interface IF4 – Type | USB 2.0 |
| Interface IF4 – Variant | Type A |
| Interface IF4 – Current-carrying capacity | 0.5 A |
| Interface IF5 – Fieldbus | X2X Link master |
| Interface IF5 – Line length | Max. 100 m between 2 nodes (segment length) |
| Interface IF6 – Bus length ≤25 m | 1 Mbit/s |
| Interface IF6 – Bus length ≤60 m | 500 kbit/s |
| Interface IF6 – Bus length ≤200 m | 250 kbit/s |
| Interface IF6 – Bus length ≤1000 m | 50 kbit/s |
| Interface IF6 – Type | CAN bus |
| Interface IF6 – Variant | 3 pins of the 6-pin multipoint connector |
| Interface IF6 – Max. distance | 1000 m |
| Interface IF7 – Bus length ≤25 m | 1 Mbit/s |
| Interface IF7 – Bus length ≤60 m | 500 kbit/s |
| Interface IF7 – Bus length ≤200 m | 250 kbit/s |
| Interface IF7 – Bus length ≤1000 m | 50 kbit/s |
| Interface IF7 – Type | CAN bus |
| Interface IF7 – Variant | 3 pins of the 6-pin multipoint connector |
| Interface IF7 – Max. distance | 1000 m |
Electrical properties
| Nominal voltage | 24 VDC -25% / +30%, PELV |
| Power consumption | Max. 21 W (note: Power consumption including all interfaces.) |
| Fuse | 3 A slow-blow, internal (note: The internal fuse cannot be replaced by the user or reset.) |
| Reverse polarity protection | Yes |
| Electrical isolation | POWERLINK (IF1), Ethernet (IF2) and X2X Link (IF5) isolated from each other, from other interfaces and from the base device |
Operating conditions
| Permissible mounting orientations – Standard mounting orientation | Vertical |
| Permissible mounting orientations – Inclination | ±25° |
| Permissible mounting orientations – Rotation | In 90° increments (portrait/landscape) |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | Front: IP55, Back: IP20 |
Ambient conditions
| Temperature – Operation | -20 to 60°C |
| Temperature – Storage | -20 to 80°C |
| Temperature – Transport | -20 to 80°C |
| Relative humidity | See temperature/humidity diagram. |
Mechanical properties
| Front – Design | Black |
| Dimensions – Width | 197 mm |
| Dimensions – Height | 140 mm |
| Dimensions – Depth | 42.2 mm |
| Weight | 1.13 kg |
Accessories
Optional accessories (7)
| 0TB6102.2110-01 | Terminal blocks — Accessory terminal block, 2-pin (3.81), cage clamp terminal block 1.5 mm² |
| 0TB5106.2110-01 | Terminal blocks — Accessory terminal block, 6-pin (2.5), cage clamp terminal block 0.5 mm² |
| 0TB5104.2110-01 | Terminal blocks — Accessory terminal block, 4-pin (2.5), cage clamp terminal block 0.5 mm² |
| 6ACCRPP3.0000-000 | Other — This installation kit contains the following replacement parts: 9 retaining clips; 1x 2-pin cage clamp terminal block; 1x 2-pin screw clamp… |
| 0TB6102.2010-01 | Terminal blocks — Accessory terminal block, 2-pin (3.81), screw clamp terminal block 1.5 mm² |
| 5MMUSB.4096-01 | USB accessories — 4 GB; USB 1.1, USB 2.0; High transfer rate; High data storage; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 4096 MB… |
| 5MMUSB.2048-01 | USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M… |
