Power Panel C50 Parts

B&R

4PPC50.0702-10A

Power Panel C50, 7.0", glass front (anti-glare)

B&R

4PPC50.0702-10B

Power Panel C50, 7.0", glass front

B&R

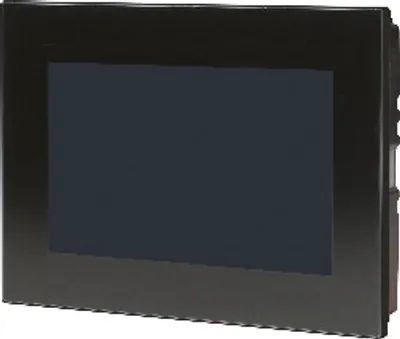

4PPC50.0702-11A

Power Panel C50, 7.0", glass front (anti-glare)

B&R

4PPC50.0702-11B

Power Panel C50, 7.0", glass front

B&R

4PPC50.0702-12A

Power Panel C50, 7.0", glass front (anti-glare)

B&R

4PPC50.0702-13A

Power Panel C50, 7.0", glass front (anti-glare)

B&R

4PPC50.0702-13B

Power Panel C50, 7.0", glass front

B&R

4PPC50.101E-12B

Power Panel C50, 10.1", glass front

B&R

4PPC50.121E-12B

Power Panel C50, 12.1", glass front

B&R

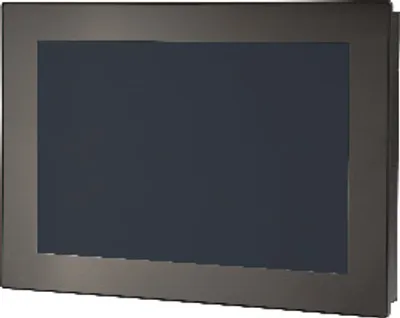

4PPC50.156B-12B

Power Panel C50, 15.6", glass front

B&R

4PPC50.101E-10A

Power Panel C50, 10.1", glass front (anti-glare)

B&R

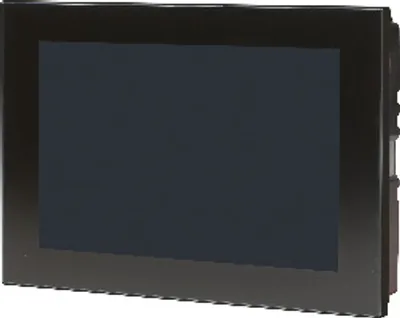

4PPC50.101E-10B

Power Panel C50, 10.1", glass front

B&R

4PPC50.101E-11A

Power Panel C50, 10.1", glass front (anti-glare)

B&R

4PPC50.101E-11B

Power Panel C50, 10.1", glass front

B&R

4PPC50.101E-12A

Power Panel C50, 10.1", glass front (anti-glare)

B&R

4PPC50.101E-13A

Power Panel C50, 10.1", glass front (anti-glare)

B&R

4PPC50.101E-13B

Power Panel C50, 10.1", glass front

B&R

4PPC50.121E-10A

Power Panel C50, 12.1", glass front (anti-glare)

B&R

4PPC50.121E-11A

Power Panel C50, 12.1", glass front (anti-glare)

B&R

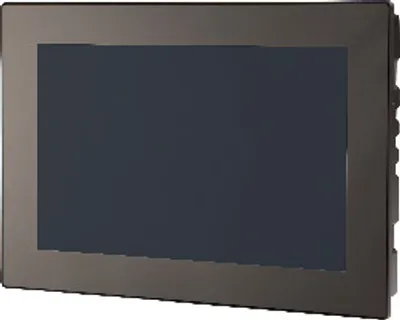

4PPC50.121E-11B

Power Panel C50, 12.1", glass front

B&R

4PPC50.121E-13A

Power Panel C50, 12.1", glass front (anti-glare)

B&R

4PPC50.121E-13B

Power Panel C50, 12.1", glass front

B&R

4PPC50.156B-10A

Power Panel C50, 15.6", glass front (anti-glare)

B&R

4PPC50.156B-10B

Power Panel C50, 15.6", glass front

Compare Power Panel C50

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Viewing angles – Horizontal	Diagonal	Dimensions – Width	Dimensions – Height	Weight
4PPC50.0702-10A	Direction L / Direction R = Typ. 70°	7.0"	197 mm	140 mm	1.13 kg
4PPC50.0702-10B	Direction L / Direction R = Typ. 70°	7.0"	197 mm	140 mm	1.13 kg
4PPC50.0702-11A	Direction L / Direction R = Typ. 70°	7.0"	197 mm	140 mm	1.13 kg
4PPC50.0702-11B	Direction L / Direction R = Typ. 70°	7.0"	197 mm	140 mm	1.13 kg
4PPC50.0702-12A	Direction L / Direction R = Typ. 70°	7.0"	197 mm	140 mm	1.13 kg
4PPC50.0702-13A	Direction L / Direction R = Typ. 70°	7.0"	197 mm	140 mm	1.13 kg
4PPC50.0702-13B	Direction L / Direction R = Typ. 70°	7.0"	197 mm	140 mm	1.13 kg
4PPC50.101E-12B	Direction L / Direction R = Typ. 85°	10.1"	271.5 mm	190 mm	1.78 kg
4PPC50.121E-12B	Direction L / Direction R = Typ. 80°	12.1"	324 mm	221.5 mm	2.37 kg
4PPC50.156B-12B	Direction L / Direction R = Typ. 85°	15.6"	414 mm	258.5 mm	3.44 kg
4PPC50.101E-10A	Direction L / Direction R = Typ. 85°	10.1"	271.5 mm	190 mm	1.78 kg
4PPC50.101E-10B	Direction L / Direction R = Typ. 85°	10.1"	271.5 mm	190 mm	1.78 kg
4PPC50.101E-11A	Direction L / Direction R = Typ. 85°	10.1"	271.5 mm	190 mm	1.78 kg
4PPC50.101E-11B	Direction L / Direction R = Typ. 85°	10.1"	271.5 mm	190 mm	1.78 kg
4PPC50.101E-12A	Direction L / Direction R = Typ. 85°	10.1"	271.5 mm	190 mm	1.78 kg
4PPC50.101E-13A	Direction L / Direction R = Typ. 85°	10.1"	271.5 mm	190 mm	1.78 kg
4PPC50.101E-13B	Direction L / Direction R = Typ. 85°	10.1"	271.5 mm	190 mm	1.78 kg
4PPC50.121E-10A	Direction L / Direction R = Typ. 80°	12.1"	324 mm	221.5 mm	2.37 kg
4PPC50.121E-11A	Direction L / Direction R = Typ. 80°	12.1"	324 mm	221.5 mm	2.37 kg
4PPC50.121E-11B	Direction L / Direction R = Typ. 80°	12.1"	324 mm	221.5 mm	2.37 kg
4PPC50.121E-13A	Direction L / Direction R = Typ. 80°	12.1"	324 mm	221.5 mm	2.37 kg
4PPC50.121E-13B	Direction L / Direction R = Typ. 80°	12.1"	324 mm	221.5 mm	2.37 kg
4PPC50.156B-10A	Direction L / Direction R = Typ. 85°	15.6"	414 mm	258.5 mm	3.44 kg
4PPC50.156B-10B	Direction L / Direction R = Typ. 85°	15.6"	414 mm	258.5 mm	3.44 kg

Common to all listed parts

Support – Controller redundancy	No
Support – ACOPOS support	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Cooling	Passive
Power button	No
