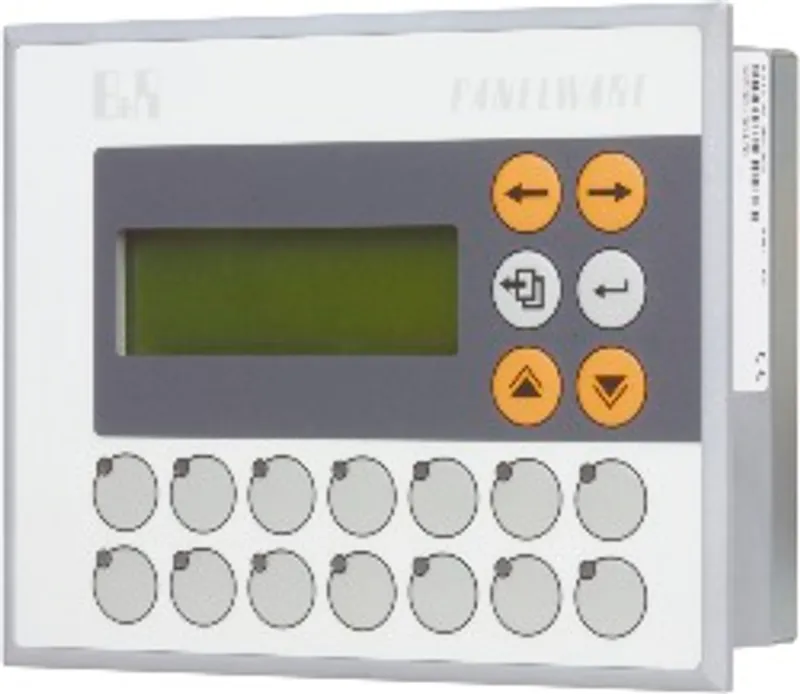

B&R 4B1270.00-390

PANELWARE compact HMI terminal HMI (escape sequences) LCD…

MPN: 4B1270.00-390
Category: Compact panels

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 4B1270.00-390?

PANELWARE compact HMI terminal HMI (escape sequences) LCD display, 4x 20 characters backlight 20 function keys CAN interface, 24 VDC power supply IP65 protection (front)

Specifications

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Operation	Control by the PLC with escape sequences (no image memory), B&R Visual Components

24 VDC power supply

Input voltage – Minimum	18 VDC
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Power consumption (typ. / max.)	2.2 / 2.5 W

Display

Backlight – Type	LED
Backlight – Brightness	200 cd/m²
Type	LCD
Resolution	4 x 20 characters

Interfaces

CAN – Quantity	1
CAN – Variant	9-pin male DSUB connector
CAN – Transfer rate	Max. 500 kbit/s
CAN – Electrical isolation	Yes
CAN – Max. distance	1000 m
CAN – Network-capable	Yes

Keys

Function keys	14 with LED (yellow)
System keys	6
Label	14 soft keys using slide-in labels
Quantity	20 membrane keys

Operating conditions

Degree of protection per EN 60529

IP65 (front)

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 60°C

Mechanical properties

Dimensions – Width	153 mm
Dimensions – Height	120 mm
Dimensions – Depth	43 mm
Front	Multi-layered panel overlay with insertion slots for key labels
Weight	Approx. 500 g

Accessories

Optional accessories (4)

7AC911.9	Infrastructure components — The AC911 bus connector is used to connect a controller to a CAN network. The terminating resistor is integrated in the bus connector. The…
0AC913.92	Infrastructure components — Bus adapter, CAN, 2 CAN interfaces, including 30 cm attachment cable (DSUB)
0AC912.9	Infrastructure components — Bus adapter, CAN, 1 CAN interface
4A0046.00-000	Miscellaneous — PANELWARE set with slide-in label templates for 10 devices 4B1260/1270.00-390

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Legend Strips template for 4B12x0.00-390ZIP · 19 KB · 1.00 (07/01/2008)
