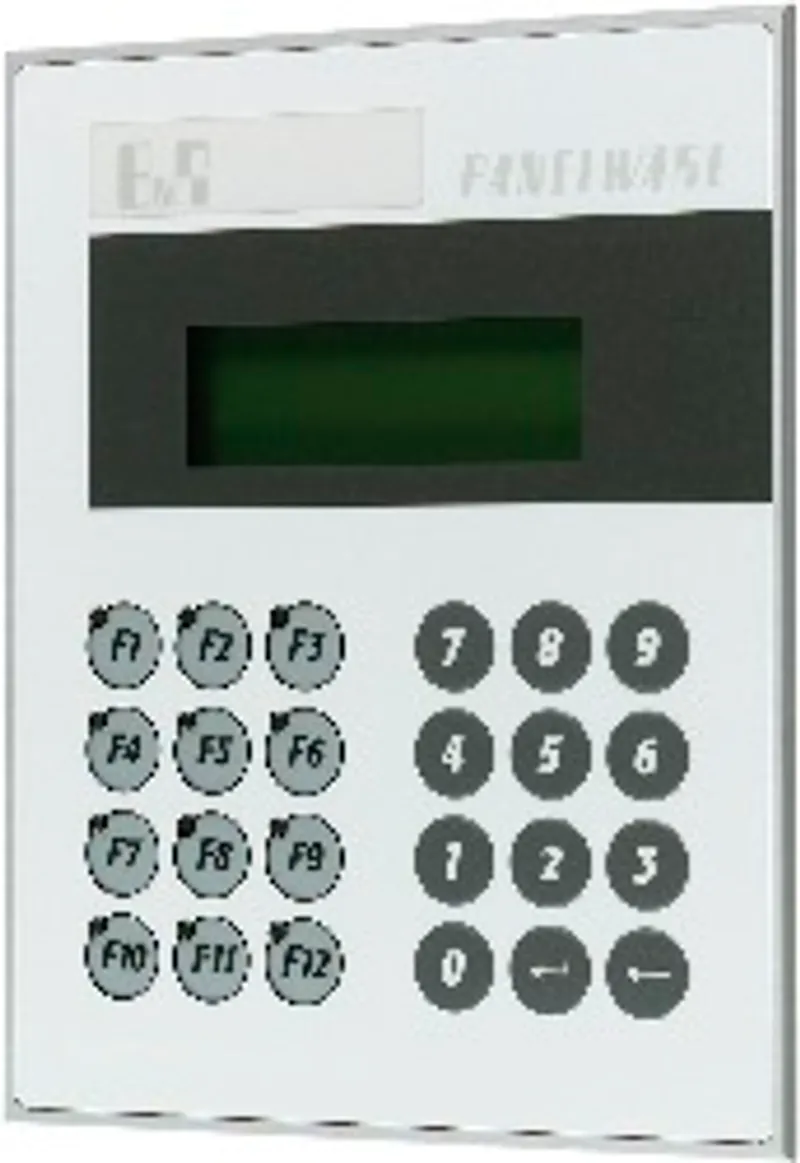

B&R 4B1270.00-490
PANELWARE compact HMI, white terminal HMI
- MPN
- 4B1270.00-490
- Category
- Compact panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 4B1270.00-490?
PANELWARE compact HMI, white terminal HMI (escape sequences) LCD display, 4x 20 characters backlight 12 number keys and 12 function keys CAN interface, 24 VDC power supply IP65 protection (front)
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Operation | Control by the PLC with escape sequences (no image memory), B&R Visual Components |
24 VDC power supply
| Input voltage – Minimum | 18 VDC |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Power consumption (typ. / max.) | 2.8 / 3.3 W |
Display
| Backlight – Type | LED |
| Backlight – Brightness | 200 cd/m² |
| Type | LCD |
| Resolution | 4 x 20 characters |
Interfaces
| CAN – Quantity | 1 |
| CAN – Variant | 9-pin male DSUB connector |
| CAN – Transfer rate | Max. 500 kbit/s |
| CAN – Electrical isolation | Yes |
| CAN – Max. distance | 1000 m |
| CAN – Network-capable | Yes |
Keys
| Function keys | 12 with LED (yellow) |
| Number block | 12 |
| Label | 12 soft keys using slide-in labels |
| Quantity | 24 membrane keys |
Operating conditions
| Degree of protection per EN 60529 | IP65 (front) |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 60°C |
Mechanical properties
| Dimensions – Width | 145 mm |
| Dimensions – Height | 180 mm |
| Dimensions – Depth | 30 mm |
| Front | Multi-layer panel overlay with insert pockets for ; key labeling and company logo or ; machine designation |
| Weight | Approx. 500 g |
Accessories
Optional accessories (4)
| 7AC911.9 | Infrastructure components — The AC911 bus connector is used to connect a controller to a CAN network. The terminating resistor is integrated in the bus connector. The… |
| 0AC913.92 | Infrastructure components — Bus adapter, CAN, 2 CAN interfaces, including 30 cm attachment cable (DSUB) |
| 0AC912.9 | Infrastructure components — Bus adapter, CAN, 1 CAN interface |
| 4A0026.00-000 | Miscellaneous — PANELWARE set with legend sheets for P125/P126/P127 Compact HMI, 10 sheets |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
4B1270.00-490: frequently asked questions
When can 4B1270.00-490 be shipped?
4B1270.00-490 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4B1270.00-490 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4B1270.00-490 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4B1270.00-490, subject to availability and destination.
