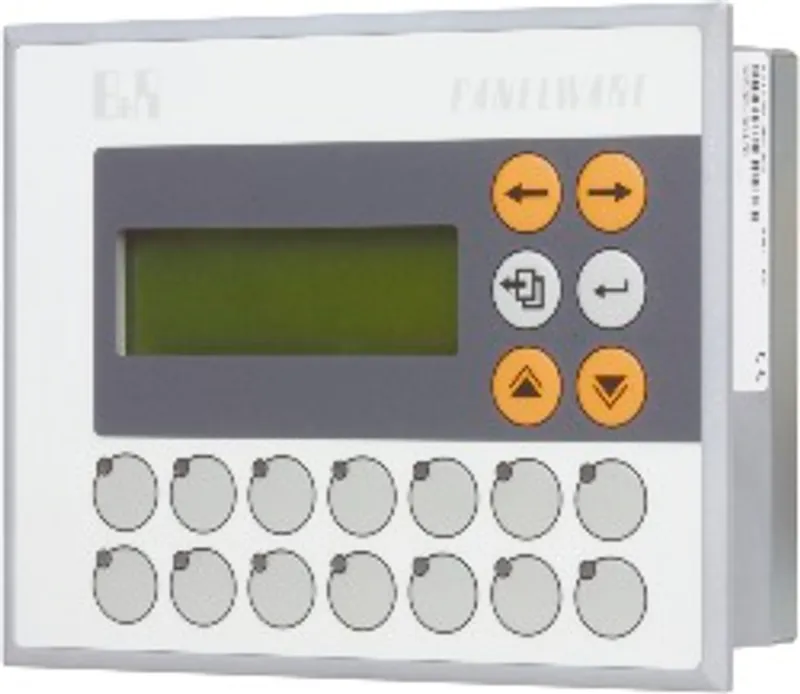

B&R 4B1260.00-390

PANELWARE compact HMI terminal HMI (escape sequences) LCD…

MPN: 4B1260.00-390
Category: Compact panels

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 4B1260.00-390?

PANELWARE compact HMI terminal HMI (escape sequences) LCD display, 4x 20 characters backlight 20 function keys 1 RS232 interface IP65 protection (front)

Specifications

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Operation	Control by the PLC with escape sequences (no image memory)

24 VDC power supply

Input voltage – Minimum	5 VDC
Input voltage – Nominal	5.2 VDC
Input voltage – Maximum	5.5 VDC
Power consumption (typ. / max.)	2.0 / 2.5 W

Display

Backlight – Type	LED backlit
Type	LCD
Resolution	4 x 20 characters

Interfaces

COM1 – Type	RS232
COM1 – Variant	9-pin male DSUB connector
COM1 – Max. baud rate	9600 bit/s
COM1 – Electrical isolation	No
COM1 – Max. distance	15 m / 9600 bit/s with external 24 VDC power supply
COM1 – Network-capable	No

Keys

Function keys	14 with LED (yellow)
System keys	6
Label	14 soft keys using slide-in labels
Quantity	20 membrane keys

Operating conditions

Degree of protection per EN 60529

IP65 (front)

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 60°C

Mechanical properties

Dimensions – Width	153 mm
Dimensions – Height	120 mm
Dimensions – Depth	43 mm
Front	Multi-layered panel overlay with insertion slots for ; key labels
Weight	Approx. 500 g

Accessories

Optional accessories (2)

4A0046.00-000	Miscellaneous — PANELWARE set with slide-in label templates for 10 devices 4B1260/1270.00-390
4A0027.00-000	Miscellaneous — Power supply unit for Compact HMI P120/P121/P125/P126 24 VDC, 7.5 W

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 4B1260.00-390PDF · 384 KB · 1.10 (06/17/2009) - EN

CAD & dimension drawings

Legend Strips template for 4B12x0.00-390ZIP · 19 KB · 1.00 (07/01/2008)
