NewB&R 4A0027.00-000
Power supply unit for Compact HMI P120/P121/P125/P126 24…
- MPN
- 4A0027.00-000
- Category
- Miscellaneous
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

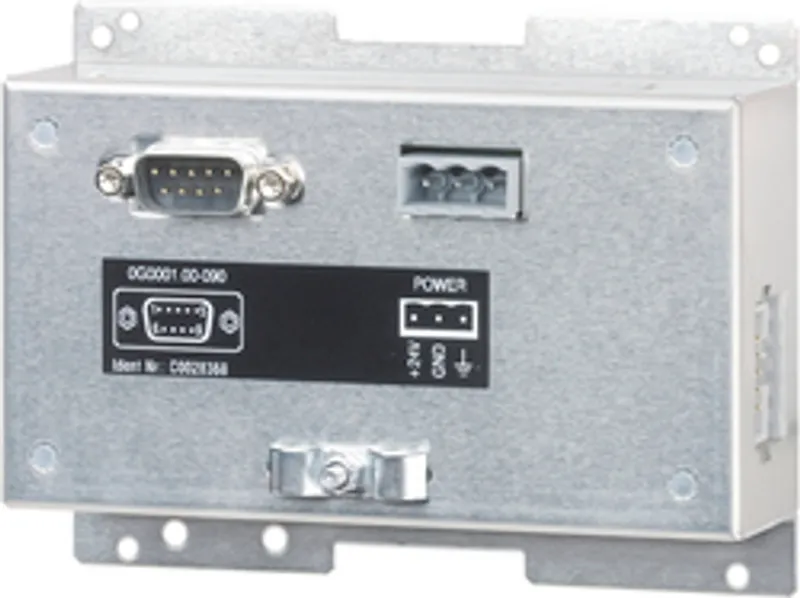

What is the B&R 4A0027.00-000?
Power supply unit for Compact HMI P120/P121/P125/P126 24 VDC, 7.5 W
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
24 VDC power supply
| Input voltage – Minimum | 18 VDC |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Connection | Via 3-pin female multipoint connector |
| Power consumption | Max. 7.5 W |
Interfaces
| COM1 – Type | RS232 |
| COM1 – Execution | 9-pin male DSUB connector |
| COM1 – Electrical isolation | No |
| Interface to panel – Connection | Connection cable for panel connection included in delivery |
| Interface to panel – Execution | 10-pin male header |
| Interface to panel – Electrical isolation | No |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 60°C |
Mechanical properties
| Dimensions – Width | 114 mm |
| Dimensions – Height | 85.5 mm |
| Dimensions – Depth | 31 mm |
| Weight | 135 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
4A0027.00-000: frequently asked questions
When can 4A0027.00-000 be shipped?
4A0027.00-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4A0027.00-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4A0027.00-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4A0027.00-000, subject to availability and destination.
