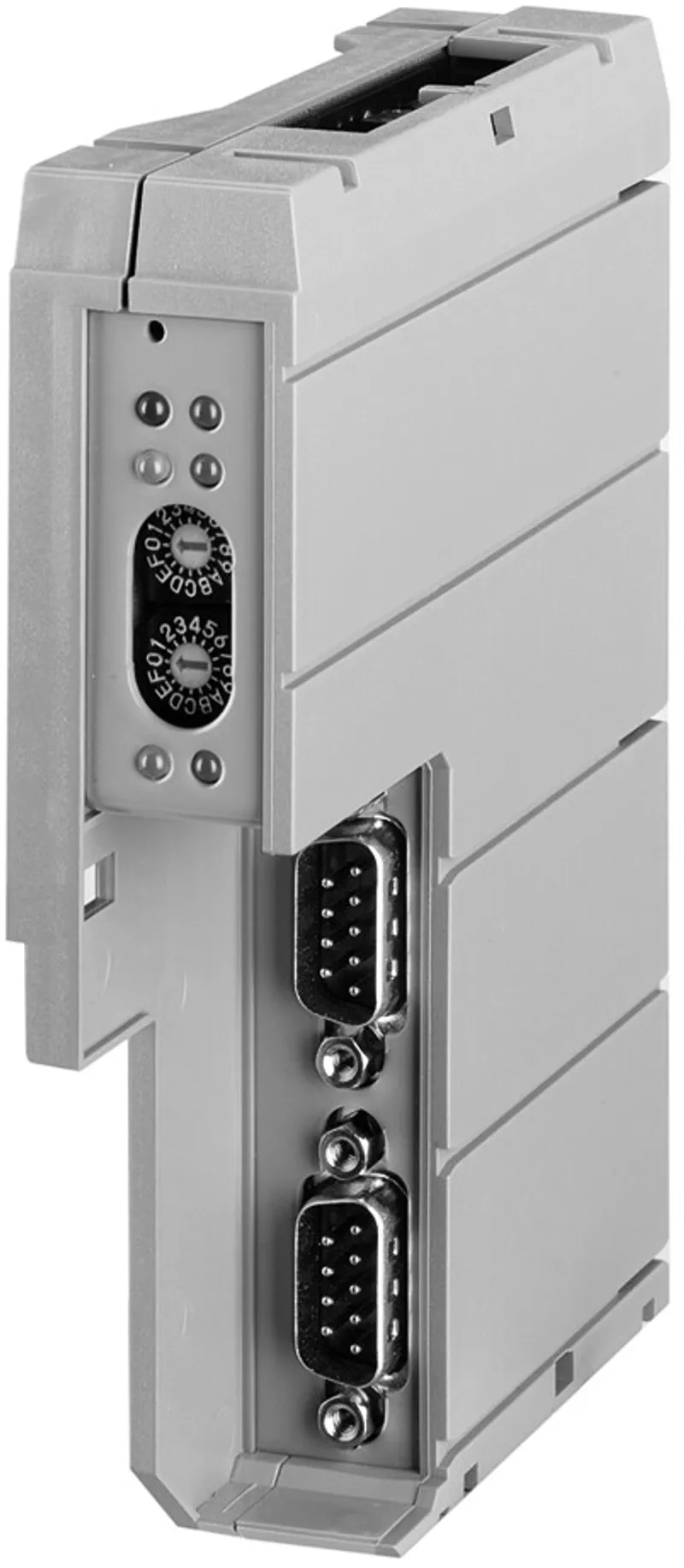

B&R 3XP152.60-2

2005 CPU 118 kB SRAM, 512 kB FlashPROM 1 RS232 interface 1…

MPN: 3XP152.60-2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3XP152.60-2?

2005 CPU 118 kB SRAM, 512 kB FlashPROM 1 RS232 interface 1 CAN interface CAN: Electrically isolated, network-capable slot for power supply modules

Specifications

General Information

C-UL-US Listed	Yes
B&R ID Code	$11
Slot	Insert for power supply PS465
Power Consumption – 5V	Max. 4 W
Power Consumption – Total	Max. 4 W
Typical Instruction Cycle Time	0.8 µs
SRAM – User RAM / DPR	118 KB
SRAM – System RAM	138 KB
FlashPROM – User PROM	512 KB
FlashPROM – System PROM	512 KB
Data Buffering – Backup Battery in 2005 Backplane with Battery Module AC240	At least 4 years At least 2 years
Data Buffering – Battery Monitoring	Yes, when operated as main CPU (starting with Rev. 12.00)
Real-time Clock	Nonvolatile (external buffering)
Resolution	1s
Reset Button	Yes
Status Display	LEDs

Standard Communication Interfaces

Application Interface IF1	RS232
Design	9-pin DSUB plug
Electrical Isolation	No
Max. Distance	15 m / 19200 Baud
Max. Baud Rate	64 baud
Application Interface IF2	CAN
Design	9-pin DSUB plug
Electrical Isolation	Yes
Max. Distance	1,000 m
Max. Baud Rate – Bus Length ≤60 m	500 kBits/s
Max. Baud Rate – Bus Length ≤200 m	250 kBits/s
Max. Baud Rate – Bus Length ≤1,000 m	50 kBits/s

Mechanical Characteristics

Dimensions (H, W, D) [mm]

130, 28, 105

Accessories

Optional accessories (3)

7AC911.9	Infrastructure components — The AC911 bus connector is used to connect a controller to a CAN network. The terminating resistor is integrated in the bus connector. The…
0AC913.92	Infrastructure components — Bus adapter, CAN, 2 CAN interfaces, including 30 cm attachment cable (DSUB)
0AC912.9	Infrastructure components — Bus adapter, CAN, 1 CAN interface

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3XP152.60-2PDF · 647 KB · 1.0 (06/08/2004) - EN
