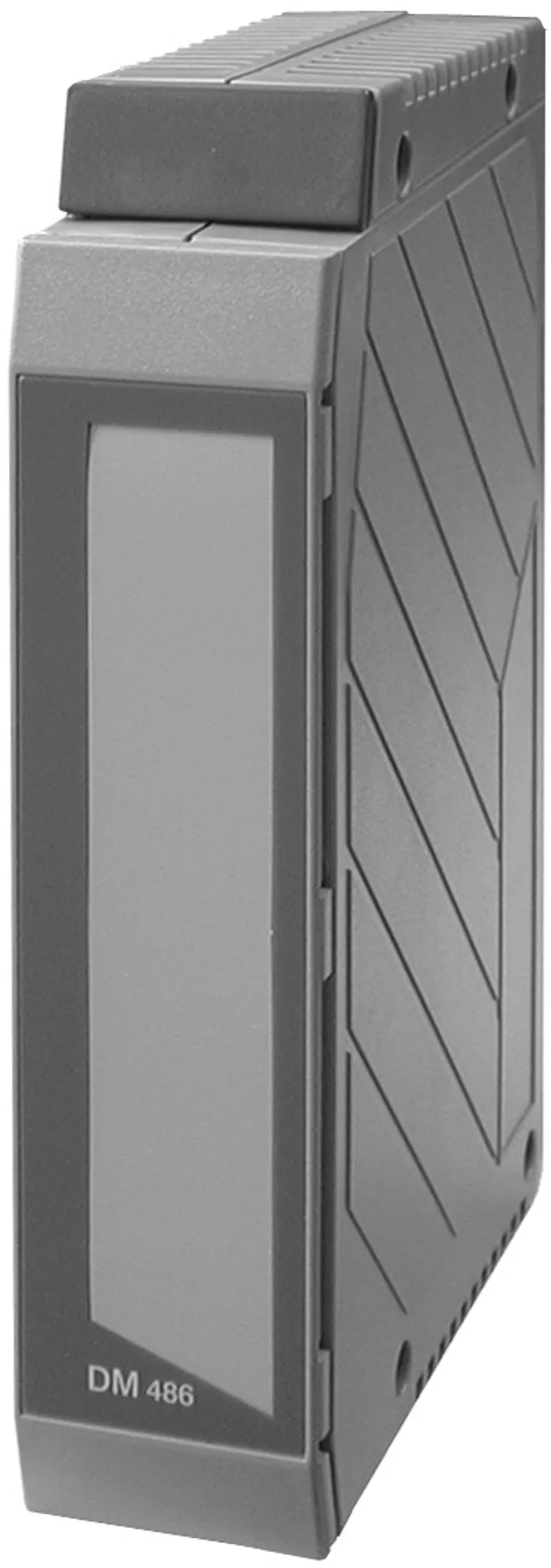

B&R 3DM486.6

I/O module, 16 digital inputs, 16 digital outputs

MPN: 3DM486.6

€94.34excl. VAT & shipping

In stock — 7 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3DM486.6?

2005 digital mixed module, 16 inputs 24 VDC, 1 ms, sink/source, 16 transistor outputs 24 VDC, 0.5 A, input and output group, electrically isolated, order 2x terminal blocks TB718 separately!

Specifications

Short description

I/O module

16 digital inputs, 16 digital outputs

General information

Diagnostics – Outputs	Yes, using LED status indicator and software
Diagnostics – Output monitoring	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Power consumption – 24 VDC	-
Power consumption – 5 VDC	1.2 W
Power consumption – Total	1.2 W
Power consumption – External 24 V (DO)	2.2 W
Electrical isolation – Group isolation	Input group - Output group
Electrical isolation – Channel - Channel	No
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	I/O function per channel, I/O power supply for inputs and outputs, output monitoring

Digital inputs

Input filter – Hardware	≤1 ms
Input filter – Software	-
Nominal voltage	24 VDC
Input circuit	Sink or source

Digital outputs

Nominal voltage	24 VDC
Nominal output current	0.5 A
Total nominal current	8.0 A
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Sensor power supply	External

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 2x TB718 terminal blocks separately

Accessories

Required accessories (order separately)

7TB718.91	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
