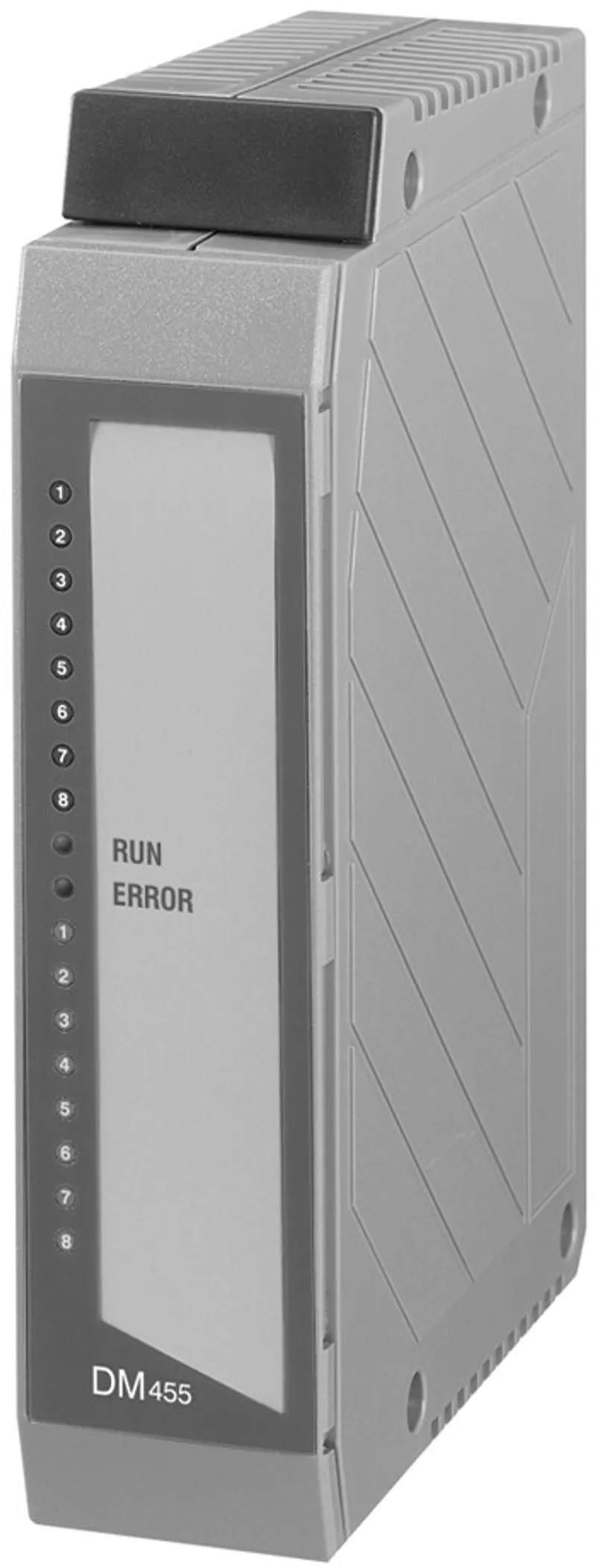

B&R 3DM455.60-2

I/O module, 8 digital inputs, 8 digital outputs

MPN: 3DM455.60-2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3DM455.60-2?

2005 digital mixed module, 8 inputs 24 VDC, 2.5 µs, sink, 8 transistor outputs, 0 to 50 VDC, 1 A, order 1x terminal block TB170 separately!

Specifications

Short description

I/O module

8 digital inputs, 8 digital outputs

General information

Diagnostics – Outputs	Yes, using LED status indicator
Diagnostics – Error	Yes, using LED status indicator
Diagnostics – Initialization	Yes, using LED status indicator
Power consumption – 24 VDC	-
Power consumption – 5 VDC	3.5 W
Power consumption – Total	3.5 W
Electrical isolation – Group isolation	Input group - Output group
Electrical isolation – Channel - Channel	No
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	Initialization, error, I/O function per channel

Digital inputs

Input filter – Hardware	≤2.5 µs
Input filter – Software	-
Nominal voltage	24 VDC
Input circuit	Sink
Additional functions	Encoder evaluation, signal measurement, high-speed signal processing

Digital outputs

Nominal output current – Motor operation	See section "Permissible load on the motor winding".
Nominal output current – Push, pull, push/pull	1.0 A
Output circuit	Push, pull, push/pull, full-bridge
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Sensor power supply	External
Supply voltage	0 to 50 VDC
Additional functions	Stepper motor control, pulse width modulation

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.

Accessories

Required accessories (order separately)

3TB170.91	Terminal blocks — 2005 terminal block, 20-pin, push-in terminal block
3TB170.9	Terminal blocks — 2005 terminal block, 20-pin, screw clamp terminal block

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3DM455.60-2PDF · 556 KB · 1.0 (06/08/2004) - EN
