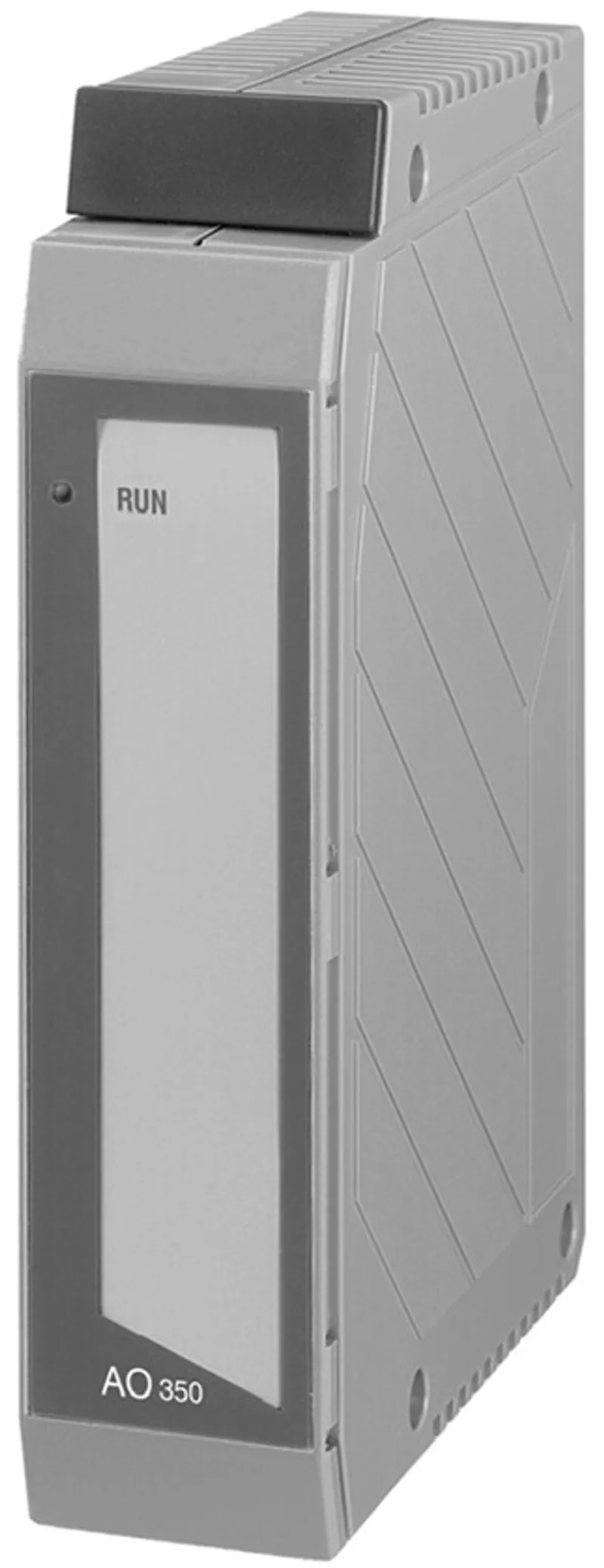

B&R 3AO350.6

I/O module, 8 analog outputs ±10 V

MPN: 3AO350.6

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3AO350.6?

2005 analog output module, 8 outputs, ±10 V, 12-bit, order 1x terminal block TB170 separately!

Specifications

Short description

I/O module

8 analog outputs ±10 V

General information

Diagnostics – Converter	Yes, using LED status indicator
Power consumption – 24 VDC	4.0 W
Power consumption – 5 VDC	1.0 W
Power consumption – Total	5.0 W
Electrical isolation – Channel - Channel	No
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	Converter function

Analog outputs

Output	±10 V
Digital converter resolution	12-bit
Conversion time	250 µs for all outputs
Output protection	Short-circuit proof
Basic accuracy	±0.25% at 20°C (note: Based on the output range.)

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.

Accessories

Required accessories (order separately)

3TB170.91	Terminal blocks — 2005 terminal block, 20-pin, push-in terminal block
3TB170.9	Terminal blocks — 2005 terminal block, 20-pin, screw clamp terminal block

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3AO350.6PDF · 336 KB · 1.0 (06/08/2004) - EN

3AO350.6: frequently asked questions

When can 3AO350.6 be shipped?

3AO350.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3AO350.6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3AO350.6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3AO350.6, subject to availability and destination.
