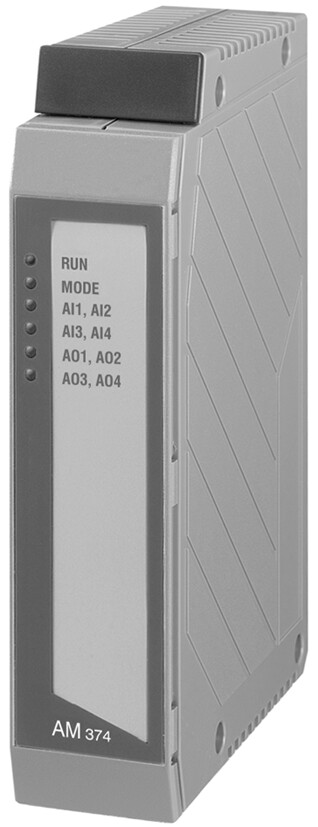

B&R 3AM374.6
I/O module, 4 analog inputs in 2 groups
- MPN
- 3AM374.6
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3AM374.6?
2005 analog mixed module, 4 inputs, 0-10 V / 0 to 20 mA, 12-bit, 4 outputs, ±10 V / 0 to 20 mA, 12-bit, signals switchable in groups of 2, order 1x terminal block TB170 separately!
Specifications
Short description
| I/O module | 4 analog inputs in 2 groups, 4 analog outputs in 2 groups |
General information
| Diagnostics – Module status | Yes, using software |
| Diagnostics – Module configuration | Yes, using LED status indicator and software |
| Diagnostics – Converter | Yes, using LED status indicator |
| Power consumption – 24 VDC | 5.0 W |
| Power consumption – 5 VDC | 1.5 W |
| Power consumption – Total | 6.5 W |
| Electrical isolation – Channel - Channel | No |
| Electrical isolation – Channel - PLC | Yes |
| Certifications – CE | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | Module configuration/converter function, start pulse for software clocking, voltage/current input per group, voltage/current output per group |
Analog inputs
| Input – Voltage | 0 to 10 V |
| Input – Current | 0 to 20 mA |
| Input type | Differential input |
| Digital converter resolution | 12-bit |
| Conversion time | <1 ms for inputs and outputs <1.5 ms with enabled averaging |
| Output format | INT |
| Input impedance in signal range | 2 MΩ |
| Load | 50 Ω |
| Input protection | Protection against wiring with supply voltage |
| Operating modes | Cyclic measurement with optional averaging, direct software timing, software timing with time specification (2 - 65.535 ms) |
| Basic accuracy | ±0.1% at 25°C (note: Based on the measurement range.) |
Analog outputs
| Output – Voltage | ±10 V |
| Output – Current | 0 to 20 mA |
| Basic accuracy – Voltage | ±0.3% at 25°C (note: Based on the output range.) |
| Basic accuracy – Current | ±0.15% at 25°C (note: Based on the output range.) |
| Digital converter resolution | 12-bit |
| Conversion time | <1 ms for inputs and outputs <1.5 ms with enabled averaging |
| Switch on/off behavior | Internal enable relay for startup and errors |
| Output protection | Short-circuit proof |
| Operating modes | Cyclic measurement with optional averaging, direct software timing, software timing with time specification (2 - 65.535 ms) |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | Order 1x terminal block TB170 separately. |
Accessories
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3AM374.6: frequently asked questions
When can 3AM374.6 be shipped?
3AM374.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3AM374.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3AM374.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3AM374.6, subject to availability and destination.
