B&R 0TB2104.4112

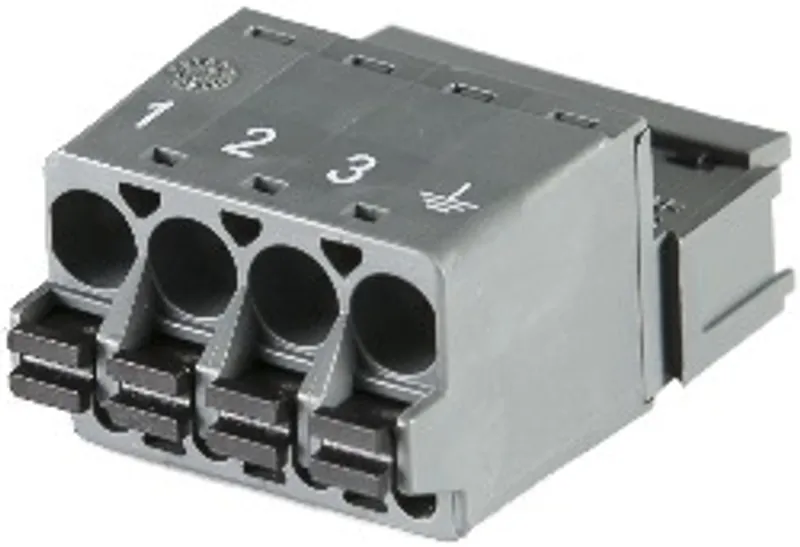

Accessory terminal block, 4-pin, AX2, cage clamp 2.5 mm²

MPN: 0TB2104.4112

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0TB2104.4112?

Accessory terminal block, 4-pin, AX2, cage clamp 2.5 mm²

Specifications

Terminal block

Connection cross section – AWG wire	26 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 2.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 2.50 mm²
Connection cross section – With wire end sleeve	0.20 to 2.50 mm²
Note	Nominal values according to UL
Number of pins	4
Type of terminal block	Cage clamps
Cable type	Only copper wires (no aluminum wires!)
Coding	AX2
Pitch	5.08 mm

Electrical properties

Nominal voltage	300 V
Nominal current	15 A / contact (note: The limit data for each I/O module must be taken into consideration.)
Contact resistance	≤5 mΩ
