Bosch Rexroth R902581188

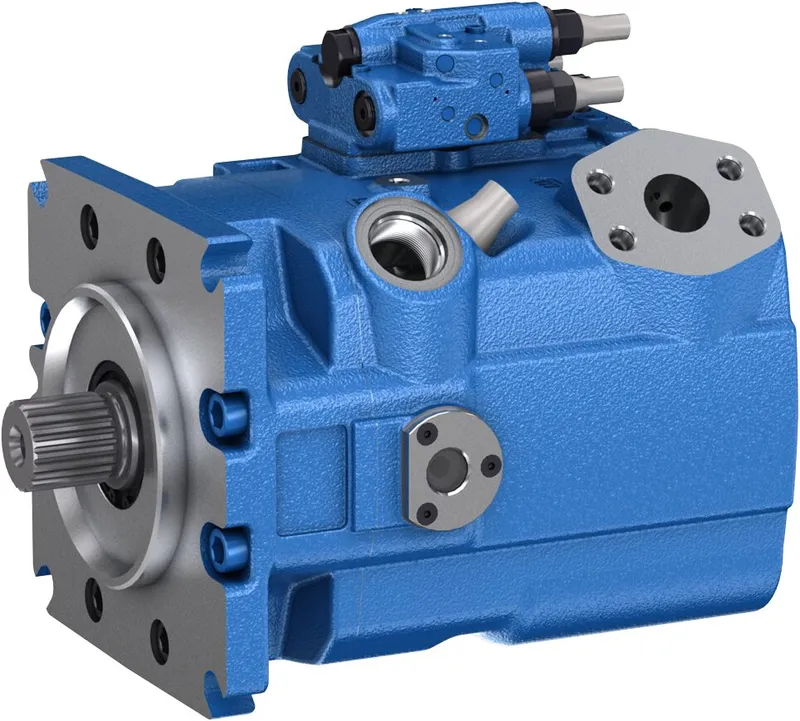

AXIAL-PISTON PUMP A15VSO145
- MPN
- R902581188
- Category
- Axial piston variable pumps
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R902581188?
Bosch Rexroth AXIAL-PISTON PUMP A15VSO145, manufacturer part number R902581188. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Product family | A15V |
| Type of actuation | Open circuit, without charge pump |
| Size (displacement) [cm³] | 145 |
| Series | Series 1, index 2 |
| Port and fastening threads | Metric, ISO 6149, O-ring |
| Direction of rotation | clockwise |
| Sealing material | FKM, shaft seal FKM |
| Shaft end | Splined shaft DIN 5480, W50x2x24x9g |
| Mounting flange | SAE J744, 152-4 |
| Through drive | Prepared for through drive, with pressure-proof plugged cover |
| Connector for solenoids | HIRSCHMANN connector |
| Swivel angle indicator | With swivel angle indicator, without swivel angle sensor |
| Special version | Standard version |
| Rotational speed [rpm] | 1500.0 |
| Max. displacement [cm³] | 145.0 |
| Min. displacement [cm³] | 0 |
| Max. flow [l/min] | 217.5 |
| Min. flow [l/min] | 0 |
| Drive power [kW] | 30.0 |
| Pressure controller setting [bar] | 350 |
| Sensors | without sensor |
| Painting | unpainted |
| Swiveling range | One-sided swiveling (-5% to 100%) |
| Power controller | Fixed setting |
| Pressure controller 1 | Fixed setting |
| Pressure controller 2 | Without pressure cut-off |
| Stroke control | Electrical proportional positive control U = 24 V |
| Load-sensing | Without additional controller, load-sensing |
| Override DG from cat. T | Without override DG (T) |
| Override DG from cat. V | Without override DG (V) |
| Addition for controller variant DRDR | Without addition for variant DRDR |
| Basic position and external control pressure supply | Max. swivel angle, without external control pressure supply |
| Rotary group | Efficiency and rotational speed-optimized (pump) |
| Weight [kg] | 79 |
