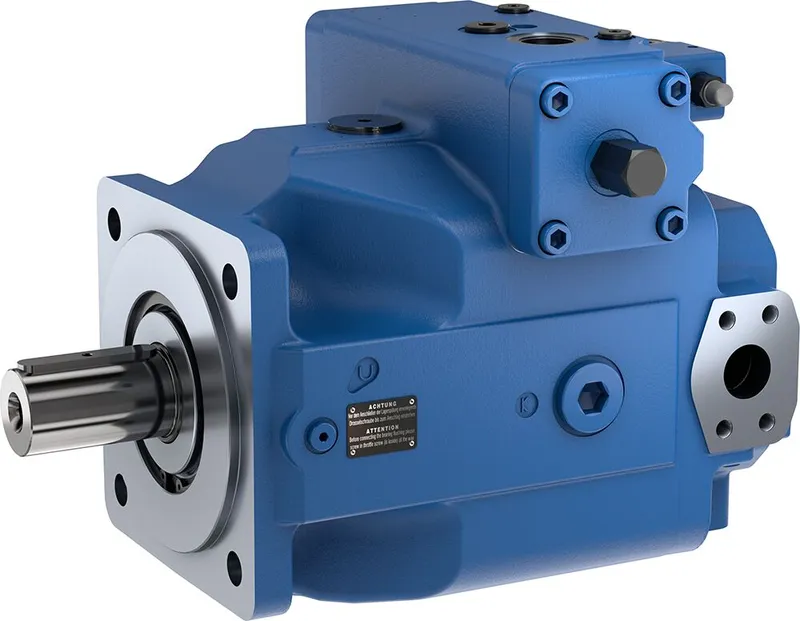

AXIAL-PISTON PUMP A A4VSO 180 LR2G /30R-PPB13N00

Name: Bosch Rexroth R902577146 – AXIAL-PISTON PUMP A A4VSO 180 LR2G /30R-PPB13N00
Brand: Bosch Rexroth
SKU: R902577146

MPN: R902577146 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Axial piston variable pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R902577146 be shipped?

R902577146 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R902577146 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R902577146 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902577146, subject to availability and destination.

Bosch Rexroth AXIAL-PISTON PUMP A A4VSO 180 LR2G /30R-PPB13N00, manufacturer part number R902577146. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product family	A4VS
Charge pump (impeller)	Without charge pump
Type of actuation	Pump, open circuit
Size (displacement) [cm³]	180
Control device	Power controller with hyperbolic characteristic curve
Series	Series 3, index 0
Direction of rotation	clockwise
Sealing material	NBR (nitrile rubber), shaft seal FKM (fluoroelastomer)
Shaft end	Parallel keyed shaft DIN 6885
Mounting flange	based on ISO 3019-2 metric, 4-hole
Working ports	Port B and S: SAE flange lateral, offset 90°, metric fastening thread
Through drive	Without through drive
Rotational speed [rpm]	1500.0
Max. displacement [cm³]	250.0
Max. flow [l/min]	375.0
Pressure differential FR [bar]	0
Drive power [kW]	0.0
Pressure controller setting [bar]	371
DRG differential pressure [bar]	0
Painting	unpainted
Hydraulic fluid	Mineral oil and HFD hydraulic fluids
Filtration	without filter
Weight [kg]	111.97
