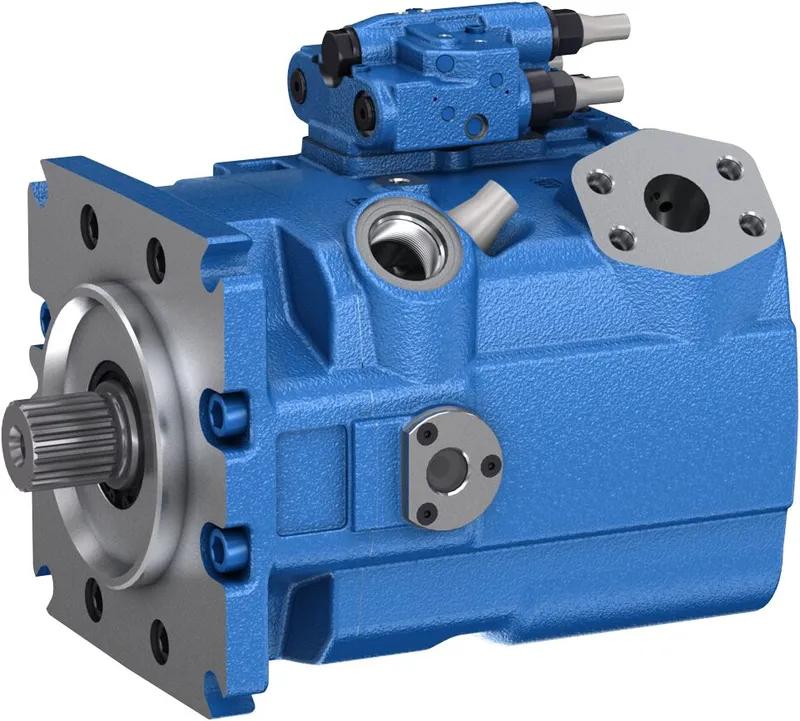

AXIAL-PISTON PUMP A15VSO175PLRDRS0A0V/12MRVE4A2PU0000-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston variable pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902580627 be shipped?
R902580627 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902580627 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902580627 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902580627, subject to availability and destination.
Bosch Rexroth AXIAL-PISTON PUMP A15VSO175PLRDRS0A0V/12MRVE4A2PU0000-0, manufacturer part number R902580627. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Product family | A15V |
| Type of actuation | Open circuit, without charge pump |
| Size (displacement) [cm³] | 175 |
| Series | Series 1, index 2 |
| Port and fastening threads | Metric, ISO 6149, O-ring |
| Direction of rotation | clockwise |
| Sealing material | FKM, shaft seal FKM |
| Shaft end | Splined shaft DIN 5480, W50x2x24x9g |
| Mounting flange | SAE J744, 165-4 |
| Through drive | Prepared for through drive, with pressure-proof plugged cover |
| Connector for solenoids | without connector |
| Swivel angle indicator | With swivel angle indicator, without swivel angle sensor |
| Special version | Standard version |
| Rotational speed [rpm] | 1500.0 |
| Max. displacement [cm³] | 175.0 |
| Min. displacement [cm³] | 0 |
| Max. flow [l/min] | 262.5 |
| Min. flow [l/min] | 0 |
| Drive power [kW] | 30.0 |
| Pressure controller setting [bar] | 350 |
| Sensors | without sensor |
| Painting | unpainted |
| Swiveling range | One-sided swiveling (-5% to 100%) |
| Power controller | Fixed setting |
| Pressure controller 1 | Fixed setting |
| Pressure controller 2 | Without pressure cut-off |
| Stroke control | without stroke control |
| Load-sensing | Load-sensing, pump pressure internal, fixed setting |
| Override DG from cat. T | Without override DG (T) |
| Override DG from cat. V | Without override DG (V) |
| Addition for controller variant DRDR | Without addition for variant DRDR |
| Basic position and external control pressure supply | Max. swivel angle, without external control pressure supply |
| Rotary group | Efficiency and rotational speed-optimized (pump) |
| Weight [kg] | 97 |
