Bosch Rexroth R349951100

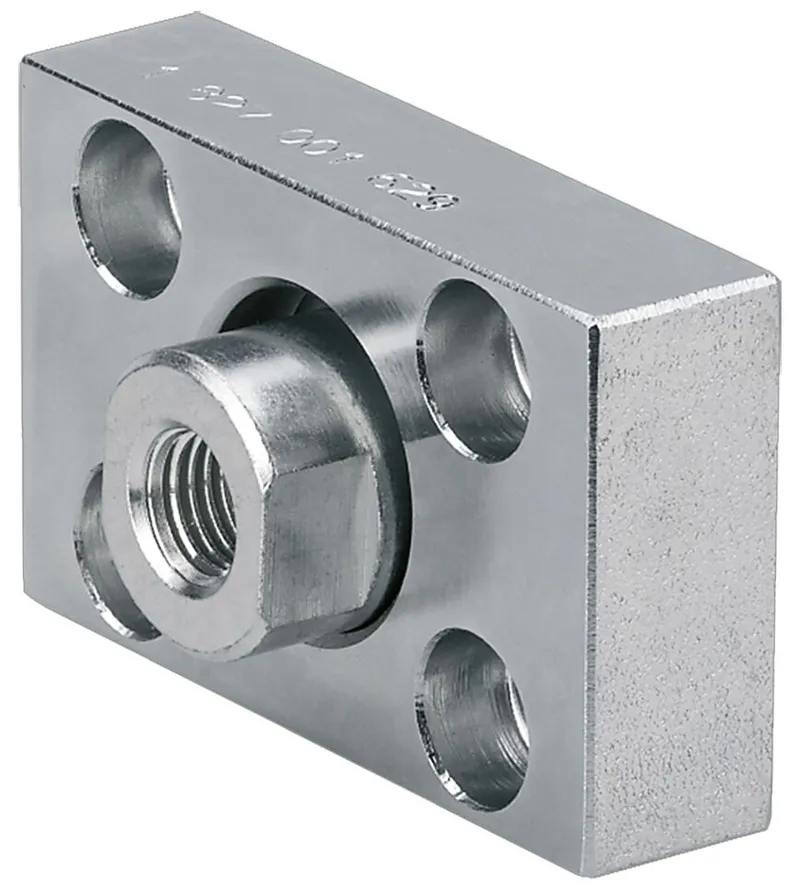

FLEXIBLE COUPLING EMC100XC M36X2

MPN: R349951100
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349951100?

Group 2, option 03

Material: Galvanized steel

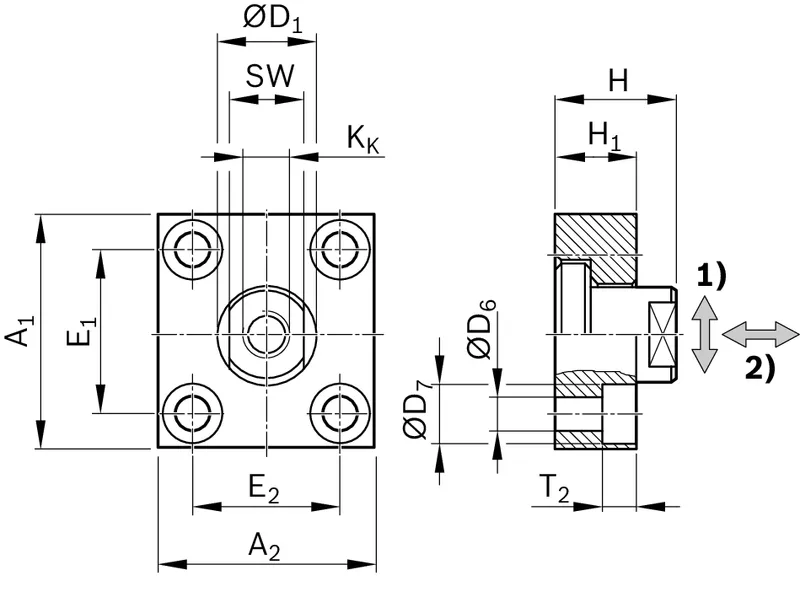

Specifications

Fastening elements for electromechanical cylinders	Flexible coupling
Nominal size [mm]	100XC
Weight [kg]	3.25
Max. dynamic load [bar]	44000
Surface finishing	galvanized
Material of electromechanical cylinders	Steel
Dimension A1 (profiled rail systems) [mm]	125
Dimension A2 (profiled rail systems) [mm]	125
Dimension axial clearance	0.4 mm ... 0.95 mm
Dimension of axial clearance max. [mm]	0.95
Dimension of axial clearance min. [mm]	0.4
Dimension D1 H11 [mm]	60
Dimension D6 H13 [mm]	18
Dimension D7 H13 [mm]	26
Dimension E1 [mm]	90
Dimension E1 tolerance [mm]	±0.3
Dimension E2 [mm]	90
Dimension E2 tolerance [mm]	±0.3
Dimension H [mm]	55.0
Dimension H1 (profiled rail systems) [mm]	30
Dimension KK	M36x2 mm
Dimension radial clearance	2.8 mm ... 3.4 mm
Dimension of radial clearance max. [mm]	3.4
Dimension of radial clearance min. [mm]	2.8
Dimension SW [mm]	50
Dimension T2 [mm]	17
