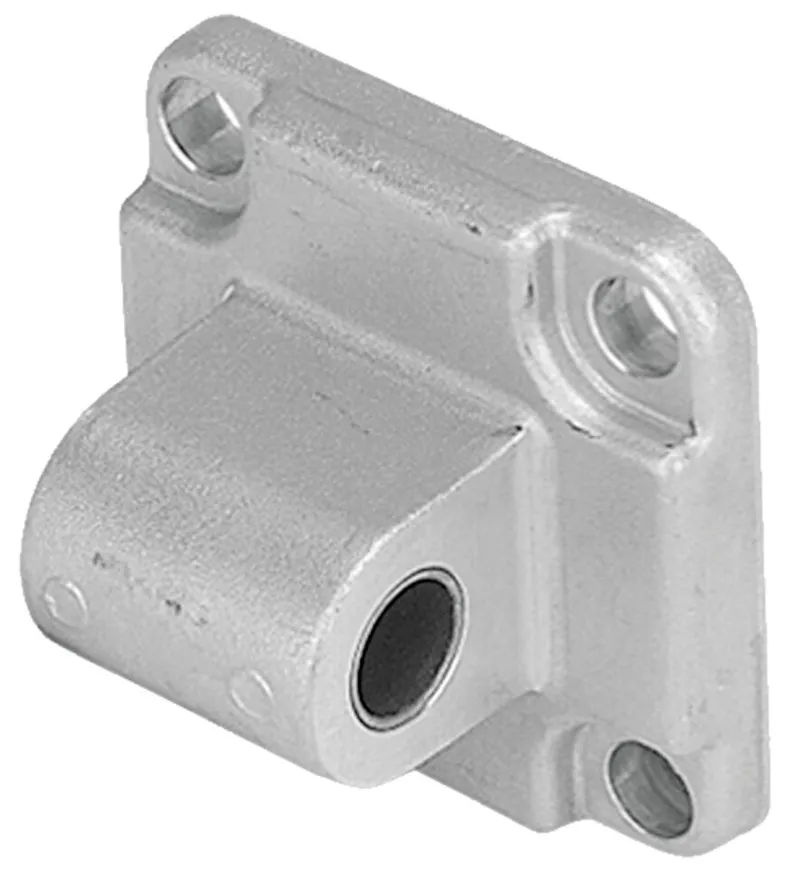

Bosch Rexroth R349948500

FLANGE SCHWENKFLANSCH EMC80 &

MPN: R349948500
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349948500?

Group 6, option 02

Material: Aluminum/galvanized cast iron with spheroidal graphite

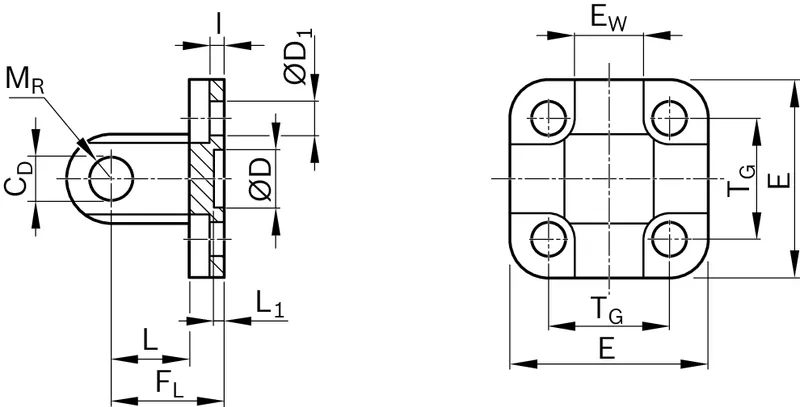

Specifications

Fastening elements for electromechanical cylinders	Swivel mount
Nominal size [mm]	80
Weight [kg]	0.53
Max. dynamic load [bar]	13100
Material of electromechanical cylinders	Aluminum
Dimension CD H9 [mm]	16
Dimension D H11 [mm]	45
Dimension D1 H13 [mm]	11
Dimension E [mm]	98
Dimension EW [mm]	50
Dimension FL [mm]	36
Dimension FL tolerance [mm]	±0.2
Dimension I [mm]	10
Dimension I tolerance [mm]	±0.5
Dimension L min. [mm]	20
Dimension L1 min. [mm]	4.5
Dimension MR max. [mm]	16
Dimension Tg [mm]	72
Dimension TG [mm]	72
Dimension TG tolerance [mm]	±0.2
Dimension TL tolerance [mm]	-0.2; -0.6
Dimension hex socket head cap screws DIN 912	M10x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M10
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20
