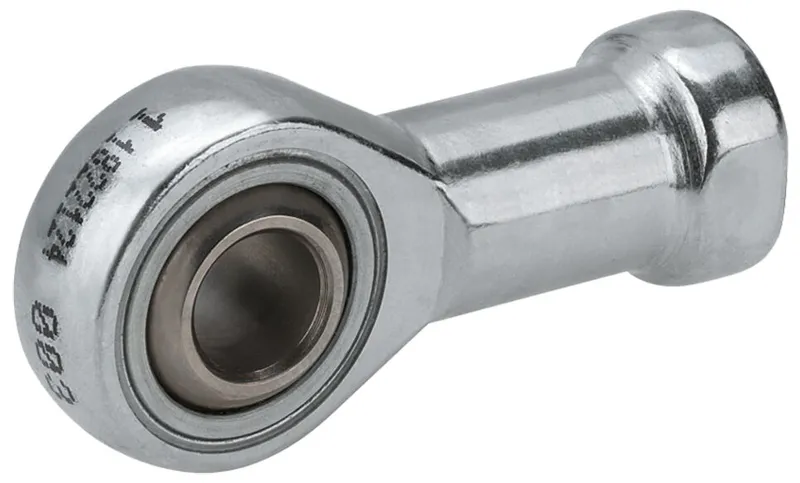

SWIVEL HEAD EMC50/63

Name: Bosch Rexroth R349951800 – SWIVEL HEAD EMC50/63
Brand: Bosch Rexroth
SKU: R349951800

MPN: R349951800 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R349951800 be shipped?

R349951800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R349951800 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R349951800 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349951800, subject to availability and destination.

Group 2, option 07

Material: Stainless steel

Specifications

Fastening elements for electromechanical cylinders	Female spherical rod end bearing
Nominal size [mm]	50; 63
Weight [kg]	0.23
Material of electromechanical cylinders	Stainless steel

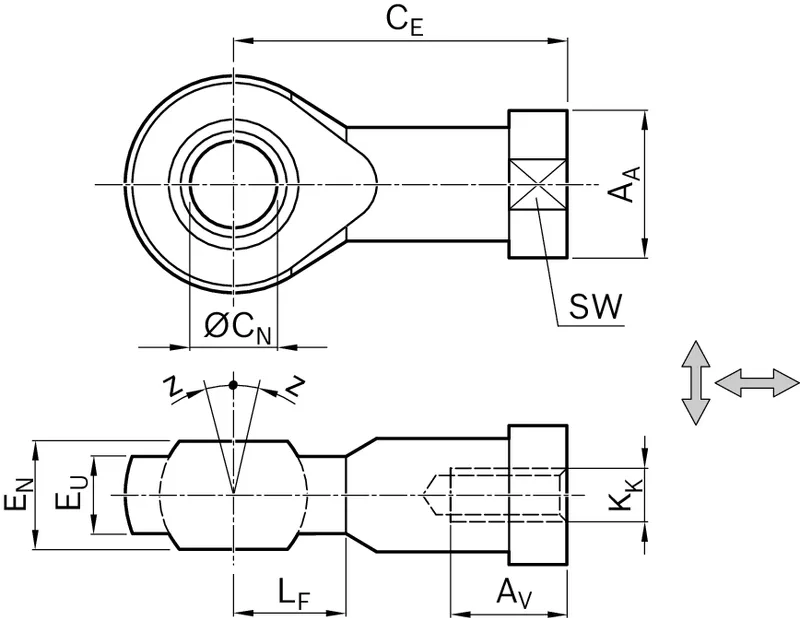

Dimension AA [mm]	29
Dimension Av min. [mm]	24
Dimension CE [mm]	64
Dimension CN H7 [mm]	16
Dimension EN [mm]	21
Dimension EN tolerance [mm]	-0.1
Dimension EU max. [mm]	15
Dimension KK	M16x1.5 mm
Dimension LF [mm]	21
Dimension SW [mm]	24
Dimension Z [°]	8
