Bosch Rexroth R349945300

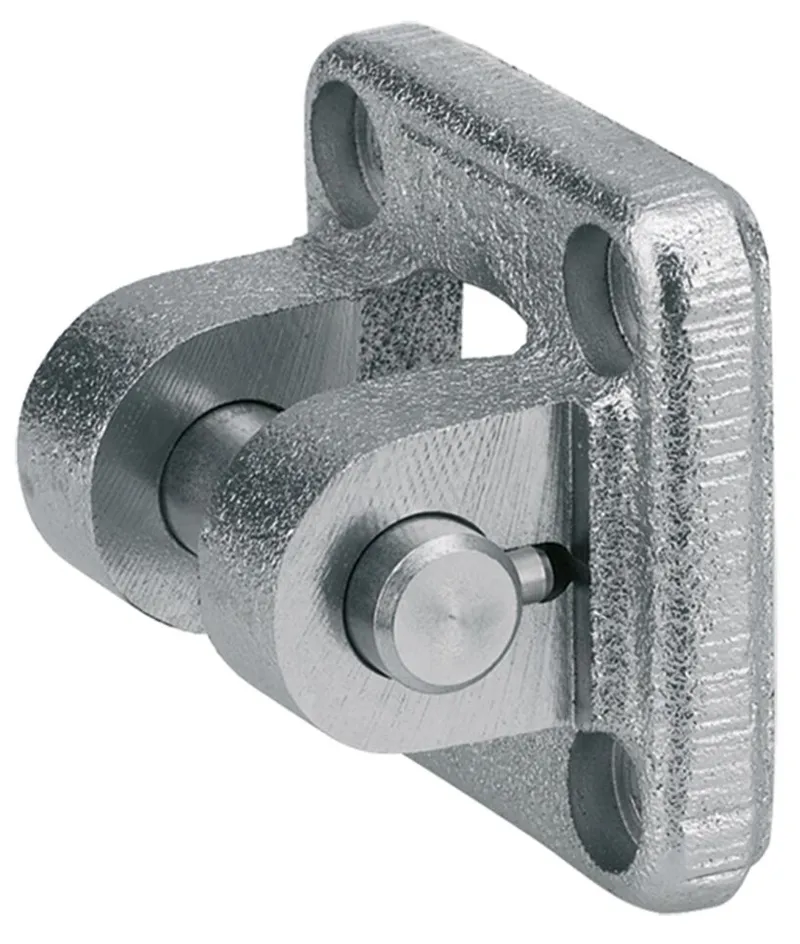

CAP DETACHABLE CLEVIS EMC50 &

MPN: R349945300
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349945300?

Group 1, option 01; group 5, option 08

Material: Aluminum/galvanized spheroidal graphite iron

Specifications

Fastening elements for electromechanical cylinders	Clevis mount
Nominal size [mm]	50
Outer diameter D [mm]	40.0
Weight [kg]	0.26
Footnote max. dynamic load	Fmax EMC
Surface finishing	forged
Pitch T guide rail [mm]	4
Material of electromechanical cylinders	Aluminum

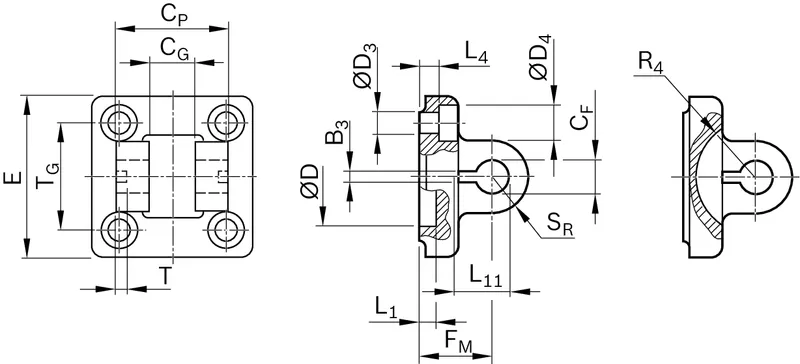

Dimension B3 [mm]	4.3
Dimension B3 tolerance [mm]	±0.2
Dimension CF F7 [mm]	16
Dimension CG D10 [mm]	21
Dimension CP d12 [mm]	45
Dimension D [mm]	40
Dimension D3 [mm]	9
Dimension D4 [mm]	15
Dimension E [mm]	67
Dimension FM [mm]	27
Dimension FM tolerance [mm]	±0.2
Dimension L1 [mm]	4.5
Dimension L1 tolerance [mm]	±0.5
Dimension L11 [mm]	23
Dimension L11 tolerance [mm]	-0.5
Dimension L4 [mm]	6.5
Dimension L4 tolerance [mm]	±0.5
Dimension R4 [mm]	22
Dimension SR [mm]	15
Dimension T [mm]	4
Dimension T tolerance [mm]	±0.2
Dimension Tg [mm]	46.5
Dimension TG [mm]	46.5
Dimension TG tolerance [mm]	±0.2
Dimension hex socket head cap screws DIN 912	M8x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M8
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20
