ADAPTER PLATE PHK 30-3 &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R161974285 be shipped?
R161974285 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R161974285 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R161974285 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161974285, subject to availability and destination.

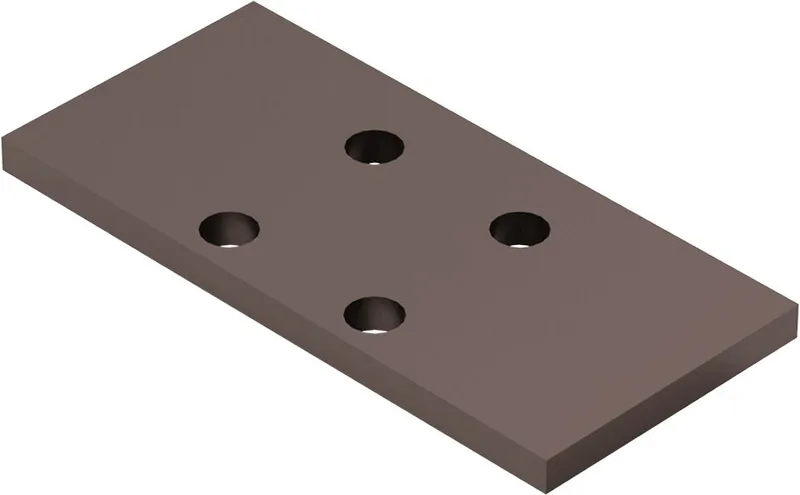

Spacer plate for clamping units HK *)
Size = 30
*) Zimmer GmbH
Suitable for assembly with high ball runner blocks SNH R1621 and SLH R1624.
Suitable for assembly with high roller runner blocks SNH R1821 and SLH R1824.
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 30 |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 0.1 |

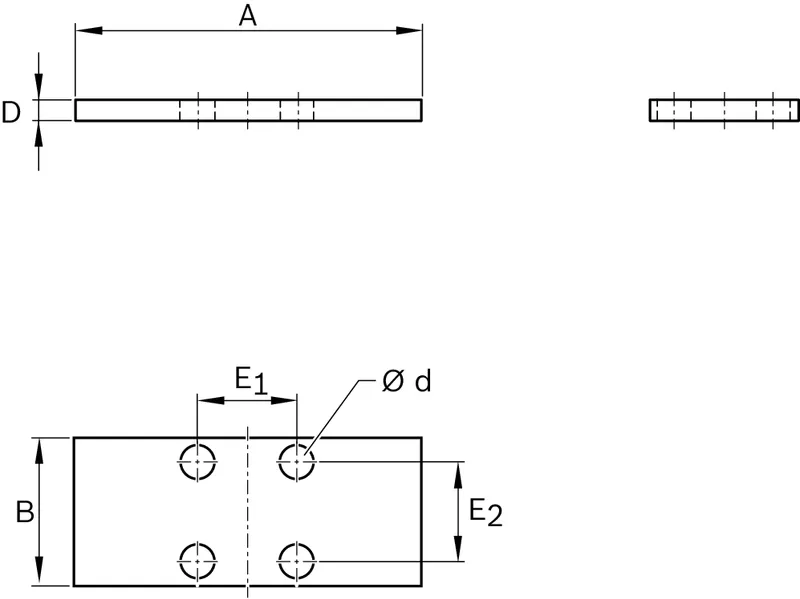

| Dimension A (profiled rail systems) [mm] | 90 |
| Dimension B (profiled rail systems) [mm] | 39 |
| Dimension D [mm] | 3 |
| Dimension d [mm] | 6.5 |
| Dimension E1 [mm] | 22 |
| Dimension E2 (profiled rail systems) [mm] | 22 |
More Bosch Rexroth parts

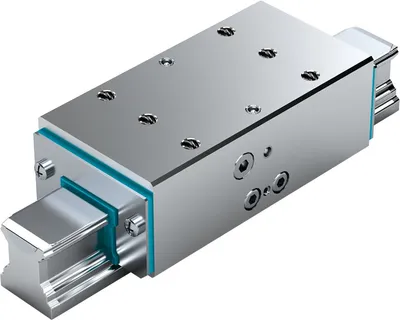

Available on requestCLAMPING ELEMENT KWH 3005 AS3A &
Available on requestCLAMPING ELEMENT KWH 3005 AS2A &
Available on requestCLAMPING ELEMENT MK 3005 AK &
Available on requestCLAMPING ELEMENT HK 3005 KR &

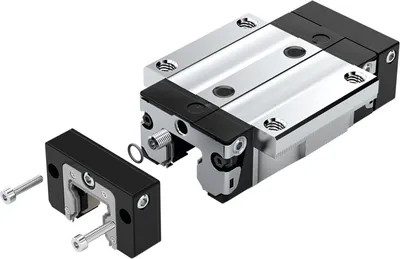

Available on requestLUBRICATING UNIT 20
