CLAMPING ELEMENT HK 3005 KR &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R161974282 be shipped?
R161974282 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R161974282 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R161974282 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161974282, subject to availability and destination.

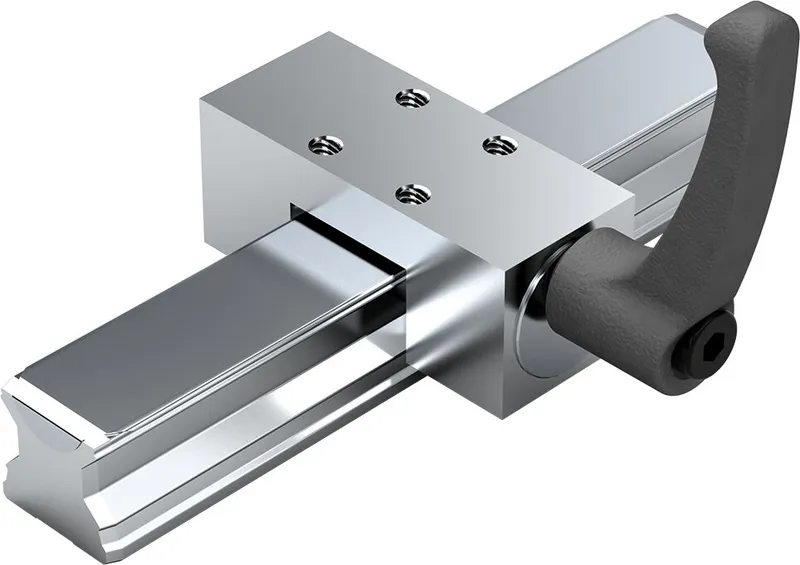

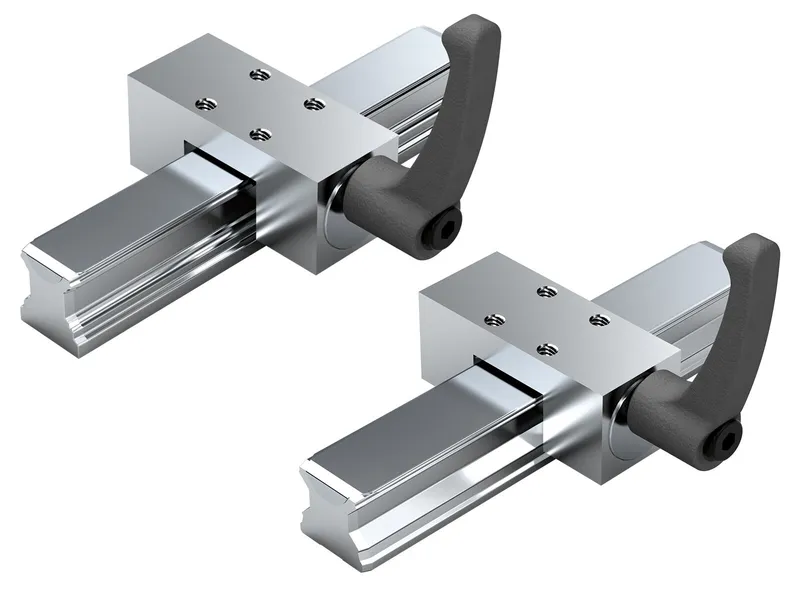

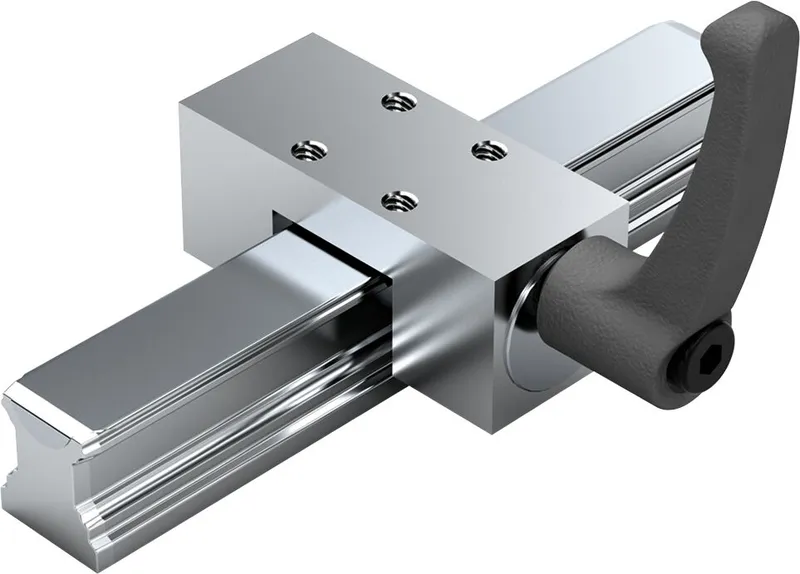

"Manual clamping unit HK *) for ball rail systems/roller rail systems
Size = 30, suitable for all ball guide rail/roller guide rail systems SNS
*) Zimmer GmbH
Simple and safe design in compact format
Manually operated Clamping Unit without auxiliary power
Freely adjustable hand lever
Precise positioning
Manual clamping unit
500,000 clamping cycles (B10d value)
Symmetrical force application on Roller Guide Rail via floating contact profiles
Holding forces up to 2000 N
Can be used on all SNS roller guide rails
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 30 |
| Tightening torque [Nm] | 15 |
| Holding force [N] | 2000 |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 0.84 |
| Footnote 1 holding force | The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |

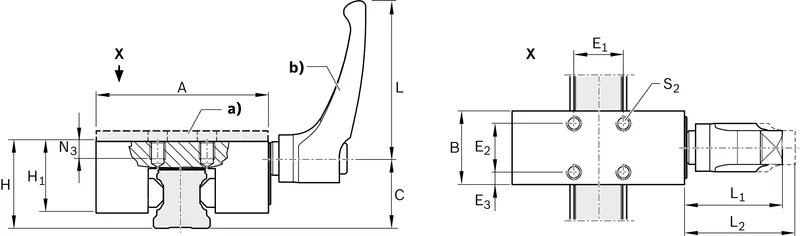

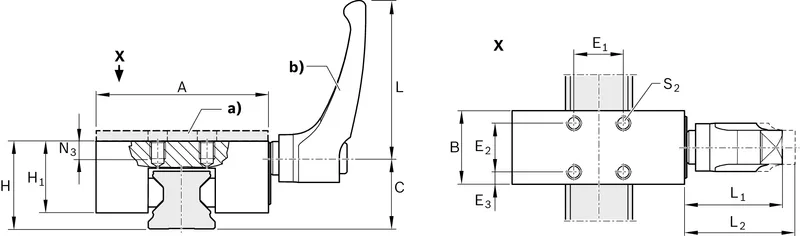

| Dimension A (profiled rail systems) [mm] | 90 |
| Dimension B (profiled rail systems) [mm] | 39 |
| Dimension C [mm] | 34 |
| Dimension E1 [mm] | 22 |
| Dimension E2 (profiled rail systems) [mm] | 22 |
| Dimension E3 (profiled rail systems) [mm] | 8.5 |
| Dimension H [mm] | 42.0 |
| Dimension H1 (profiled rail systems) [mm] | 33 |
| Dimension L [mm] | 78 |
| Dimension L1 [mm] | 46.5 |
| Dimension L2 [mm] | 50.5 |
| Dimension N3 (profiled rail systems) [mm] | 8 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M6 |
| Footnote Dimension H1 | Ball/roller runner block .H. (...High...) Spacer plate necessary. |
