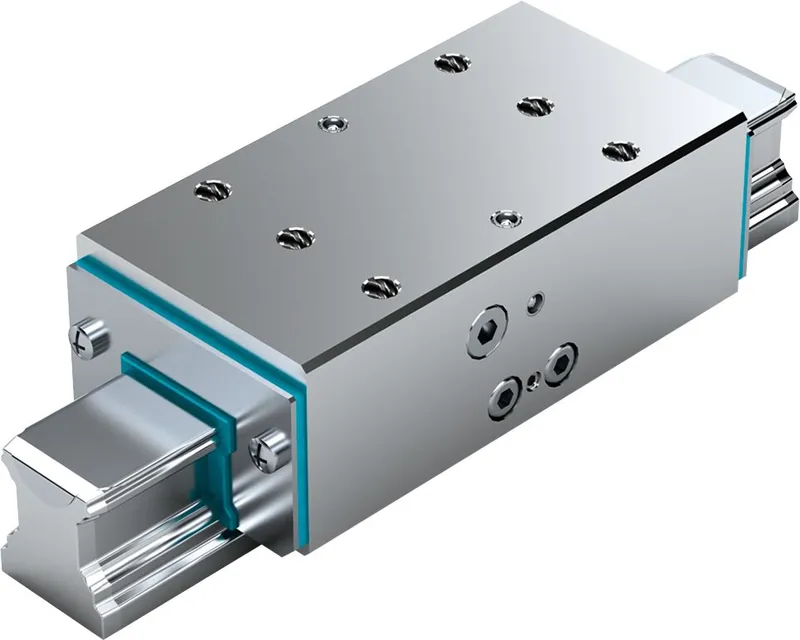

CLAMPING ELEMENT KWH 3005 AS3A &

Name: Bosch Rexroth R161974231 – CLAMPING ELEMENT KWH 3005 AS3A &
Brand: Bosch Rexroth
SKU: R161974231

MPN: R161974231 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories for ball rail systems
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R161974231 be shipped?

R161974231 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R161974231 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R161974231 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161974231, subject to availability and destination.

Hydraulic clamping unit KWH *) , SLH for ball rail systems

Size = 30

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Very high axial holding forces

Dynamic and static stabilization in the axial direction

Compact design, compatible with DIN 645

Clamps with pressure

Can be used on all SNS ball guide rails

Threaded on both sides for the hydraulic connection

Solid, rigid steel housing, chemically nickel-plated

High positioning accuracy

Integrated all-round sealing

Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage

Integrated positive-locking, large-surface contact profiles for maximum axial rigidity

10 million clamping cycles (B10d value)

Specifications

Accessories for	Runner block
Nominal size [mm]	30
Holding force [N]	3000
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	1.47
Footnote 1 holding force	The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Note: holding force 2	100 bar
Footnote displacement	Per clamping
Displacement [cm³]	0.7

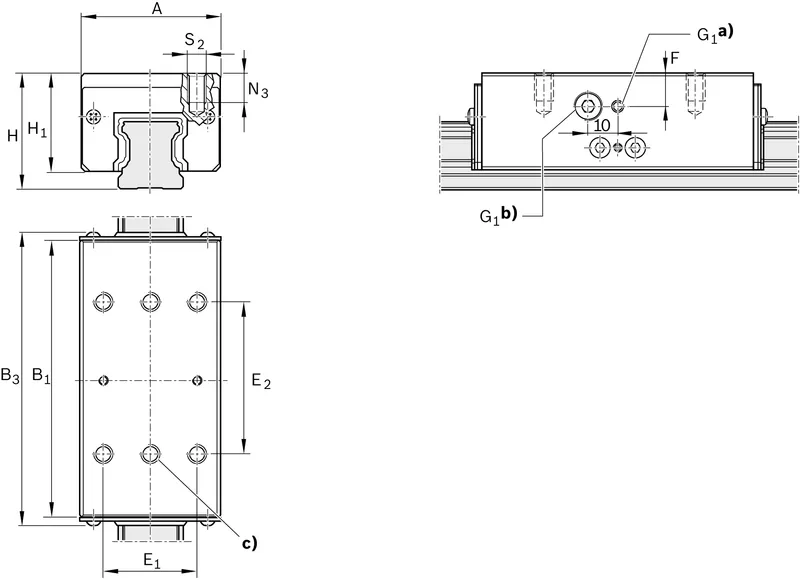

Dimension A (profiled rail systems) [mm]	60
Dimension B1 [mm]	103.5
Dimension E1 [mm]	40
Dimension E2 (profiled rail systems) [mm]	60
Dimension F [mm]	12
Dimension H [mm]	45.0
Dimension H1 (profiled rail systems) [mm]	38
Dimension N3 (profiled rail systems) [mm]	11
Dimension S2 thread diameter (profiled rail systems) [mm]	M8
