Bosch Rexroth R161954282

CLAMPING ELEMENT HK 5505 KR

MPN
R161954282
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

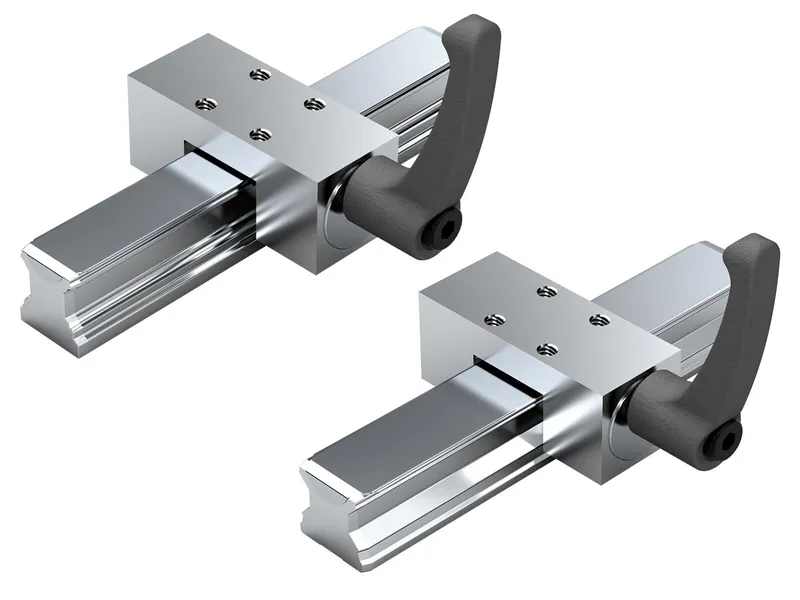

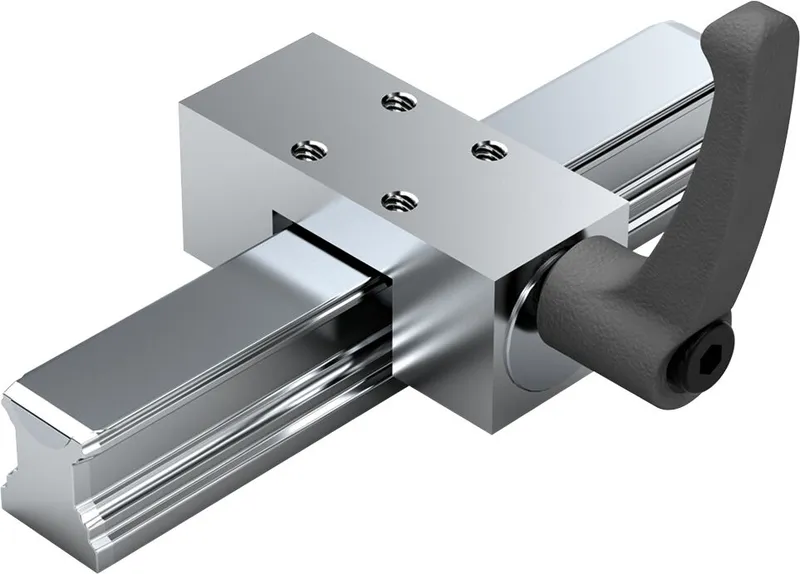

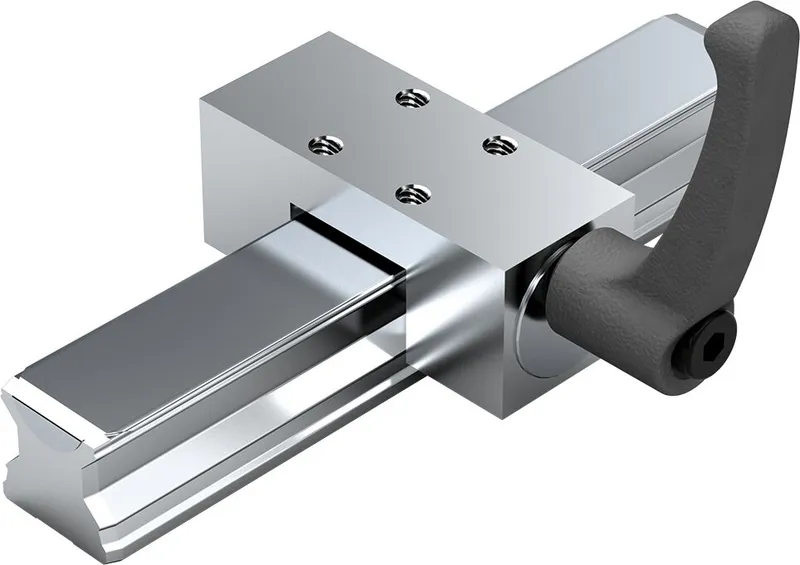

What is the Bosch Rexroth R161954282?

Manual clamping unit HK *) for ball rail systems/roller rail systems

Size = 55

Suitable for all ball guide rail/roller guide rail systems SNS

*) Zimmer GmbH

Simple and safe design in compact format

Manually operated Clamping Unit without auxiliary power

Freely adjustable hand lever

Precise positioning

Manual clamping unit

500,000 clamping cycles (B10d value)

Symmetrical force application on Roller Guide Rail via floating contact profiles

Holding forces up to 2000 N

Can be used on all SNS roller guide rails

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]55
Tightening torque [Nm]22
Holding force [N]2000
Permissible ambient temperature (min. ... max.)​0 °C ... +70 °C
Weight [kg]1.77
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68).

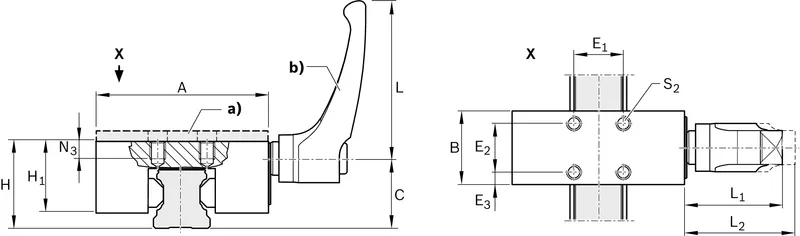

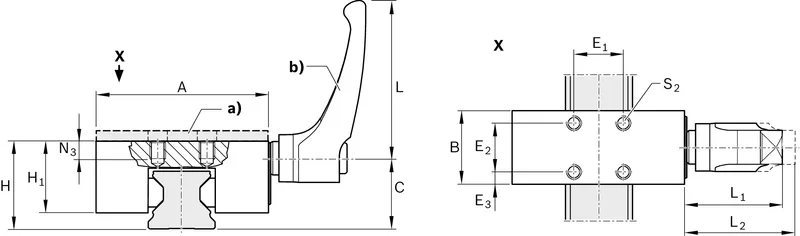

Dimension A (profiled rail systems) [mm]140
Dimension B (profiled rail systems) [mm]49
Dimension C [mm]56.5
Dimension E1 [mm]30
Dimension E2 (profiled rail systems) [mm]30
Dimension E3 (profiled rail systems) [mm]9.5
Dimension H [mm]70.0
Dimension H1 (profiled rail systems) [mm]51
Dimension L [mm]95
Dimension L1 [mm]56.5
Dimension L2 [mm]61.5
Dimension N3 (profiled rail systems) [mm]14
Dimension S2 thread diameter (profiled rail systems) [mm]M14
Footnote Dimension H1Ball/roller runner block .H. (...High...) Spacer plate necessary.

R161954282: frequently asked questions

When can R161954282 be shipped?

R161954282 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R161954282 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R161954282 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161954282, subject to availability and destination.
