Bosch Rexroth R161954231

CLAMPING ELEMENT KWH 5505 AS3A &

MPN
R161954231
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

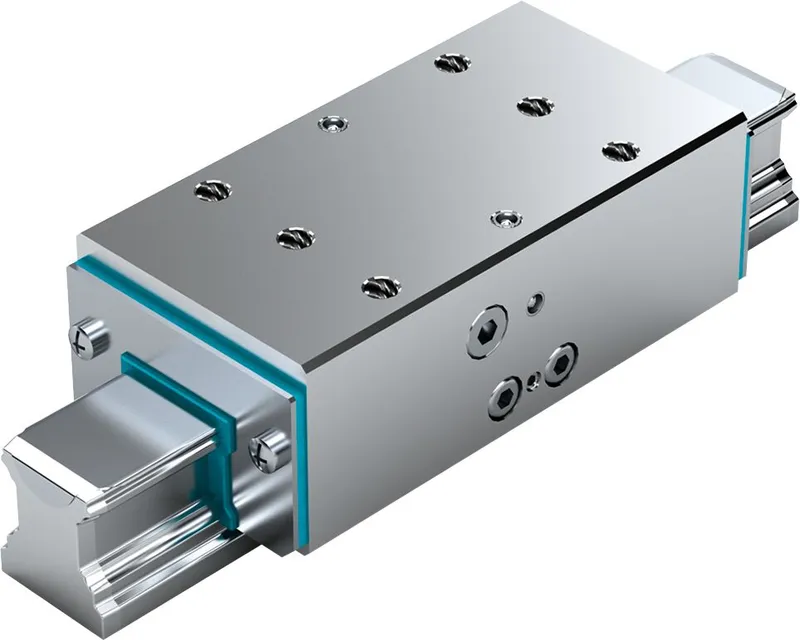

What is the Bosch Rexroth R161954231?

Hydraulic clamping unit KWH *) , SLH for ball rail systems

Size = 55

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Very high axial holding forces

Dynamic and static stabilization in the axial direction

Compact design, compatible with DIN 645

Clamps with pressure

Can be used on all SNS ball guide rails

Threaded on both sides for the hydraulic connection

Solid, rigid steel housing, chemically nickel-plated

High positioning accuracy

Integrated all-round sealing

Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage

Integrated positive-locking, large-surface contact profiles for maximum axial rigidity

10 million clamping cycles (B10d value)

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]55
Holding force [N]13700
Note: holding force 3At 150 bar
Permissible ambient temperature (min. ... max.)​0 °C ... +70 °C
Weight [kg]0.1
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Footnote displacementPer clamping
Displacement [cm³]2.4

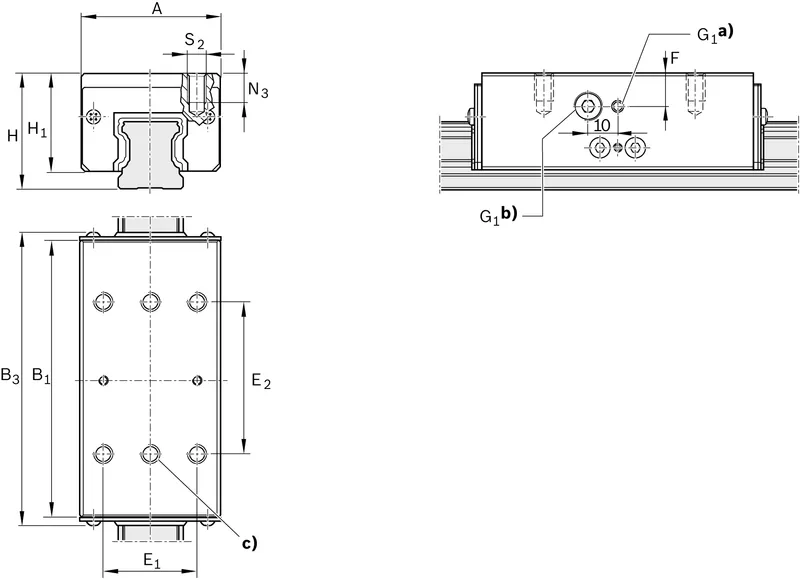

Dimension A (profiled rail systems) [mm]100
Dimension B1 [mm]184
Dimension E1 [mm]75
Dimension E2 (profiled rail systems) [mm]95
Dimension F [mm]26
Dimension H [mm]80.0
Dimension H1 (profiled rail systems) [mm]67
Dimension N3 (profiled rail systems) [mm]19
Dimension S2 thread diameter (profiled rail systems) [mm]M12

R161954231: frequently asked questions

When can R161954231 be shipped?

R161954231 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R161954231 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R161954231 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161954231, subject to availability and destination.

More Bosch Rexroth parts

Bosch Rexroth R161954051 – BRAKING ELEMENT UBPS 5505 AS1L(A) &
Bosch Rexroth
R161954051

BRAKING ELEMENT UBPS 5505 AS1L(A) &

Bosch Rexroth R161954060 – CLAMPING ELEMENT MKS 5505 AK &
Bosch Rexroth
R161954060

CLAMPING ELEMENT MKS 5505 AK &

Bosch Rexroth R161954065 – ADAPTER PLATE PMK 55-10 &
Bosch Rexroth
R161954065

ADAPTER PLATE PMK 55-10 &

Bosch Rexroth R161954211 – CLAMPING ELEMENT KWH 5505 AS1A
Bosch Rexroth
R161954211

CLAMPING ELEMENT KWH 5505 AS1A

Bosch Rexroth R161954251 – CLAMPING ELEMENT KWH 5505 AS2A &
Bosch Rexroth
R161954251

CLAMPING ELEMENT KWH 5505 AS2A &

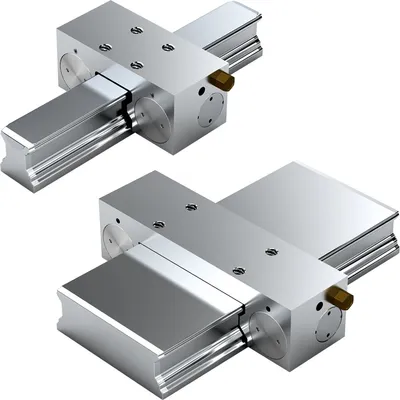

Bosch Rexroth R161954260 – CLAMPING ELEMENT MK 5505 AK &
