CLAMPING ELEMENT MK 5505 AK &
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R161954260 be shipped?
R161954260 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R161954260 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R161954260 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R161954260, subject to availability and destination.

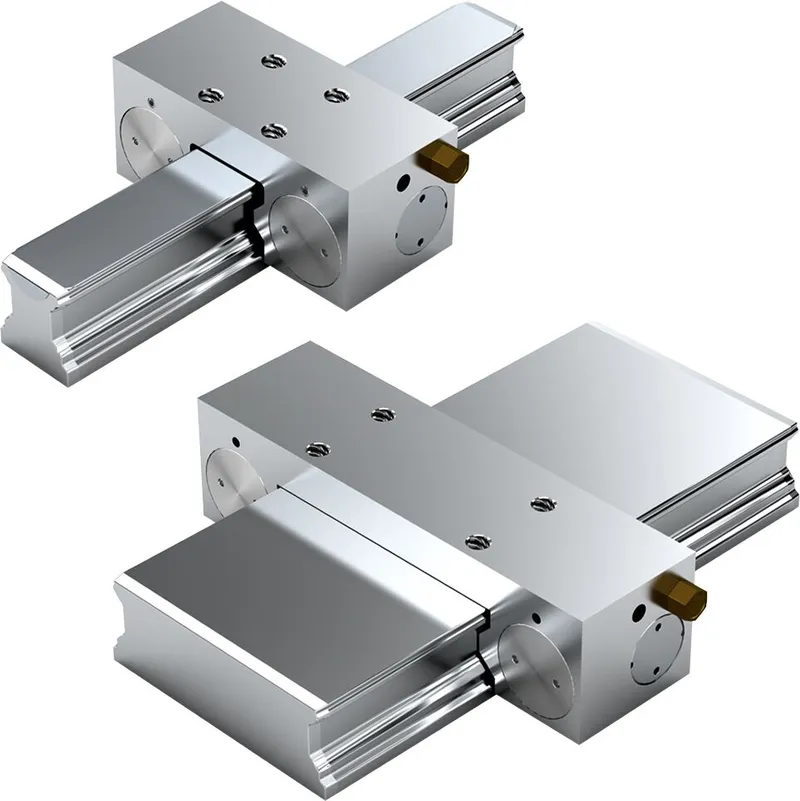

Pneumatic clamping unit MK *) for ball rail systems
Size = 55
Can be used on all SNS ball guide rails
*) Zimmer GmbH
High axial holding forces with short format
Dynamic and static stabilization in the axial direction
Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio
Easy mounting
Clamps with compression (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.
Chemically nickel-plated steel housing
High axial and horizontal rigidity
Precise positioning
Continuously adjustable pressure from 4 - 8 bar
Decompression with spring force. A preloaded return spring allows for short decompression cycles.
5 million clamping cycles (B10d value)
Specifications
Specifications
| Accessories for | Runner block |
| Version | All ball guide rails SNS |
| Nominal size [mm] | 55 |
| Note: spring energy holding force with standard air port | Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 1.93 |
| Air consumption (normal liter) standard air port [dm³/stroke] | 0.041 |

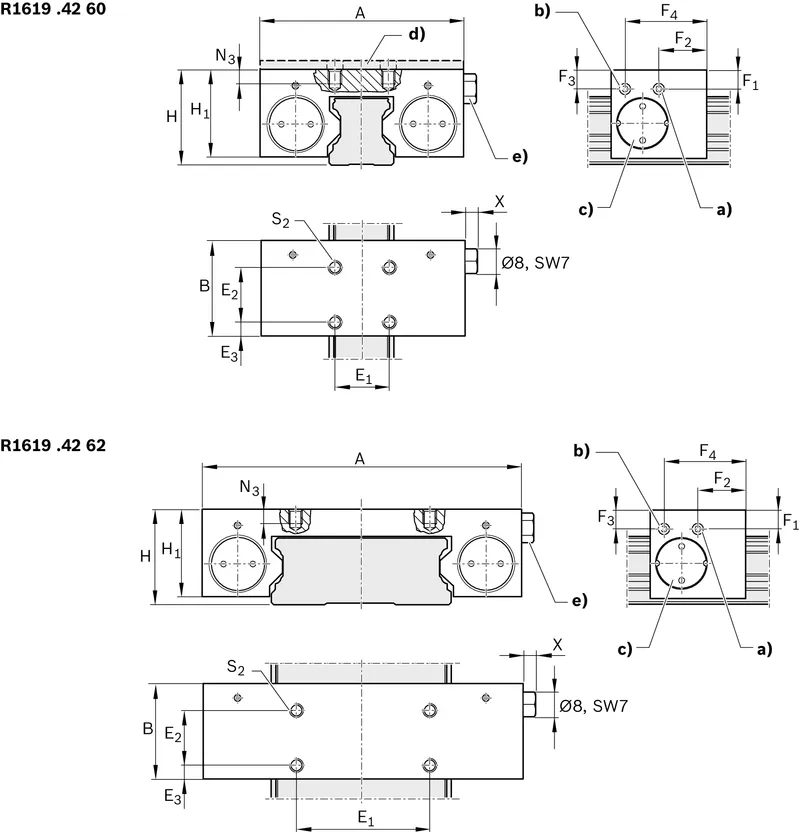

| Dimension A (profiled rail systems) [mm] | 128 |
| Dimension B (profiled rail systems) [mm] | 49 |
| Dimension E1 [mm] | 30 |
| Dimension E2 (profiled rail systems) [mm] | 30 |
| Dimension E3 (profiled rail systems) [mm] | 9.5 |
| Dimension F1 [mm] | 17 |
| Dimension F2 [mm] | 19.5 |
| Dimension H [mm] | 70.0 |
| Dimension H1 (profiled rail systems) [mm] | 57 |
| Dimension N3 (profiled rail systems) [mm] | 15 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M10 |
| Dimension X (profiled rail systems) [mm] | 5.5 |
| Footnote Dimension H1 | Ball runner block .H. (...High...) Spacer plate necessary. |
