Bosch Rexroth R161934211

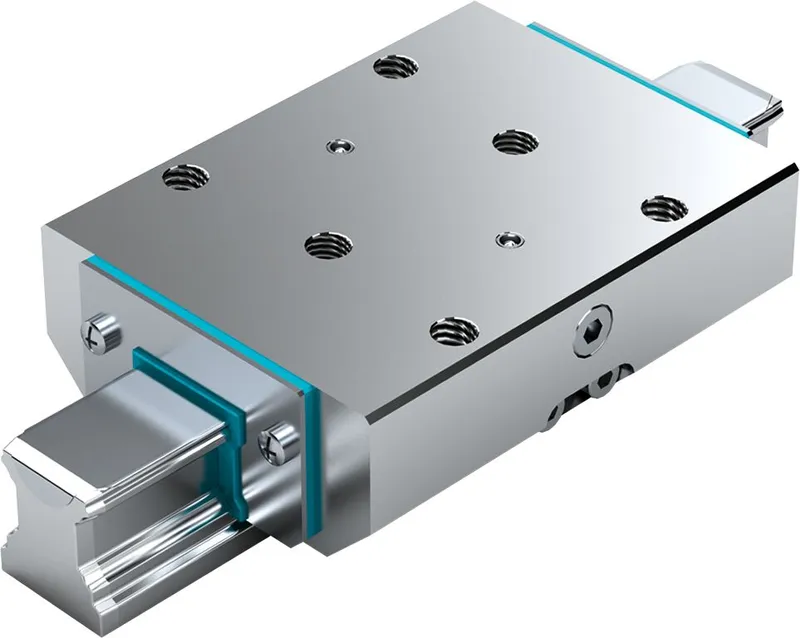

CLAMPING ELEMENT KWH 3505 AS1A

MPN: R161934211
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161934211?

Hydraulic clamping unit KWH *) , FLS for ball rail systems

Size = 35

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Very high axial holding forces

Dynamic and static stabilization in the axial direction

Compact design, compatible with DIN 645

Clamps with pressure

Can be used on all SNS ball guide rails

Threaded on both sides for the hydraulic connection

Solid, rigid steel housing, chemically nickel-plated

High positioning accuracy

Integrated all-round sealing

Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage

Integrated positive-locking, large-surface contact profiles for maximum axial rigidity

10 million clamping cycles (B10d value)

Specifications

Accessories for	Runner block
Nominal size [mm]	35
Holding force [N]	5700
Note: holding force 3	At 150 bar
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	2.67
Footnote 1 holding force	The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Displacement footnote	Per clamping
Displacement [cm³]	1.1

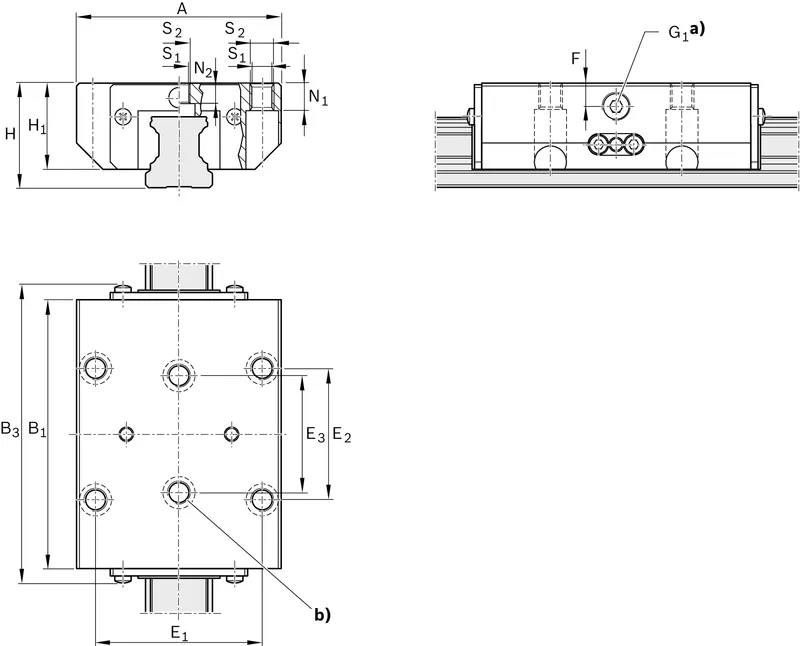

Dimension A (profiled rail systems) [mm]	100
Dimension B1 [mm]	120.5
Dimension E1 [mm]	82
Dimension E2 (profiled rail systems) [mm]	62
Dimension E3 (profiled rail systems) [mm]	52
Dimension F [mm]	12
Dimension H [mm]	48.0
Dimension H1 (profiled rail systems) [mm]	40
Dimension N1 (profiled rail systems) [mm]	12
Dimension N2 (profiled rail systems) [mm]	10.2
Dimension S1 (profiled rail systems) [mm]	8.6
Dimension S2 thread diameter (profiled rail systems) [mm]	M10
