Bosch Rexroth R161934251

CLAMPING ELEMENT KWH 3505 AS2A &

MPN
R161934251
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161934251?

Hydraulic clamping unit KWH *) , SLS for ball rail systems

Size = 35

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Very high axial holding forces

Dynamic and static stabilization in the axial direction

Compact design, compatible with DIN 645

Clamps and brakes with pressure

Can be used on all SNS ball guide rails

Threaded on both sides for the hydraulic connection

Solid, rigid steel housing, chemically nickel-plated

High positioning accuracy

Integrated all-round sealing

Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage

Integrated positive-locking, large-surface contact profiles for maximum axial rigidity

10 million clamping cycles (B10d value)

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]35
Holding force [N]3500
Permissible ambient temperature (min. ... max.)​0 °C ... +70 °C
Weight [kg]1.25
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Note: holding force 2100 bar
Displacement footnotePer clamping
Displacement [cm³]1.1

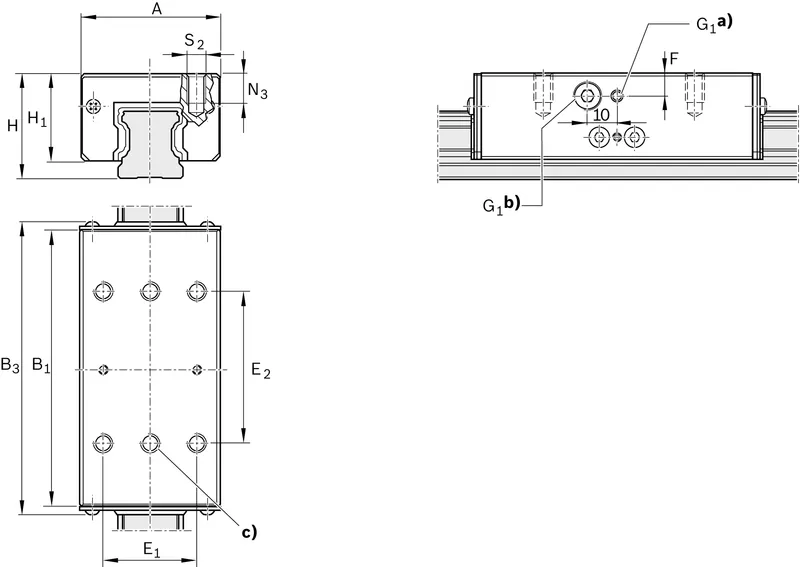

Dimension A (profiled rail systems) [mm]70
Dimension B1 [mm]120.5
Dimension E1 [mm]50
Dimension E2 (profiled rail systems) [mm]72
Dimension F [mm]12
Dimension H [mm]48.0
Dimension H1 (profiled rail systems) [mm]40
Dimension N3 (profiled rail systems) [mm]13
Dimension S2 thread diameter (profiled rail systems) [mm]M8
