Bosch Rexroth R161934060

CLAMPING ELEMENT MKS 3505 AK &

MPN: R161934060
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

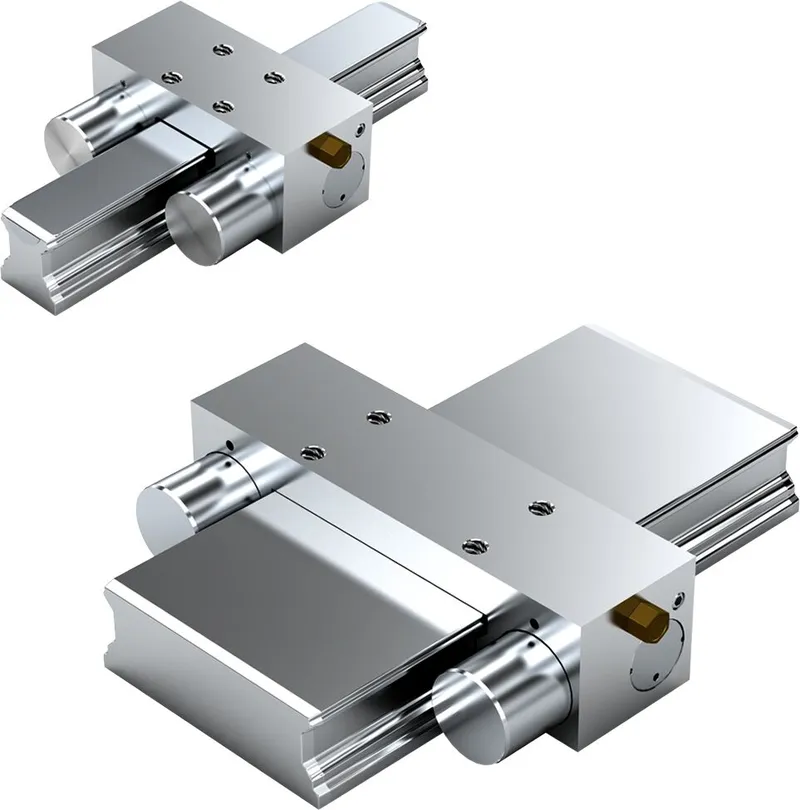

What is the Bosch Rexroth R161934060?

Pneumatic clamping unit MKS *) for ball rail systems

Size = 35

Can be used on all SNS ball guide rails

*) Zimmer GmbH

High axial holding forces with short format

Dynamic and static stabilization in the axial direction

Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio

Easy mounting

Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.

Chemically nickel-plated steel housing

High axial and horizontal rigidity

Precise positioning

Higher holding force due to the air-plus port

Pneumatic decompression Release pressure 5.5 - 8 bar

5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection

An integrated quick-exhaust valve ensures short response times.

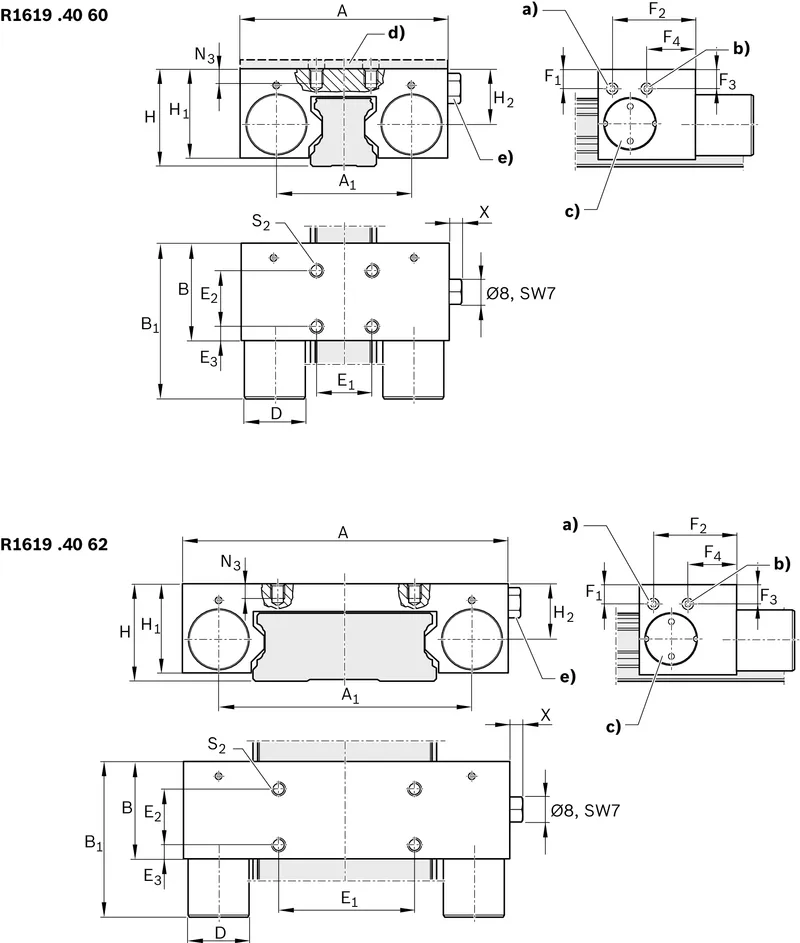

Specifications

Accessories for	Runner block
Version	All ball guide rails SNS
Nominal size [mm]	35
Note: spring energy holding force with standard air port	Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	1.02
Footnote for spring energy holding force with air-plus port	Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2 or 5/3-way directional control valve.
Air consumption (normal liter) standard air port [dm³/stroke]	0.031
Dimension A (profiled rail systems) [mm]	100
Dimension A1 (profiled rail systems) [mm]	68
Dimension B (profiled rail systems) [mm]	39
Dimension D [mm]	28
Dimension E1 [mm]	24
Dimension E2 (profiled rail systems) [mm]	24
Dimension E3 (profiled rail systems) [mm]	7.5
Dimension F1 [mm]	12
Dimension F2 [mm]	24.5
Dimension H [mm]	48.0
Dimension H1 (profiled rail systems) [mm]	44
Dimension H2 (profiled rail systems) [mm]	28
Dimension N3 (profiled rail systems) [mm]	10
Dimension S2 thread diameter (profiled rail systems) [mm]	M8
Dimension X (profiled rail systems) [mm]	5.5
Footnote Dimension H1	Ball runner block .H. (...High...) Spacer plate necessary.
Height of guide rail H2 [mm]	28.0
