What is the Bosch Rexroth R161934021?

Hydraulic braking unit KBH (hydraulic clamping and braking units) *) , FLS for ball rail systems

Size = 35

Can be used on all SNS ball guide rails

*) Zimmer GmbH

Very high axial holding forces

Dynamic and static stabilization in the axial direction

Heavy-duty brake

Compact design, compatible with DIN 645

Clamps and brakes with pressure

Can be used on all SNS ball guide rails

Up to 1 million clamping cycles

Up to 2,000 emergency braking operations

Threaded on both sides for the hydraulic connection

Solid, rigid steel housing, chemically nickel-plated

High positioning accuracy

Release pressure 150 bar

Integrated all-round sealing

Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage

Brake shoes with integrated positive-locking, large-surface contact profiles for maximum axial rigidity

Super heavy-duty model

Low displacement

10 million clamping cycles (B10d value)

Specifications

Specifications

Accessories forRunner block
Nominal size [mm]35
Holding force [N]5700
Note: holding force 3At 150 bar
Permissible ambient temperature (min. ... max.)​0 °C ... +70 °C
Weight [kg]2.8
Footnote 1 holding forceThe inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Displacement footnotePer clamping
Displacement [cm³]1.1

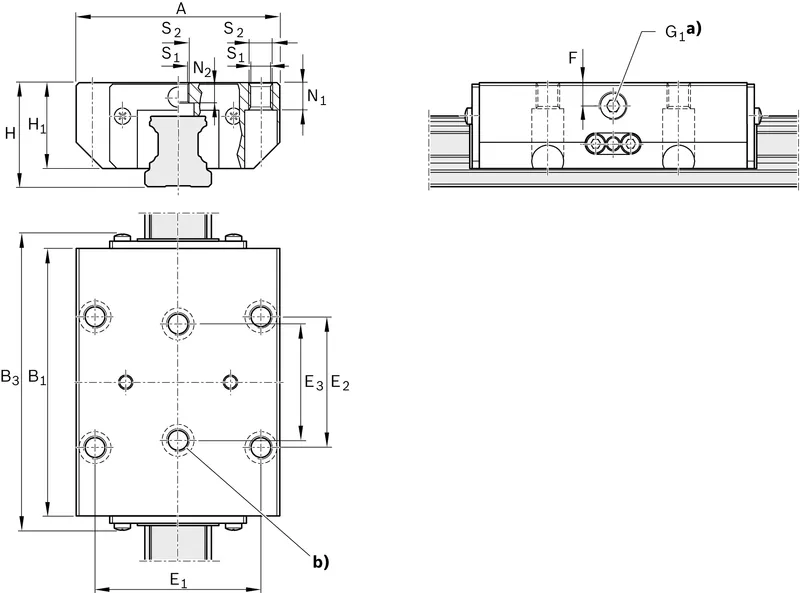

Dimension A (profiled rail systems) [mm]100
Dimension B1 [mm]120.5
Dimension E1 [mm]82
Dimension E2 (profiled rail systems) [mm]62
Dimension E3 (profiled rail systems) [mm]52
Dimension F [mm]12
Dimension H [mm]48.0
Dimension H1 (profiled rail systems) [mm]40
Dimension N1 (profiled rail systems) [mm]12
Dimension N2 (profiled rail systems) [mm]10.2
Dimension S1 (profiled rail systems) [mm]8.6
Dimension S2 thread diameter (profiled rail systems) [mm]M10
