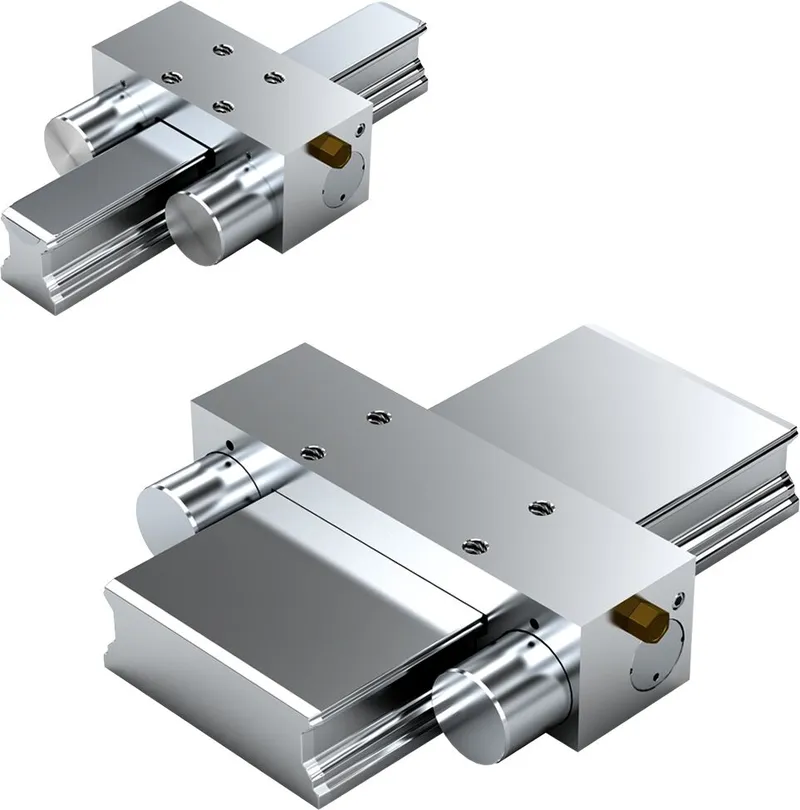

Bosch Rexroth R161924062

CLAMPING ELEMENT MKS 2505 KB &

MPN: R161924062
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R161924062?

Pneumatic clamping unit MKS *) for ball rail systems

Size = 25

Can be used on all SNS ball guide rails

*) Zimmer GmbH

High axial holding forces with short format

Dynamic and static stabilization in the axial direction

Simple mechanical gripping principle in LCP and LCPS with good price/performance ratio

Easy mounting

Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.

Chemically nickel-plated steel housing

High axial and horizontal rigidity

Precise positioning

Higher holding force due to the air-plus port

Pneumatic decompression Release pressure 5.5 - 8 bar

5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection

An integrated quick-exhaust valve ensures short response times.

Specifications

Accessories for	Runner block
Version	All ball guide rails BNS
Nominal size [mm]	25/70
Note: spring energy holding force with standard air port	Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Weight [kg]	0.65
Footnote for spring energy holding force with air-plus port	Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2 or 5/3-way directional control valve.
Air consumption (normal liter) standard air port [dm³/stroke]	0.021

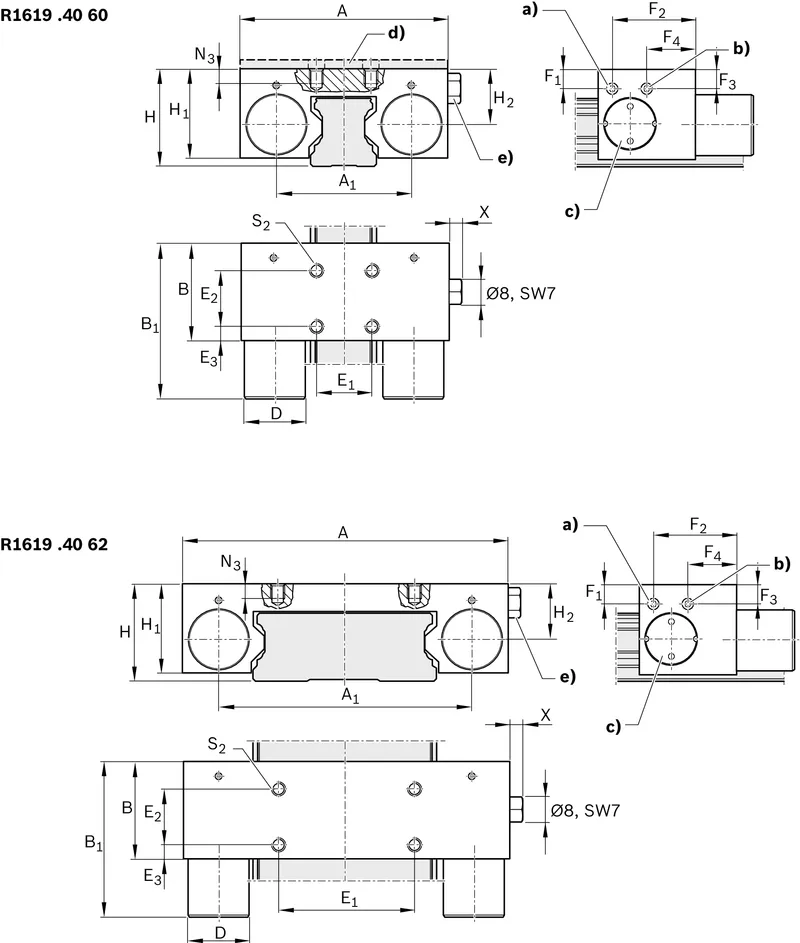

Dimension A (profiled rail systems) [mm]	120
Dimension A1 (profiled rail systems) [mm]	94
Dimension B (profiled rail systems) [mm]	35
Dimension D [mm]	22
Dimension E1 [mm]	50
Dimension E2 (profiled rail systems) [mm]	20
Dimension E3 (profiled rail systems) [mm]	5
Dimension F1 [mm]	9
Dimension F2 [mm]	30
Dimension H [mm]	35.0
Dimension H1 (profiled rail systems) [mm]	32.5
Dimension H2 (profiled rail systems) [mm]	20
Dimension N3 (profiled rail systems) [mm]	8
Dimension S2 thread diameter (profiled rail systems) [mm]	M6
Dimension X (profiled rail systems) [mm]	5.5
Footnote Dimension H1	Ball runner block .H. (...High...) Spacer plate necessary.
Height of guide rail H2 [mm]	20.0
