Bosch Rexroth R161924031
BRAKING ELEMENT MBPS 2505 AS1A
- MPN
- R161924031
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R161924031?

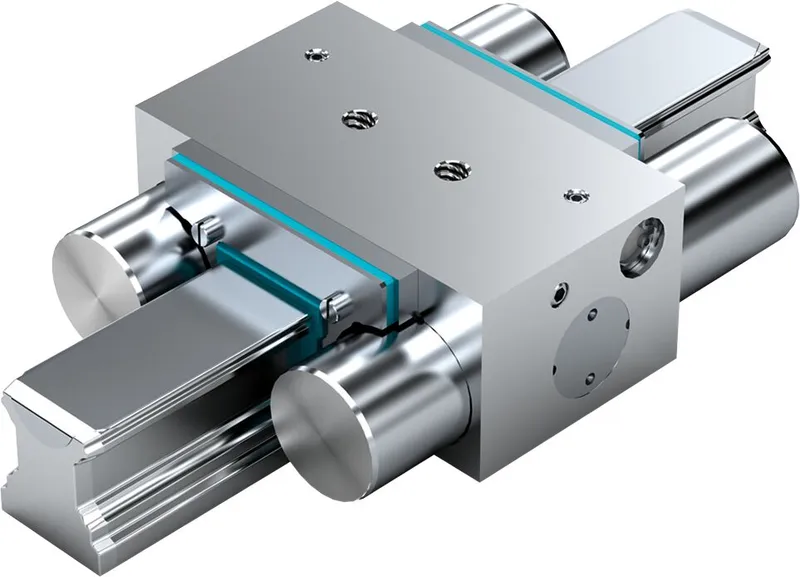

Pneumatic braking unit MBPS *) , FLS for ball rail systems
Size = 25
Can be used on all SNS ball guide rails
*) Zimmer GmbH
Clamps and brakes with spring energy accumulator
Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
Dynamic and static stabilization in the axial direction
Clamps and brakes without pressurization (spring energy)
Clamping and Braking Units in short format
Up to 1 million clamping cycles
Up to 2,000 emergency braking operations
Integrated all-round sealing
High continuous output
High positioning accuracy
Mechanical gate valve gear mechanism
Solid, rigid steel housing, chemically nickel-plated
Low air consumption
Maintenance-free
5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
Can be used on all SNS ball guide rails
Add-ons with three pistons connected in series combined with strong springs result in holding forces up to 4,700 N at just 4.5 bar release pressure
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 25 |
| Note: spring energy holding force with standard air port | Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Weight [kg] | 0.73 |
| Air consumption (normal liter) standard air port [dm³/stroke] | 0.048 |

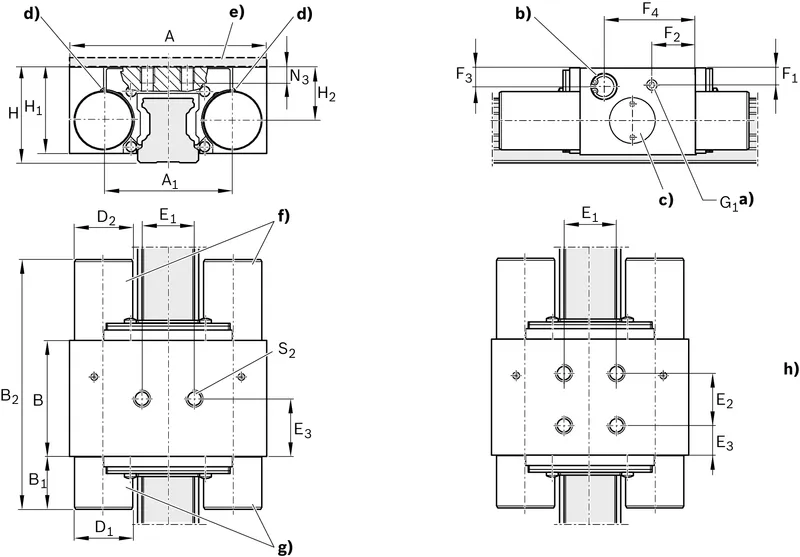

| Dimension A (profiled rail systems) [mm] | 75 |
| Dimension A1 (profiled rail systems) [mm] | 49 |
| Dimension B (profiled rail systems) [mm] | 44 |
| Dimension B1 [mm] | 21 |
| Dimension D1 [mm] | 22 |
| Dimension D2 [mm] | 22 |
| Dimension E1 [mm] | 20 |
| Dimension E3 (profiled rail systems) [mm] | 21 |
| Dimension F1 [mm] | 6.5 |
| Dimension F2 [mm] | 16.5 |
| Dimension H [mm] | 36.0 |
| Dimension H1 (profiled rail systems) [mm] | 32.5 |
| Dimension H2 (profiled rail systems) [mm] | 20 |
| Dimension N3 (profiled rail systems) [mm] | 8 |
| Dimension S2 thread diameter (profiled rail systems) [mm] | M6 |
| Footnote Dimension H1 | Ball runner block .H. (...High...) Spacer plate necessary. |
| Height of guide rail H2 [mm] | 20.0 |
