Bosch Rexroth R159402000

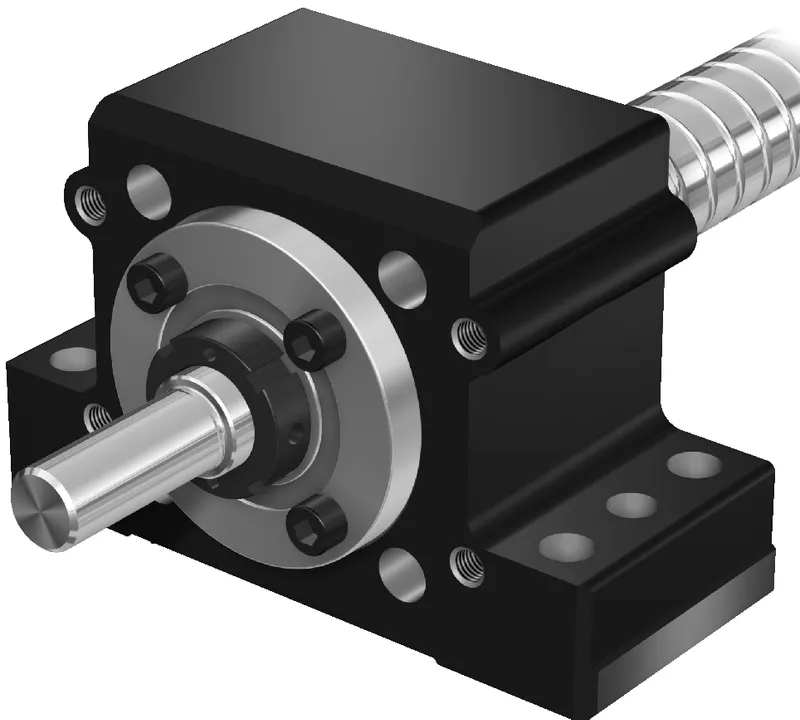

PILLOW BLOCK SEC-F-Z 20

MPN: R159402000
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159402000?

The pillow block unit consists of: Precision pillow block housing made of aluminum with reference edges on both sides, angular-contact thrust ball bearing LGF, slotted nut NMZ, suitable for screw ends type 81, 81A, 82, 82A

The pillow block unit consists of:

Precision pillow block housing made of aluminum with reference edges on both sides

Angular-contact thrust ball bearing LGF

Slotted nut NMZ

Suitable for screw end form 81, 81A, 82, 82A

Specifications

Nominal size [mm]	32x5/10/20/32/64
Type	Angular-contact thrust ball bearing
Tightening torque [Nm]	18
Dynamic load capacity C [N]	26000.0
Note: dynamic load capacity C	Load capacities (axial)
Weight [kg]	1.92
Limit speed nmin [min⁻¹]	3000
Static load capacity C0 [N]	47000.0
Note: static load capacity C0	Load capacities (axial)
Rigidity of the bearing (axial) RFB [N/μm]	650
Dimension B (profiled rail systems) [mm]	28
Dimension D [mm]	68
Dimension d [mm]	20
Dimension H1 (profiled rail systems) [mm]	46
Dimension H3 [mm]	28
Dimension L1 [mm]	40
Dimension L2 [mm]	58
Dimension L3 [mm]	18
Dimension L4 [mm]	20
Dimension M1 [mm]	72.5
Dimension S2 [mm]	9.7
Dimension V1 [mm]	90
Dimension V2 [mm]	46
