Bosch Rexroth R159033030

BEARING LAF-C-A 30 BG

MPN: R159033030
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

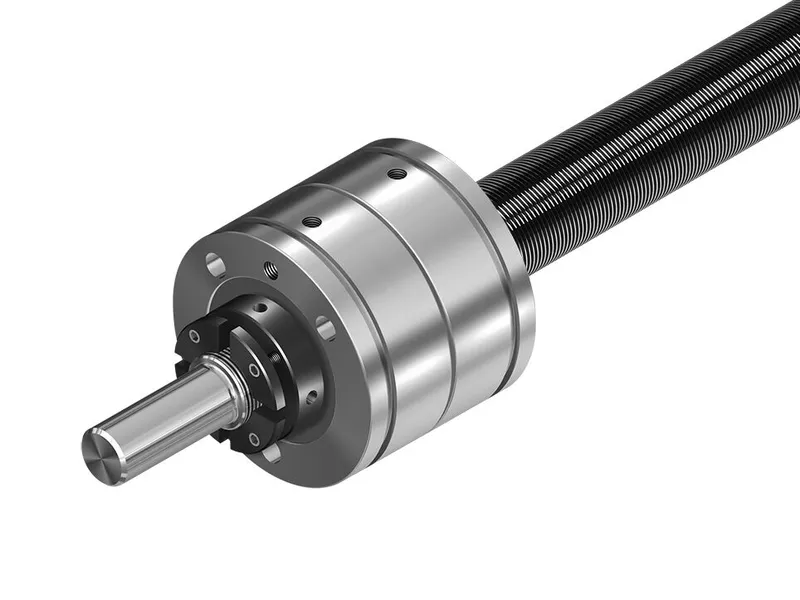

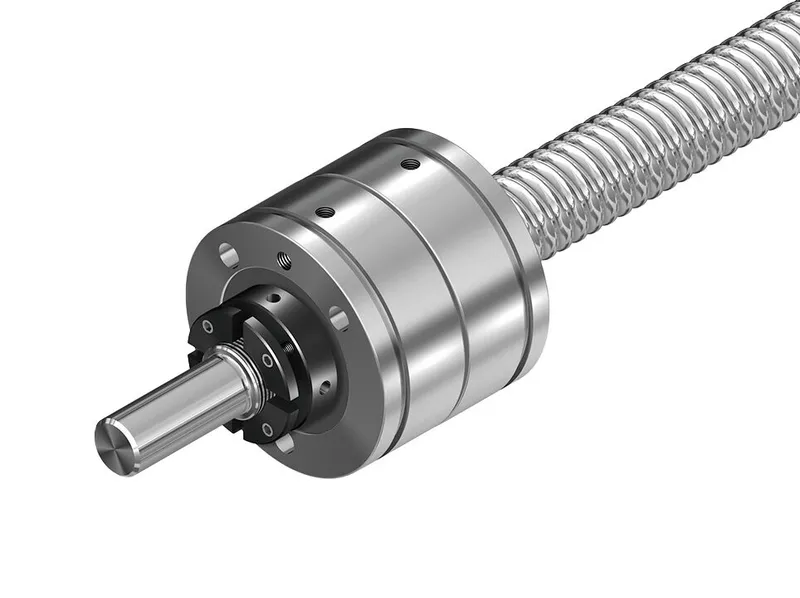

What is the Bosch Rexroth R159033030?

The fixed bearing consists of: Angular-contact thrust ball bearing LGF, slotted nut NMA or NMZ. Suitable for screw end type◡51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A

The bearing assembly consists of:

angular-contact thrust ball bearing LGF (not available as a separate part)

Slotted nut NMA

Suitable for screw end form 112, 122, 512, 812, 822, 912, 922

Specifications

Nominal size [mm]	39 x 5/10; 50 x 10/12/16/20/25/30/40
Type	Angular-contact thrust ball bearing
Dynamic load capacity C [N]	47500.0
Outer diameter D [mm]	80.0
Weight [kg]	1.67
Limit speed (grease) nmax	2200
Limit speed nmin [min⁻¹]	2200
Static load capacity C0 [N]	127000.0
Rigidity against tilting Rkl [Nm/mrad]	620
Bearing frictional torque with seal MRb [Nm]	0.75
Rigidity of the bearing (axial) RFB [N/μm]	1500

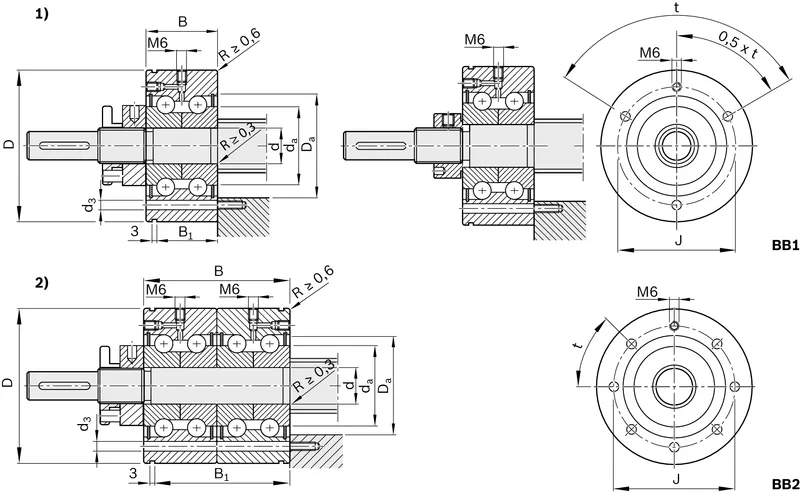

Dimension B (profiled rail systems) [mm]	56
Dimension D [mm]	80
Dimension d [mm]	30
Dimension d tolerance [mm]	-0.005
Dimension J [mm]	63
