Bosch Rexroth R159042000

BEARING LAL-A-G 20 BG

MPN: R159042000
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159042000?

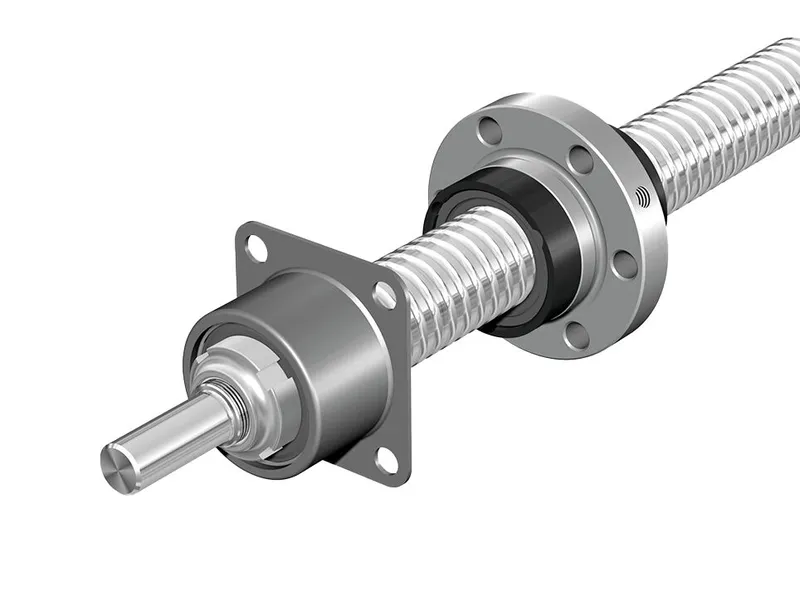

The fixed bearing consists of: Angular-contact thrust ball bearing LGL, slotted nut NMG, NMZ. Suitable for screw end type 81, 81A, 82, 82A, 831/83, 83A, 841/84, 84A

Double-thrust, screw-down, for inexpensive designs

The fixed bearing consists of:

Angular-contact thrust ball bearing LGL

Slotted nuts NMG, NMZ

Suitable for screw end form 81, 81A, 82, 82A, 831/83, 83A, 841/84, 84A

Specifications

Nominal size [mm]	32 x 5/10
Type	Angular-contact thrust ball bearing
Dynamic load capacity C [N]	27500.0
Note: dynamic load capacity C	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Outer diameter D [mm]	50.45
Weight [kg]	0.33
Static load capacity C0 [N]	40000.0
Note: static load capacity C0	Load on bearing (see general technical notes and information for bearings, "Project planning notes")

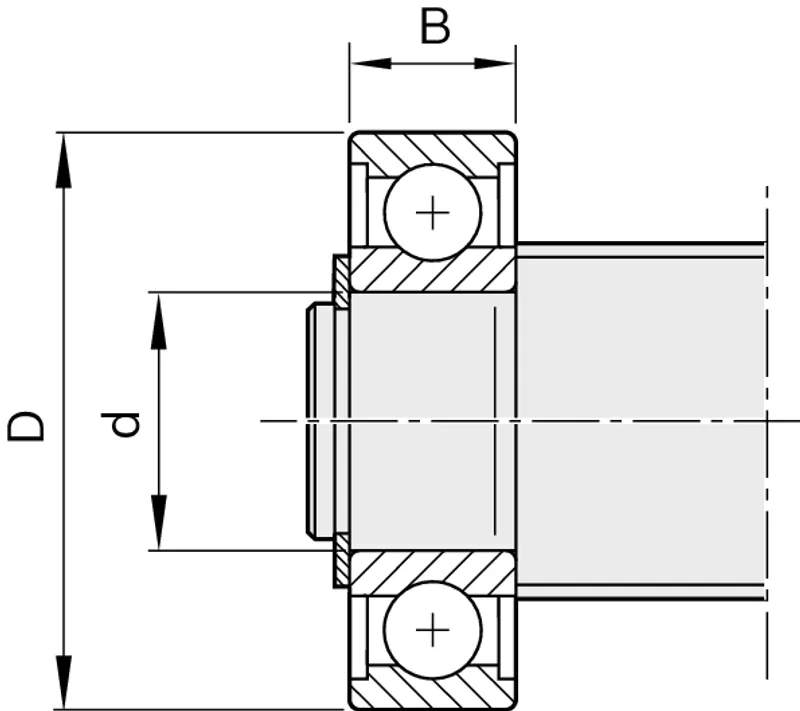

Dimension A1 (profiled rail systems) [mm]	60
Dimension A2 (profiled rail systems) [mm]	60
Dimension B (profiled rail systems) [mm]	28
Dimension D [mm]	50.45
Dimension d [mm]	20
Tolerance D [mm]	+0.03; -0.01
Dimension d2 [mm]	6.6
Dimension H [mm]	30.0
