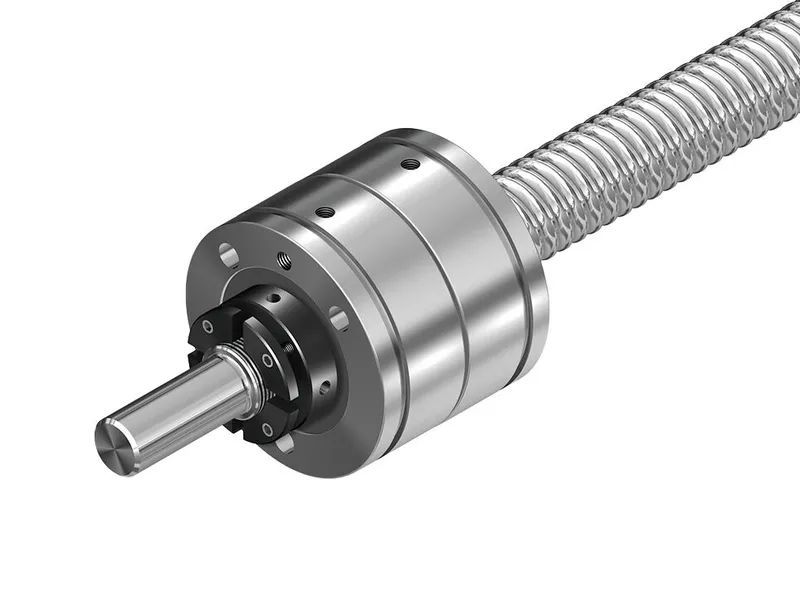

What is the Bosch Rexroth R159032530?

The fixed bearing consists of: Angular-contact thrust ball bearing LGF, slotted nut NMA or NMZ. Suitable for screw end type◡51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A

The fixed bearing consists of:

Angular-contact thrust ball bearing LGF

Slotted nut NMA or NMZ

Suitable for screw end form 51, 51A, 52, 52A, 81, 81A, 82, 82A, 91, 91A, 92, 92A

Specifications

Nominal size [mm]	40 x 10/12/16/20/25/30/40
Type	Angular-contact thrust ball bearing
Dynamic load capacity C [N]	44500.0
Note: dynamic load capacity C	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Outer diameter D [mm]	75.0
Weight [kg]	1.54
Limit speed (grease) nmax	2600
Limit speed nmin [min⁻¹]	2600
Static load capacity C0 [N]	111000.0
Note: static load capacity C0	Load on bearing (see general technical notes and information for bearings, "Project planning notes")
Rigidity against tilting Rkl [Nm/mrad]	450
Bearing frictional torque with seal MRb [Nm]	0.6
Rigidity of the bearing (axial) RFB [N/μm]	1300

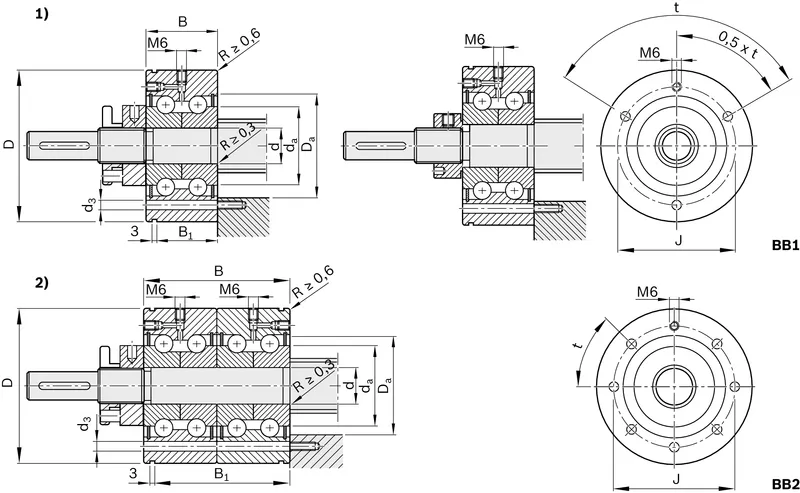

Dimension B (profiled rail systems) [mm]	56
Dimension D [mm]	75
Dimension d [mm]	25
Dimension d tolerance [mm]	-0.005
Dimension J [mm]	58
