Bosch Rexroth R15616A002

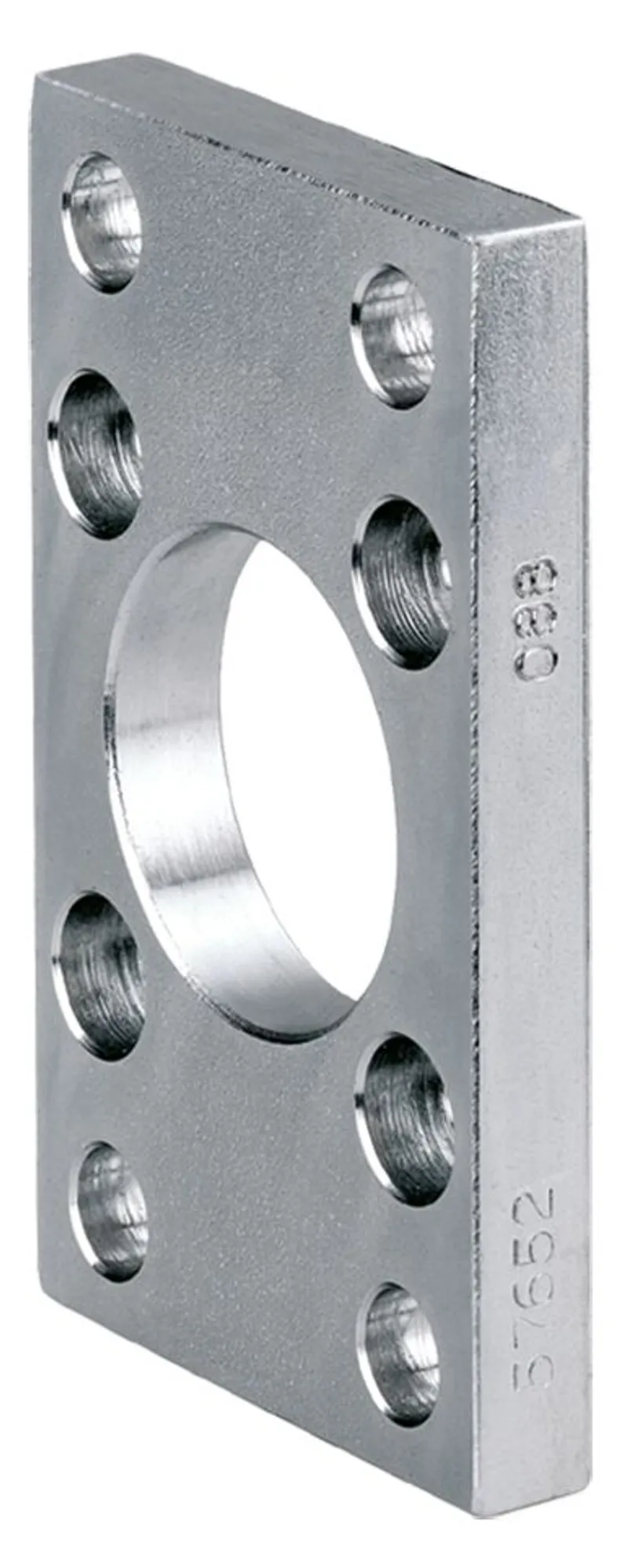

FLANGE MOUNTING EMC100

MPN: R15616A002
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15616A002?

Group 3, option 04

Material: Galvanized steel

Specifications

Fastening elements for electromechanical cylinders	Flange fastening
Nominal size [mm]	100
Weight [kg]	2.23
Material	Galvanized steel
Surface finishing	galvanized
Material of electromechanical cylinders	Steel

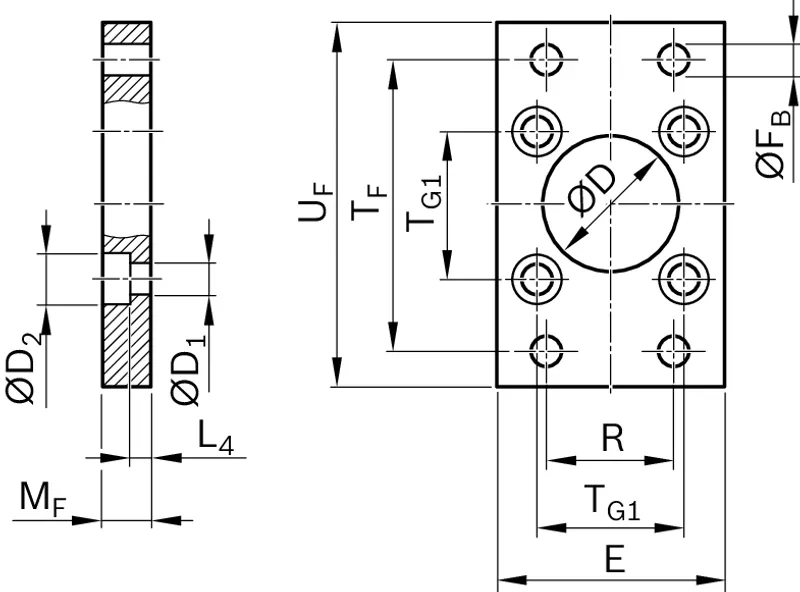

Dimension D H11 [mm]	65
Dimension D1 H13 [mm]	11
Dimension D2 H13 [mm]	18
Dimension E max. [mm]	120
Dimension FB [mm]	14
Dimension L4 [mm]	9
Dimension MF [mm]	16
Dimension MF tolerance [mm]	±0.1
Dimension R [mm]	75
Dimension R tolerance [mm]	±0.2
Dimension TF [mm]	150
Dimension TF tolerance [mm]	±0.2
Dimension TG1 [mm]	89
Dimension TG1 tolerance [mm]	±0.2
Dimension UF [mm]	186
Dimension UF tolerance [mm]	±0.2
