Bosch Rexroth R15615B104

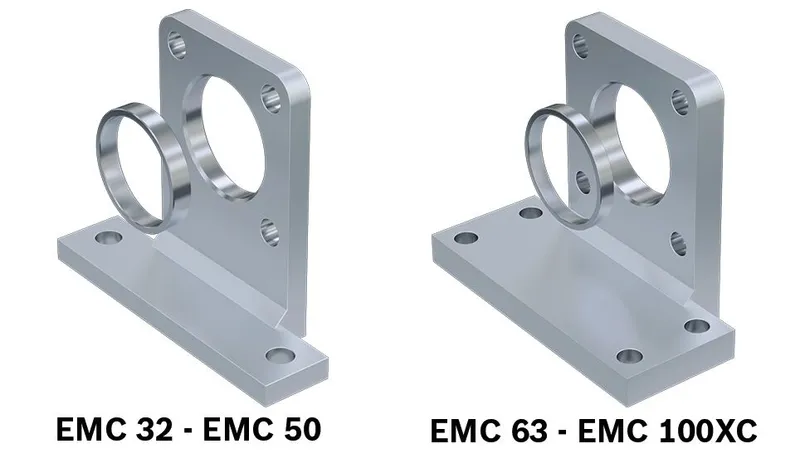

FOOT ANCHORAGE EMC80 BG

MPN: R15615B104
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15615B104?

Group 5, option 05

Material: Galvanized steel

Specifications

Fastening elements for electromechanical cylinders	Foot mounting
Nominal size [mm]	80
Weight [kg]	1.91
Footnote mass m	including the weight of the centering ring
Material	Galvanized steel
Surface finishing	galvanized
Material of electromechanical cylinders	Steel

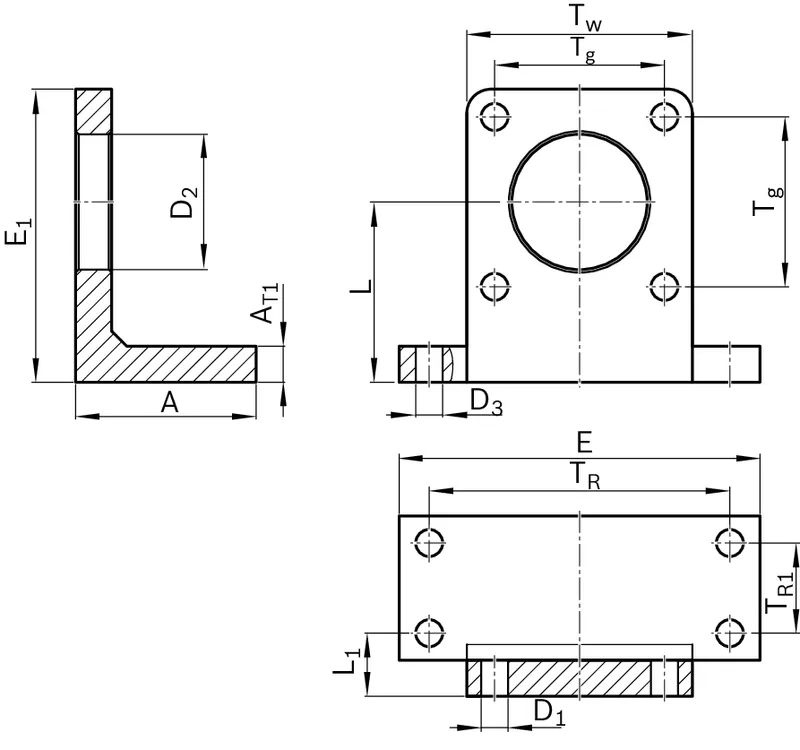

Dimension A (profiled rail systems) [mm]	62
Dimension A tolerance [mm]	±0.5
Dimension AT1 [mm]	13
Dimension AT1 tolerance [mm]	±0.5
Dimension D1 H13 [mm]	11
Dimension D2 H7 [mm]	55
Dimension D3 H13 [mm]	11
Dimension E [mm]	153
Dimension E tolerance [mm]	±0.5
Dimension E1 [mm]	129.5
Dimension E1 tolerance [mm]	±0.5
Dimension L [mm]	82
Dimension L tolerance [mm]	±0.1
Dimension L1 [mm]	27
Dimension Tg [mm]	72
Dimension TR [mm]	128
Dimension TR1 [mm]	25
Dimension TW [mm]	95
Dimension TW tolerance [mm]	±0.5
