Bosch Rexroth R15616A018

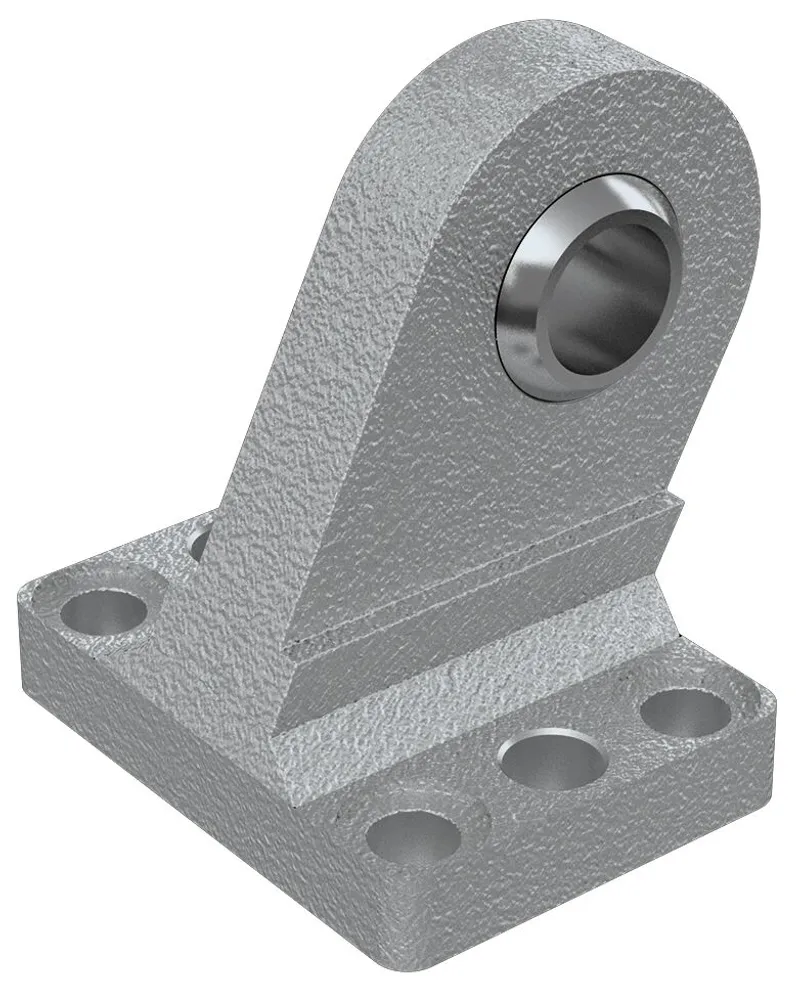

SPHERICAL PLAIN BEARING EMC100

MPN: R15616A018
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15616A018?

Group 6, option 03

Material: Galvanized cast iron with spheroidal graphite

Specifications

Fastening elements for electromechanical cylinders	Swivel bearing
Nominal size [mm]	100
Weight [kg]	1.4
Surface finishing	galvanized
Material of electromechanical cylinders	Cast iron with spheroidal graphite

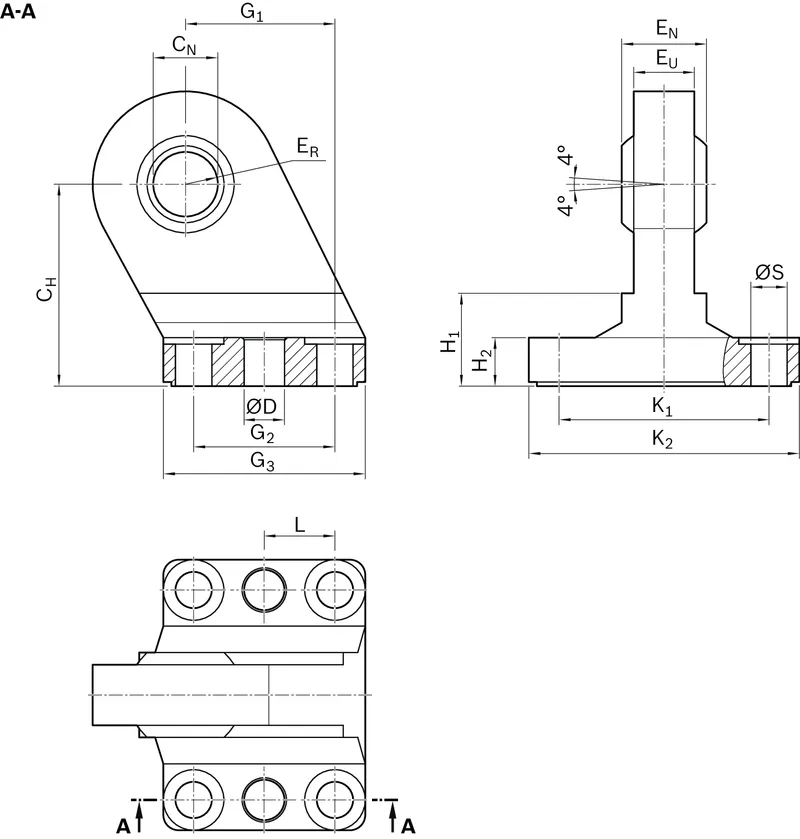

Dimension CH JS15 [mm]	71
Dimension CN H7 [mm]	20
Dimension D H11 [mm]	10
Dimension EN [mm]	25
Dimension EN tolerance [mm]	-1
Dimension ER max. [mm]	30
Dimension EU [mm]	18
Dimension G1 JS14 [mm]	55
Dimension G2 JS14 [mm]	50
Dimension G3 max. [mm]	70
Dimension H1 (profiled rail systems) [mm]	33
Dimension H2 (profiled rail systems) [mm]	13
Dimension H2 tolerance [mm]	±1.5
Dimension K1 JS14 [mm]	76
Dimension K2 max. [mm]	96
Dimension L [mm]	25
Dimension L tolerance [mm]	±0.2
Dimension S H13 [mm]	11
