Bosch Rexroth R15615B021

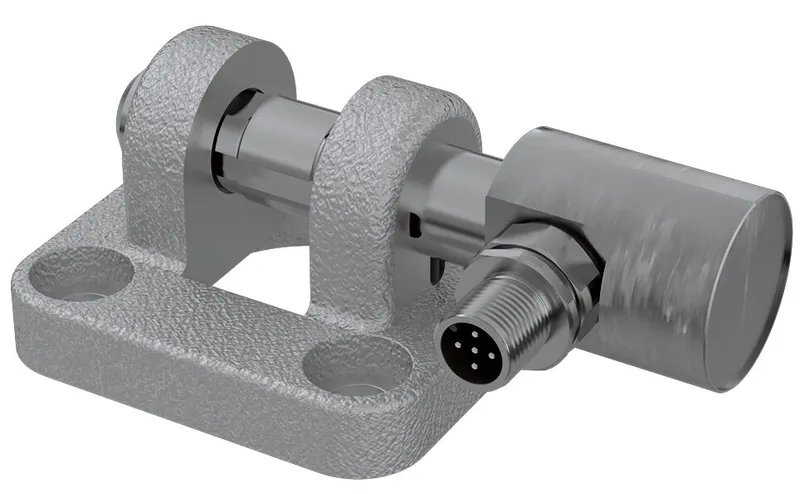

MEASURING ROD EMC80 BG

MPN: R15615B021
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15615B021?

Group 1, option 02; group 5, option 10

Material: Aluminum/galvanized spheroidal graphite iron

Specifications

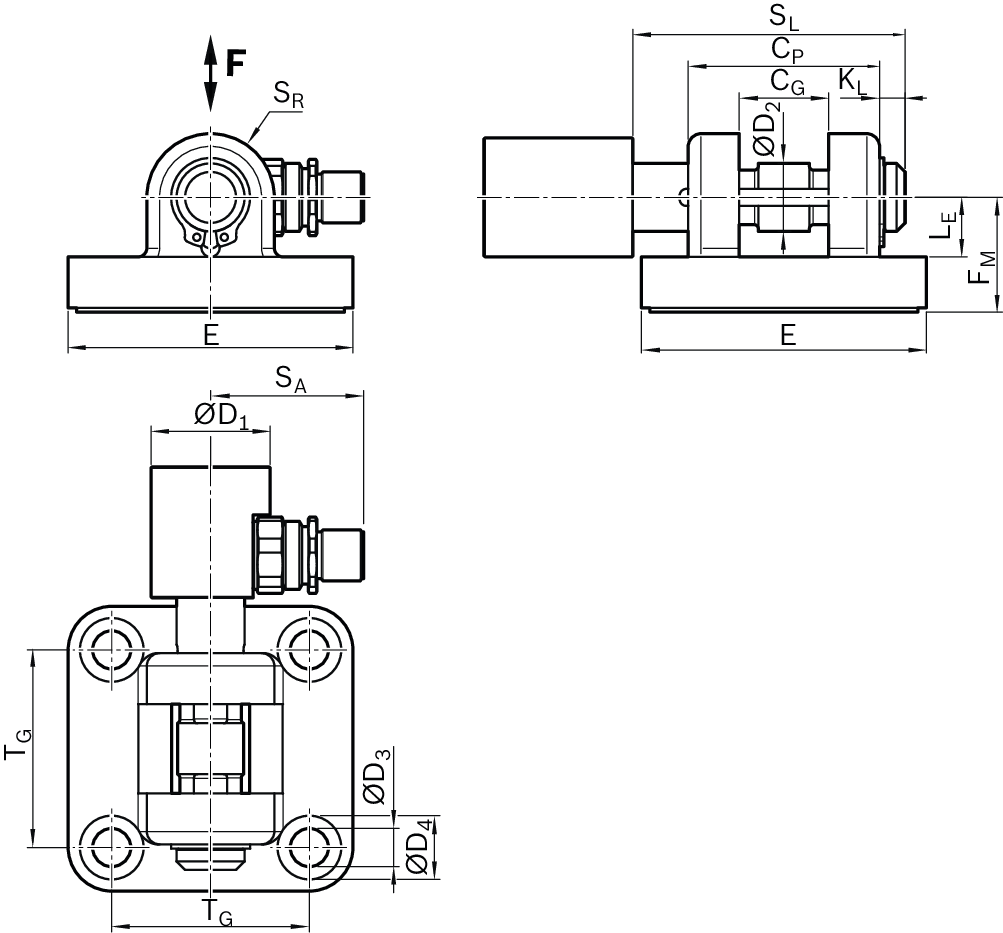

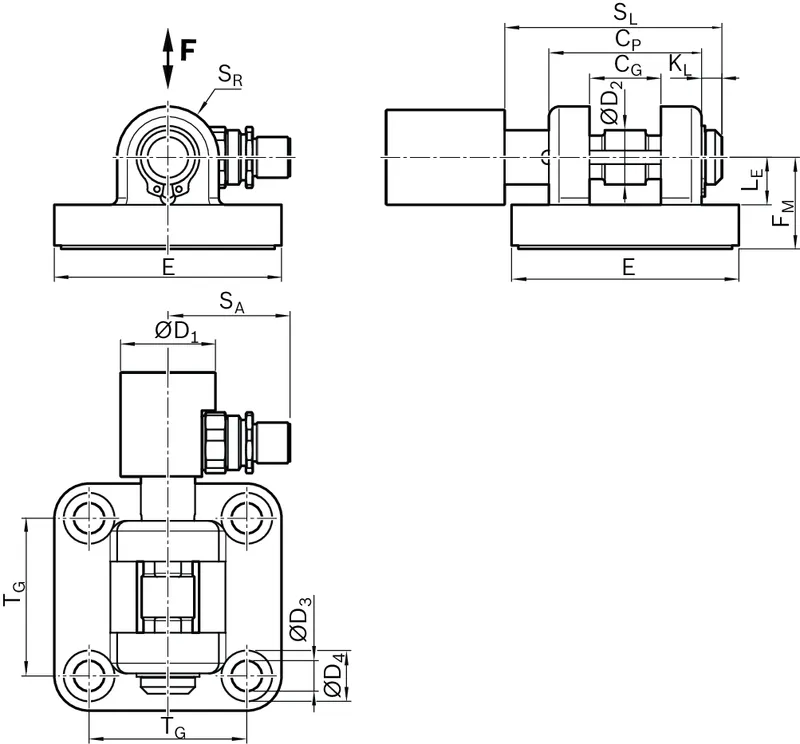

Fastening elements for electromechanical cylinders	Clevis mount
Nominal size [mm]	80
Weight [kg]	1.3
Surface finishing	forged
Pitch T guide rail [mm]	4
Material of electromechanical cylinders	Aluminum
Dimension CG D10 [mm]	25
Dimension CP d12 [mm]	65
Dimension D1 [mm]	28
Dimension D2 f8 [mm]	20
Dimension D3 [mm]	11
Dimension D4 [mm]	18
Dimension E [mm]	97
Dimension FM [mm]	36
Dimension FM tolerance [mm]	±0.2
Dimension KL [mm]	6.5
Dimension LE min. [mm]	16
Dimension SA [mm]	31.5
Dimension SL [mm]	74; 74
Dimension SR [mm]	20
Dimension T [mm]	4
Dimension T tolerance [mm]	±0.2
Dimension Tg [mm]	72
Dimension TG [mm]	72
Dimension TG tolerance [mm]	±0.2
Dimension hex socket head cap screws DIN 912	M10x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M10
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20
