Bosch Rexroth R15615A017

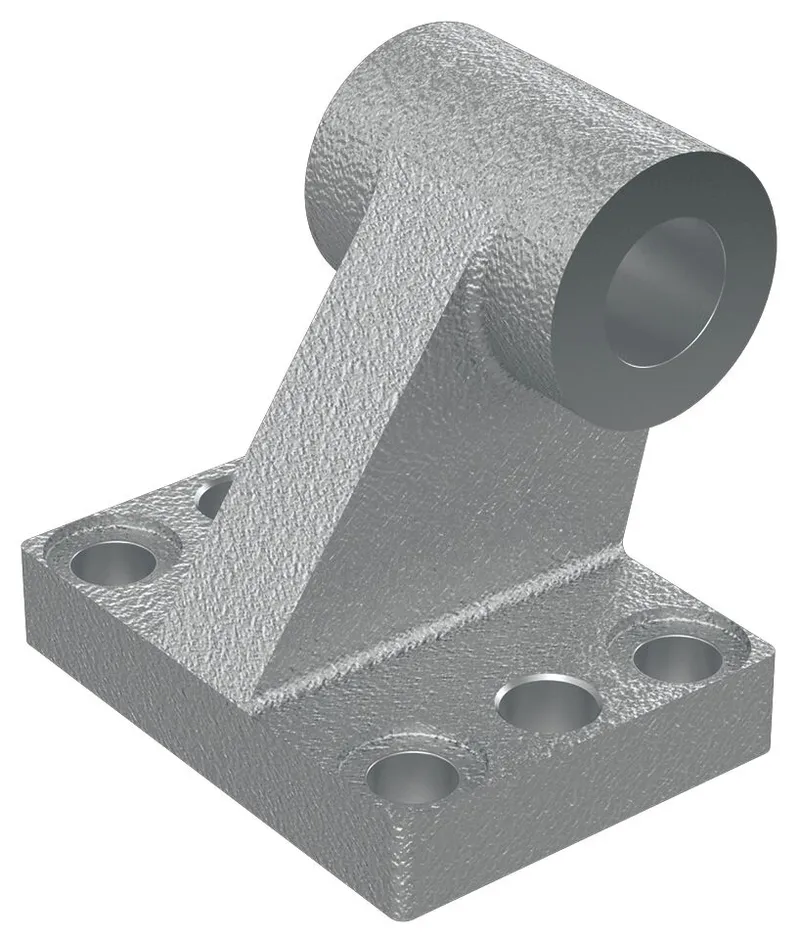

BEARING PEDESTAL EMC80

MPN: R15615A017
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R15615A017?

Group 6, option 01

Material: Galvanized cast iron with spheroidal graphite

Counterpart to clevis mount group 5, option 07

Specifications

Fastening elements for electromechanical cylinders	Bearing block
Nominal size [mm]	80
Weight [kg]	0.92
Surface finishing	galvanized
Pitch T guide rail [mm]	6
Material of electromechanical cylinders	Cast iron with spheroidal graphite

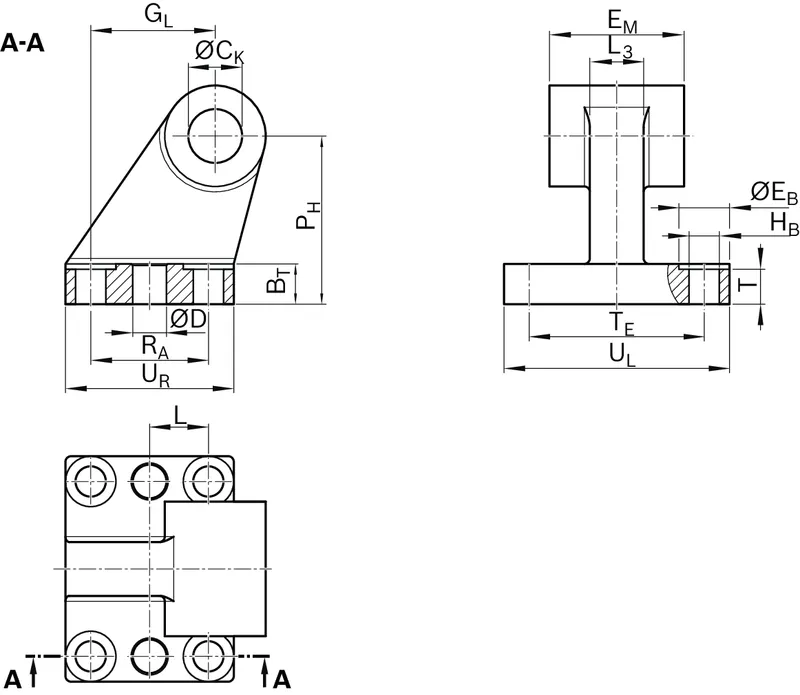

Dimension BR [mm]	15
Dimension BT [mm]	14
Dimension CK H9 [mm]	16
Dimension D H11 [mm]	10
Dimension EB H13 [mm]	15
Dimension EM [mm]	50
Dimension GL [mm]	47
Dimension HB H13 [mm]	9
Dimension L [mm]	20
Dimension L tolerance [mm]	±0.2
Dimension L3 [mm]	20
Dimension PH JS15 [mm]	63
Dimension RA JS14 [mm]	40
Dimension T [mm]	6
Dimension TE JS14 [mm]	66
Dimension TL tolerance [mm]	-0.2; -0.6
Dimension UL [mm]	86
Dimension UR [mm]	60
