Bosch Rexroth R107824020

LINEAR-SET LSRSE-40-DD

MPN: R107824020
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

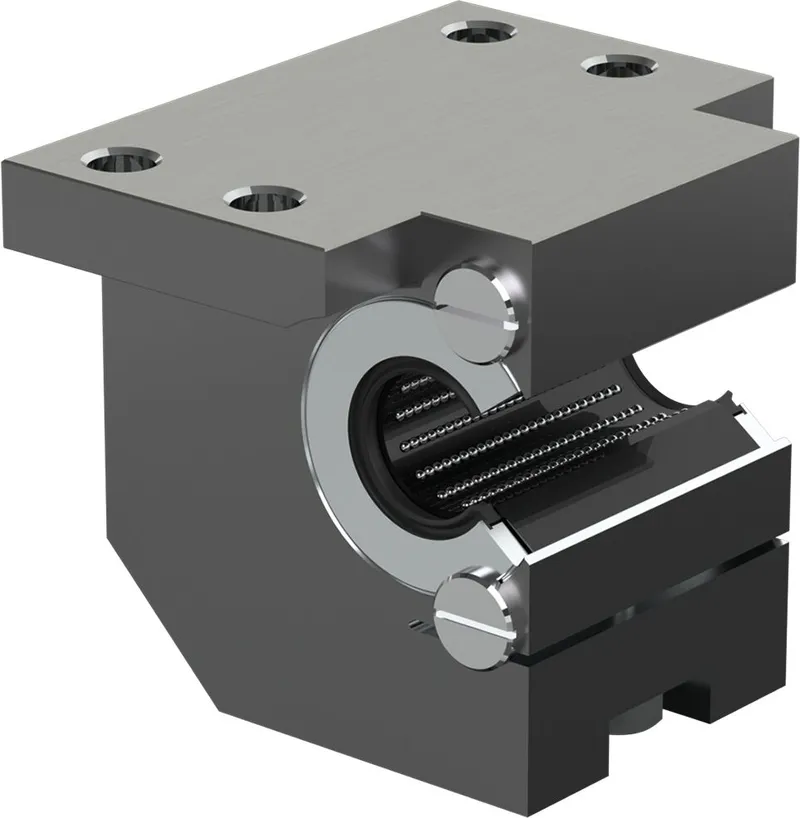

What is the Bosch Rexroth R107824020?

Linear set (steel)

With radial LB, with side opening, adjustable

Shaft diameter d = 40

With two seals

Version: Standard

Precision housing with side opening (steel)

radial linear bushing

Two wiper seals

Relubricatable

Specifications

Shaft diameter d [mm]	40.0
Format of linear bushings	SE - With side opening, adjustable
Series	Radial, with side opening
Type	Linear set
Dynamic load capacity C [N]	13900.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading in the arrow direction F<sub>H1</sub> or F<sub>H2</sub>.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Radial clearance	Comes with an h5 shaft (lower limit) and set to zero-clearance before delivery
Outer diameter D [mm]	75.0
Permissible ambient temperature (min. ... max.)	-20 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	short-time 100 °C
Weight [kg]	13.19
Static load capacity C0 [N]	16000.0
Note: static load capacity C0	The load capacities apply for the main direction of loading in the arrow direction F<sub>H1</sub> or F<sub>H2</sub>.
Breakaway force [N]	32
Product information	Please ask for delivery time!

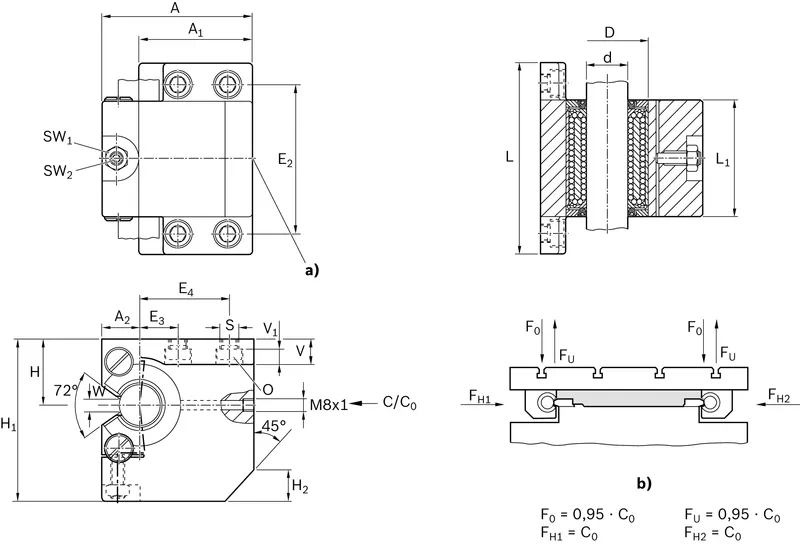

Dimension A js16 [mm]	135
Dimension A1 js16 [mm]	100
Dimension A2 js16 [mm]	35
Dimension D [mm]	75
Dimension E2 [mm]	142
Dimension E3 (profiled rail systems) [mm]	40
Dimension E4 [mm]	76
Dimension H [mm]	60.0
Dimension H1 js16 [mm]	145
Dimension H2 js16 [mm]	35
Dimension L js16 [mm]	180
Dimension L1 [mm]	109
Dimension O thread diameter x lead [mm]	M16x40
Dimension S [mm]	17.5
Dimension SW1 [mm]	19
Dimension SW2 [mm]	6
Dimension V js16 [mm]	25
Dimension V1 [mm]	15
Dimension W [mm]	19.5
