LINEAR-SET LSRSE-60-DD

Name: Bosch Rexroth R107826020 – LINEAR-SET LSRSE-60-DD
Brand: Bosch Rexroth
SKU: R107826020

MPN: R107826020 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear sets with linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R107826020 be shipped?

R107826020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R107826020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R107826020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R107826020, subject to availability and destination.

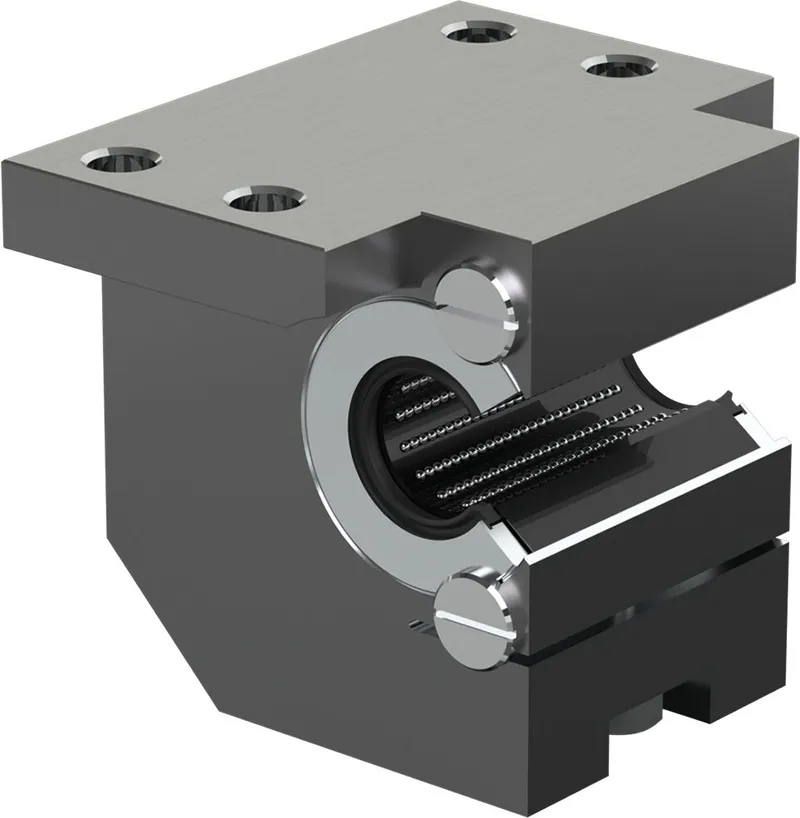

Linear set (steel)

With radial LB, with side opening, adjustable

Shaft diameter d = 60

With two seals

Version: Standard

Precision housing with side opening (steel)

radial linear bushing

Two wiper seals

Relubricatable

Specifications

Shaft diameter d [mm]	60.0
Format of linear bushings	SE - With side opening, adjustable
Series	Radial, with side opening
Type	Linear set
Dynamic load capacity C [N]	29500.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading in the arrow direction F<sub>H1</sub> or F<sub>H2</sub>.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Radial clearance	Comes with an h5 shaft (lower limit) and set to zero-clearance before delivery
Outer diameter D [mm]	110.0
Permissible ambient temperature (min. ... max.)	-20 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	short-time 100 °C
Weight [kg]	40
Static load capacity C0 [N]	34100.0
Note: static load capacity C0	The load capacities apply for the main direction of loading in the arrow direction F<sub>H1</sub> or F<sub>H2</sub>.
Breakaway force [N]	48
Product information	Please ask for delivery time!

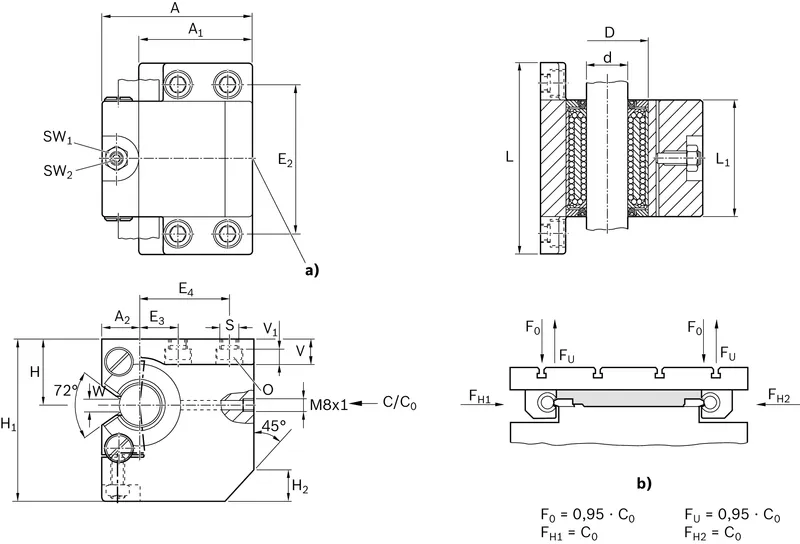

Dimension A js16 [mm]	200
Dimension A1 js16 [mm]	150
Dimension A2 js16 [mm]	50
Dimension D [mm]	110
Dimension E2 [mm]	215
Dimension E3 (profiled rail systems) [mm]	60
Dimension E4 [mm]	115
Dimension H [mm]	85.0
Dimension H1 js16 [mm]	205
Dimension H2 js16 [mm]	55
Dimension L js16 [mm]	275
Dimension L1 [mm]	163
Dimension O thread diameter x lead [mm]	M24x60
Dimension S [mm]	26
Dimension SW1 [mm]	30
Dimension SW2 [mm]	10
Dimension V js16 [mm]	35
Dimension V1 [mm]	20.5
Dimension W [mm]	29
