Bosch Rexroth R107625020

LINEAR-SET LSRE-50-DD

MPN: R107625020
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

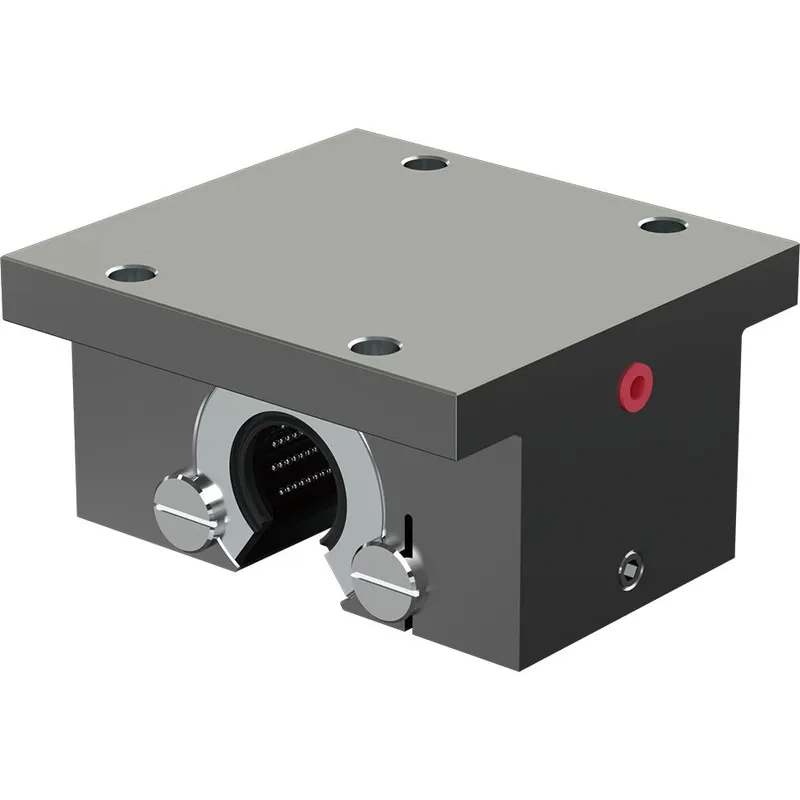

What is the Bosch Rexroth R107625020?

Linear set (steel)

With radial LB, open, adjustable

Shaft diameter d = 50

With two seals

Version: Standard

Precision housing (steel)

radial linear bushing

Two wiper seals

Relubricatable

Specifications

Shaft diameter d [mm]	50.0
Format of linear bushings	OE - Open, adjustable
Series	Radial, open
Type	Linear set
Dynamic load capacity C [N]	20800.0
Note: dynamic load capacity C	The stated load capacities apply for the main direction of loading ρ = 0°.
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	2.0
Radial clearance	Comes with an h5 shaft (lower limit) and set to zero-clearance before delivery
Outer diameter D [mm]	90.0
Permissible ambient temperature (min. ... max.)	-20 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	short-time 100 °C
Weight [kg]	20.04
Static load capacity C0 [N]	24400.0
Note: static load capacity C0	The stated load capacities apply for the main direction of loading ρ = 0°.
Breakaway force [N]	40
Product information	Please ask for delivery time!

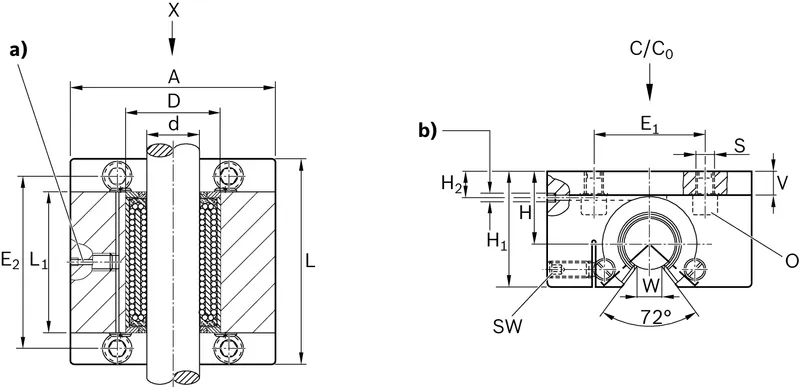

Dimension A js16 [mm]	200
Dimension D [mm]	90
Dimension E1 [mm]	110
Dimension E2 [mm]	170
Dimension H [mm]	70.0
Dimension H1 js16 [mm]	110
Dimension L js16 [mm]	200
Dimension L1 [mm]	138
Dimension O thread diameter x lead [mm]	M16x50
Dimension S H13 [mm]	17.5
Dimension SW [mm]	8
Dimension V js16 [mm]	23
Dimension W [mm]	24.5
